Derale 6 Pass 13" Series 7000 Transmission Cooler Kit | 15,500 GVW, Import/Truck | 13106
Regular Price
$77.65

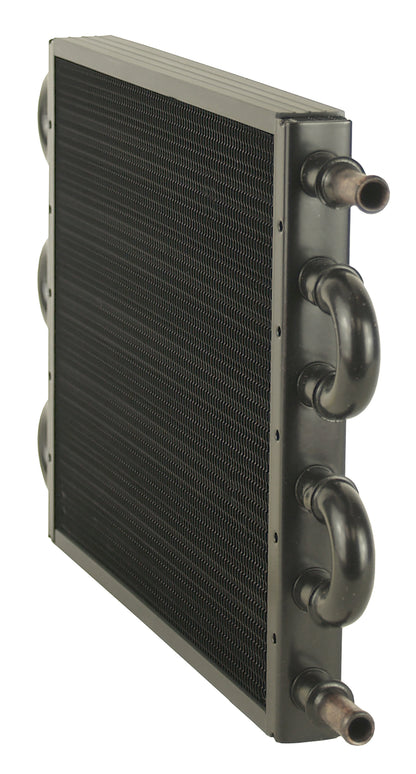

The Derale 13106 is a 6 pass 13 inch Series 7000 copper and aluminum transmission cooler kit sized for imports and today's smaller, highly-stressed trucks and SUVs. It uses copper tubing expanded into aluminum cooling fins and carries an 11/32 inch barb inlet. Rated for a 15,500 pound GVW and 6,000 BTU per hour, it comes as a complete kit with the mounting hardware and fittings needed to install.
Specifications:
- Type: Series 7000 transmission cooler kit
- Cooler style: Tube and fin, 6 pass, 13 inch
- Construction: Copper tube with aluminum fin
- Inlet size: 11/32 inch barb
- GVW rating: 15,500 lbs
- Cooling capacity: 6,000 BTU per hour
- Fluid capacity: 6 oz

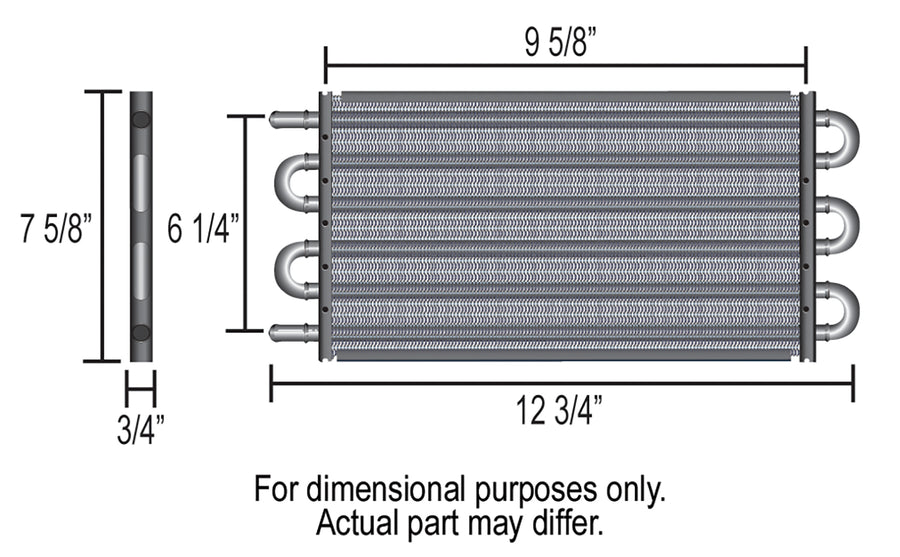

- Width: 12-3/4 inches
- Height: 7-5/8 inches
- Depth: 3/4 inch
- Mounting: 9-5/8 inches
- Hose: 11/32 inch, 4 ft included
- Included: Complete transmission cooler hardware kit
- Application: Imports and smaller trucks and SUVs
- Part number: 13106
FAQ
What vehicles is the Derale 13106 for?
It is sized for imports and smaller trucks and SUVs and is rated for a 15,500 pound GVW.
What inlet and hose size does the 13106 use?
It uses 11/32 inch barb inlets and includes 4 feet of 11/32 inch hose.
What is included with the 13106?
It comes as a complete kit with the cooler, hose, and all mounting hardware.
What is the 13106 made of?
It uses copper tubing expanded into aluminum cooling fins.
