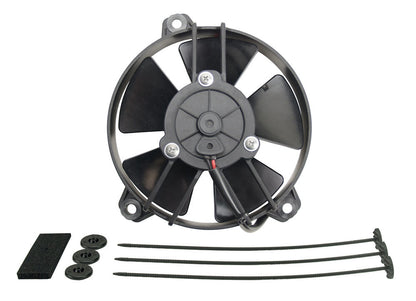

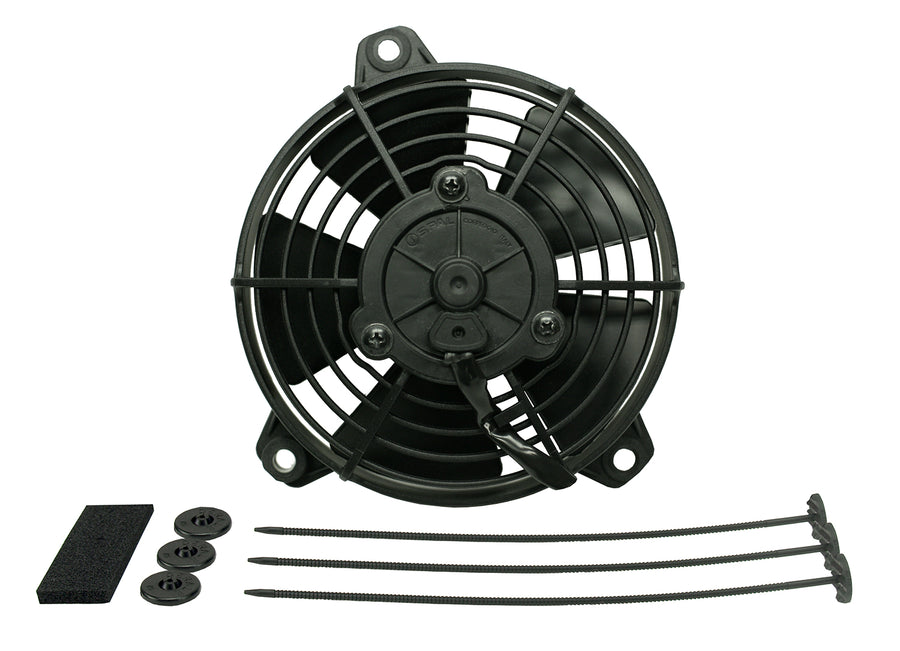

The Derale 16105 is a 5" high output electric puller fan from the H.O. Extreme series. Its five wide paddle-style blades move 315 CFM while drawing only 3.6 amps, and the compact low-profile body fits where larger fans cannot. The sealed motor is IP68 certified, rated waterproof and dustproof, and the fan uses a three-hole mount. It installs on the engine side as a puller and ships with a mounting kit and illustrated instructions.
Specifications:
- Fan diameter: 5"
- Airflow: 315 CFM
- Amp draw: 3.6 A
- Configuration: puller only (engine side), not reversible
- Blades: five wide paddle blades
- Depth: 1-1/4" (2-1/4" overall)
- Motor: IP68 sealed, waterproof and dustproof
- Mount: three-hole; mounting kit included
- Part number: 16105
FAQ
How much air does the Derale 16105 fan move?
It moves 315 CFM and draws 3.6 amps.
Is it a puller or pusher fan?
It is a puller fan, mounted on the engine side, and is not reversible.
What makes it suited to tight spaces?
It is a compact 5" fan only about 1-1/4" deep, so it fits where larger fans cannot.
Is the motor sealed?
Yes, the motor is IP68 certified, waterproof and dustproof.
