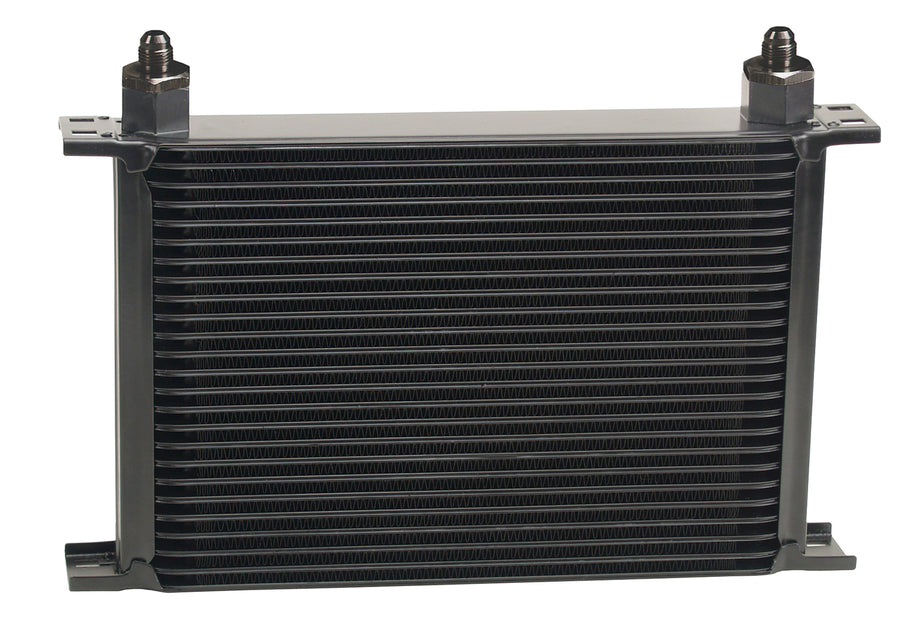

The Derale 25 Row Series 10000 stack plate fluid cooler is an all-aluminum, furnace-brazed heat exchanger for engine oil, transmission fluid, or fuel. Its stacked plate core uses internal turbulators to move heat out of the fluid with minimal pressure drop, and the 25-row core is rated at 46,000 BTU per hour. The cooler has -6AN ports and a durable black powder-coat finish.
Specifications:
- Cooler style: Series 10000 stacked plate
- Rows: 25
- Cooling: 46,000 BTU/hr
- Construction: all-aluminum, furnace-brazed, 2" plates with internal turbulators
- Ports: -6AN
- Core dimensions: 13" W x 8-5/16" H
- Finish: black powder coat
- Cools: engine oil, transmission fluid, or fuel
- Part number: 52506
FAQ
What is the Derale 52506 cooler used for?
It is a universal stacked plate fluid cooler for engine oil, transmission fluid, or fuel cooling.
What port size does it use?
It uses -6AN ports.
How much cooling does it provide?
The 25-row core is rated at 46,000 BTU per hour.
How is it built?
It is an all-aluminum, furnace-brazed stacked plate cooler with internal turbulators and a black powder-coat finish.
