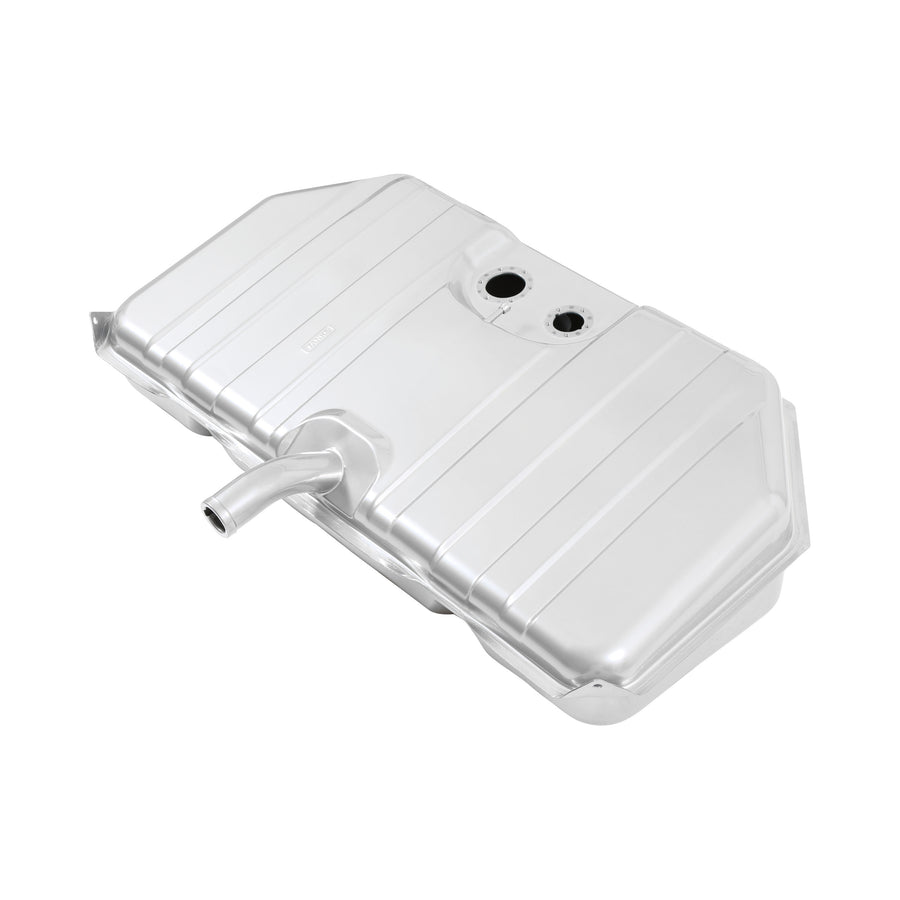

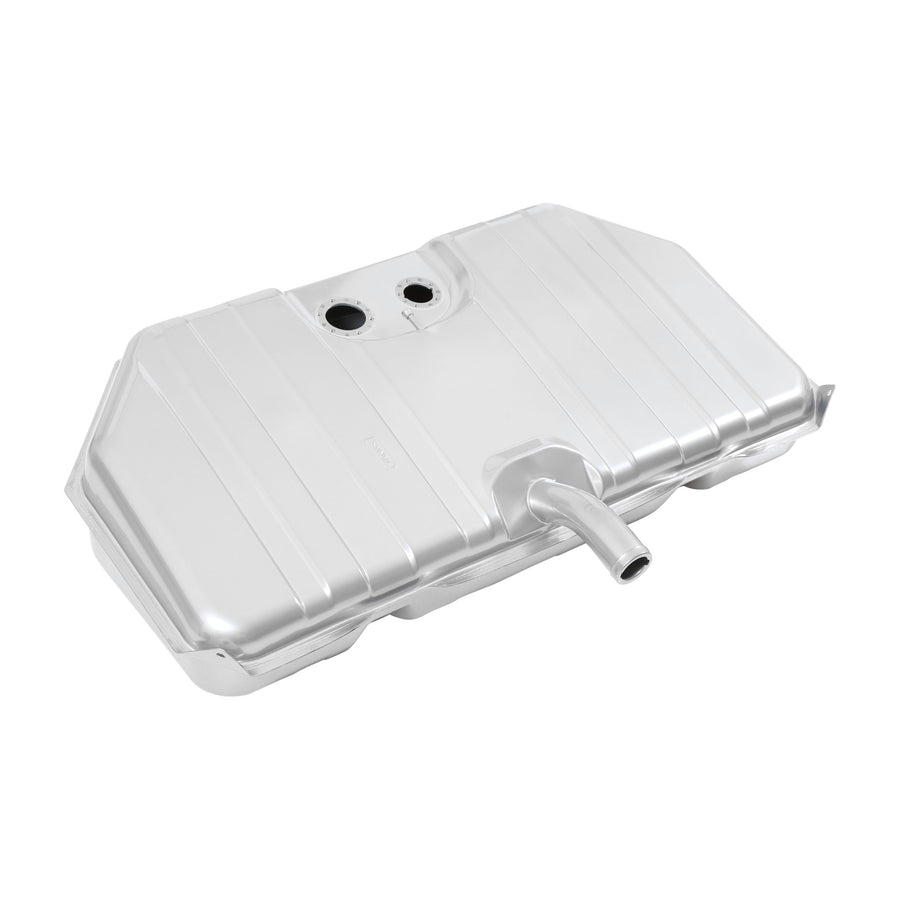

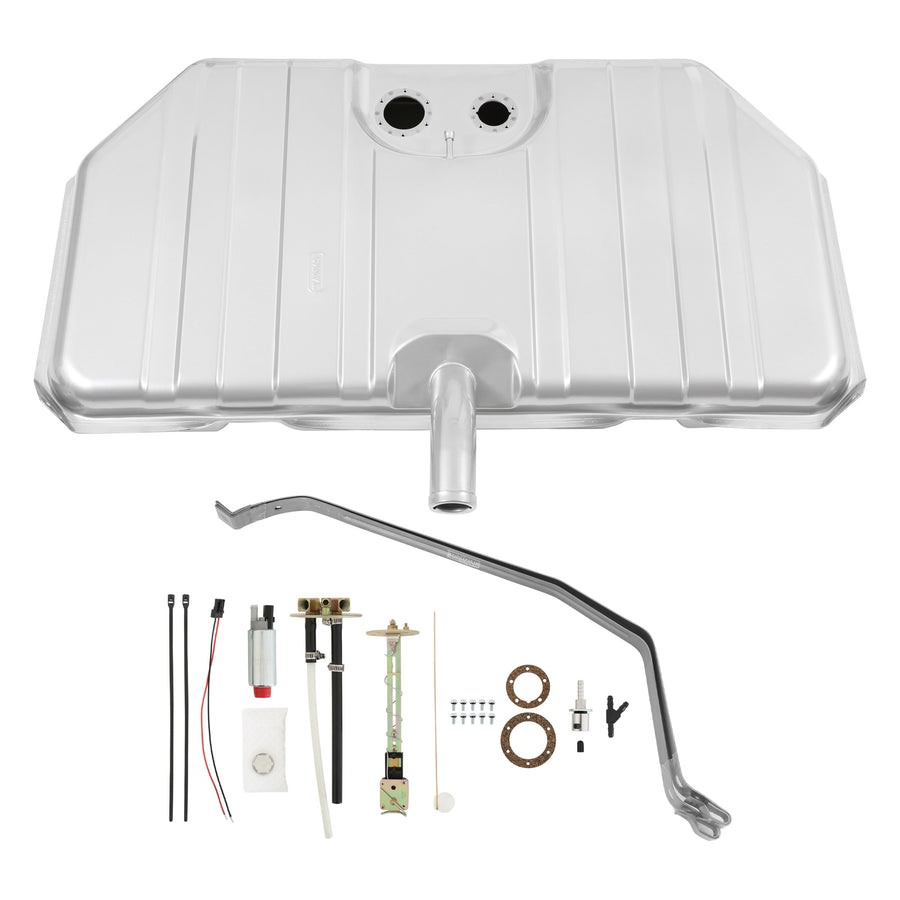

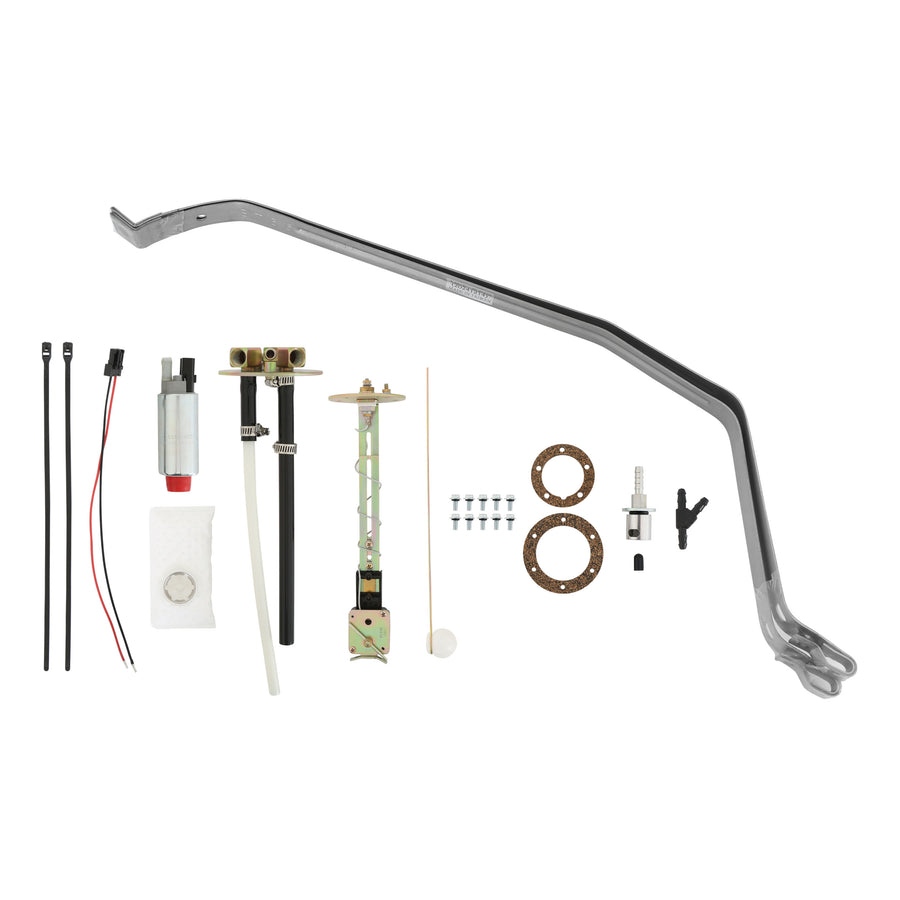

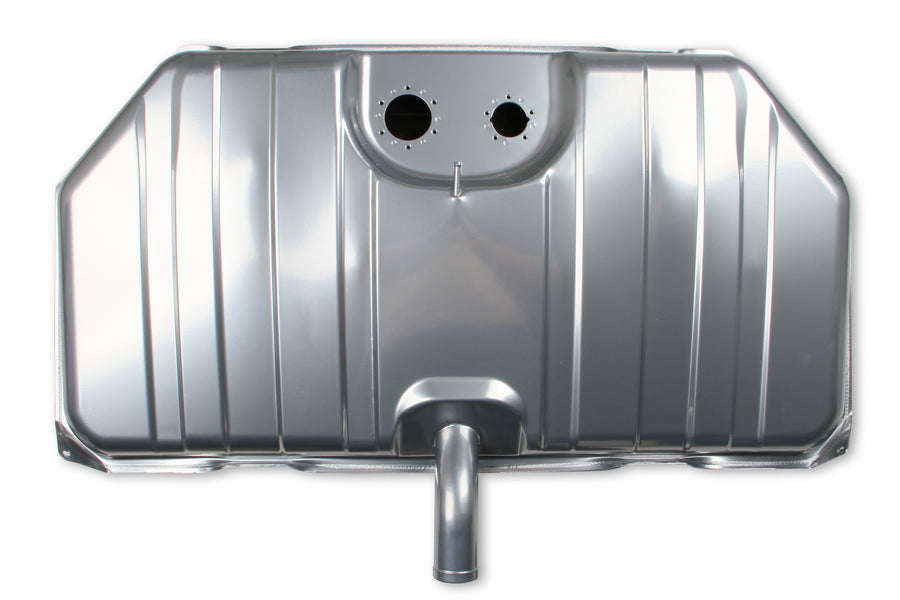

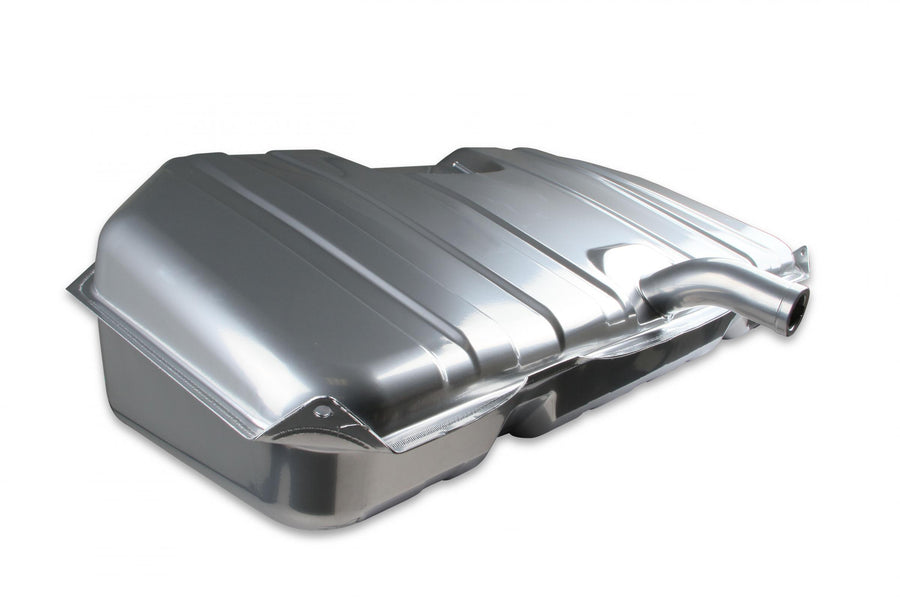

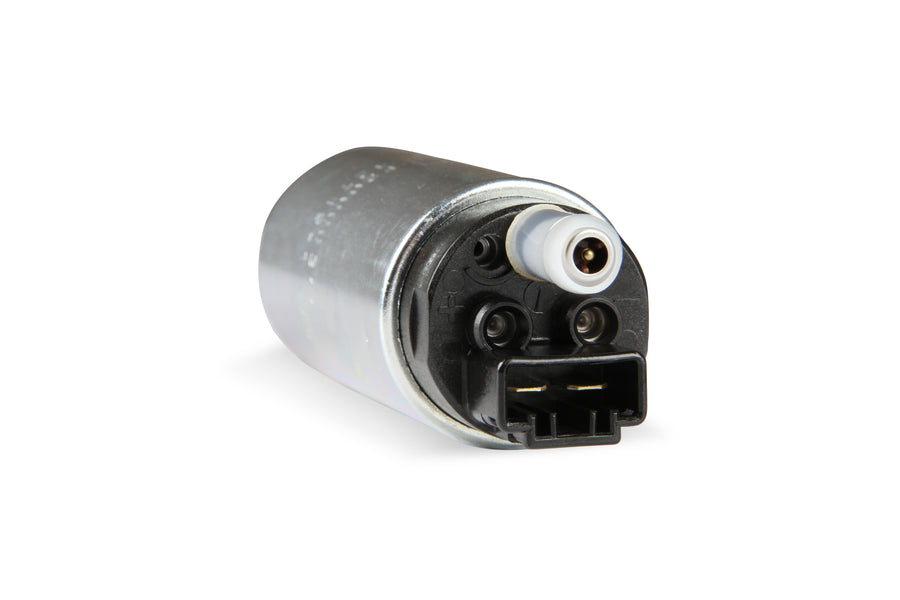

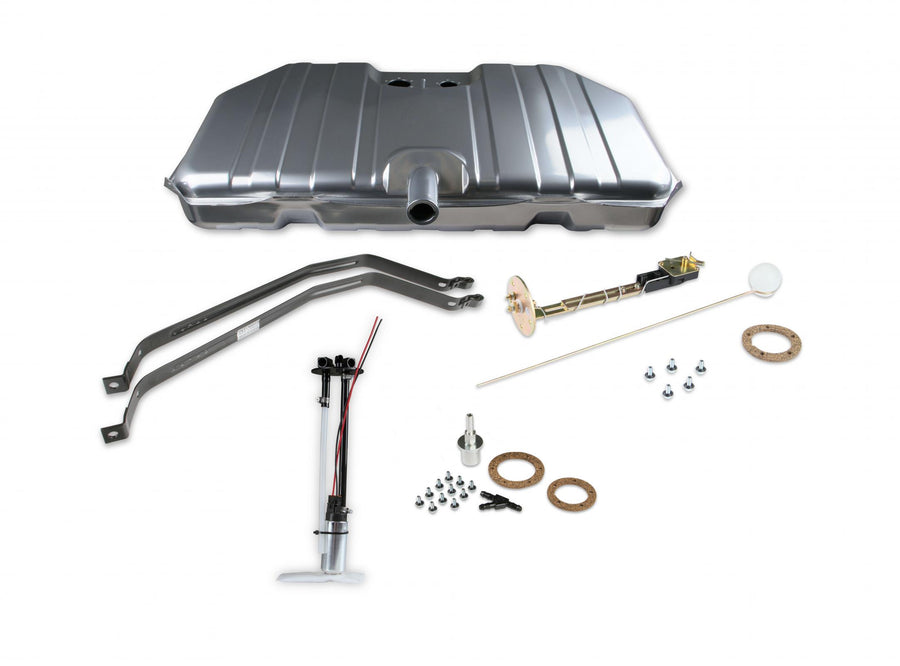

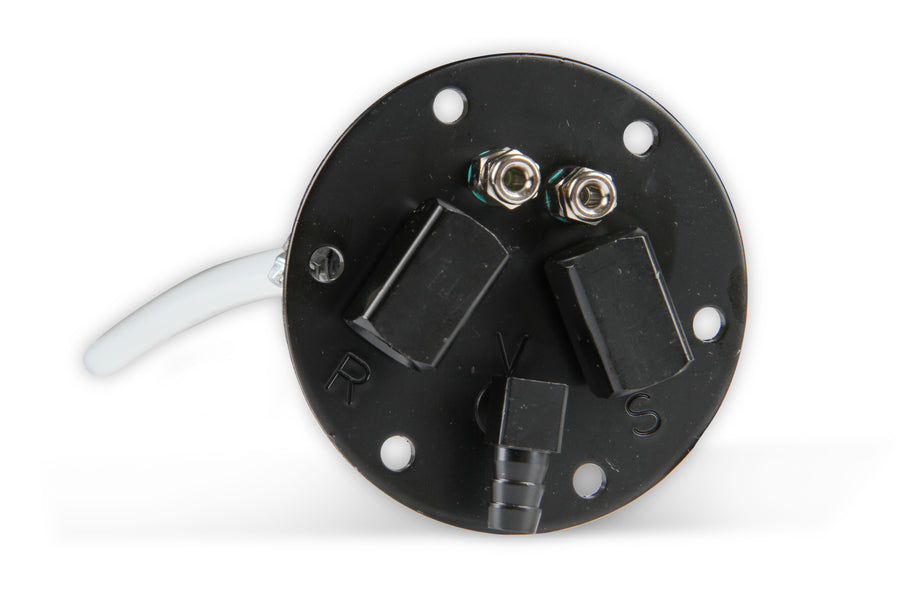

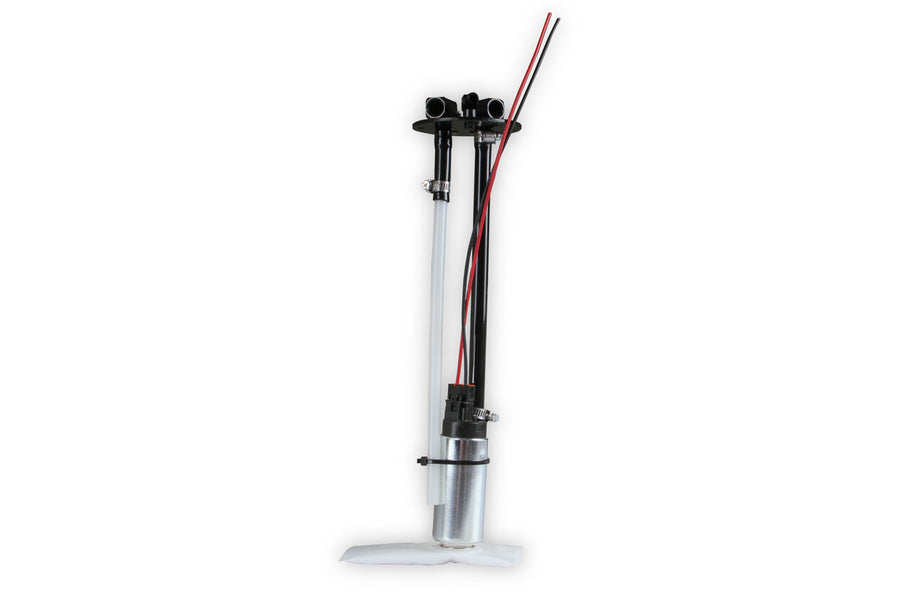

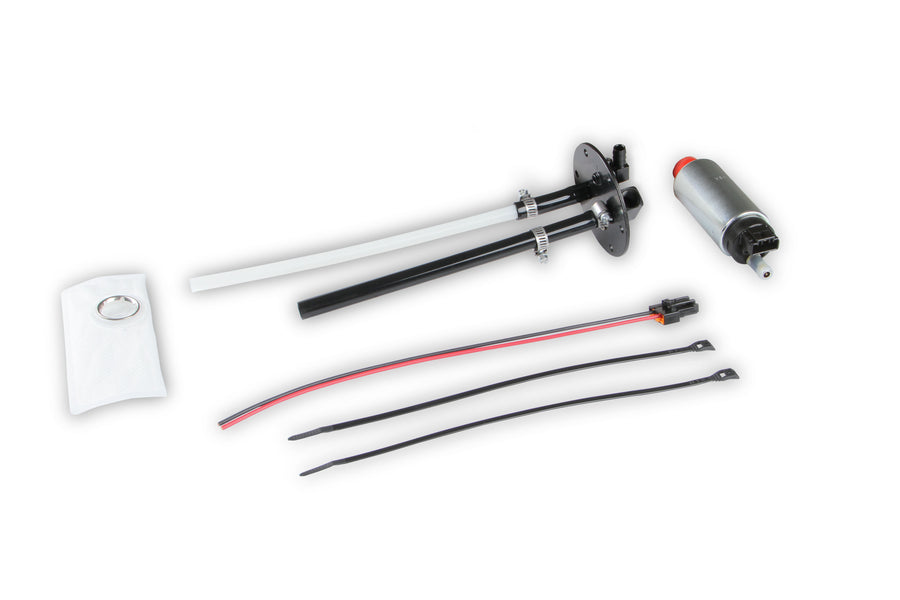

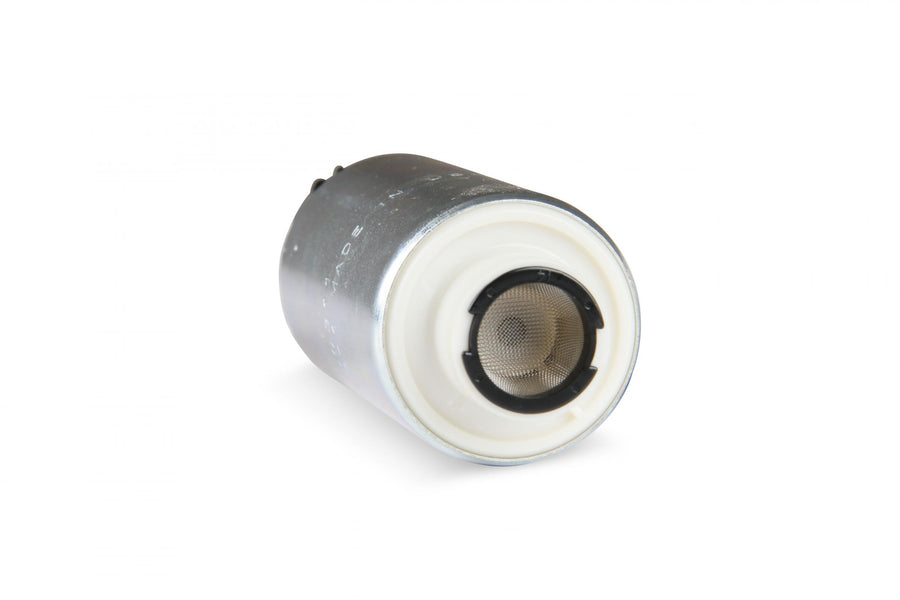

This notched-corner fuel tank kit is a direct fit for 1969 Chevrolet Camaro and Pontiac Firebird models running mini-tub rear suspension setups. The front corners are narrowed to 27" for up to 345-width tire and 3" exhaust clearance, and the tank is built 1" deeper than stock to help recover the fuel capacity lost to the notch. The kit includes the tank, a 255 LPH in-tank fuel pump, a fuel level sender, and new tank straps.
Specifications:
- Application: 1969 Chevrolet Camaro / Pontiac Firebird (notched front corners)
- Tank Capacity: 18 gallons
- Maximum Fuel Flow Rating: 255 LPH

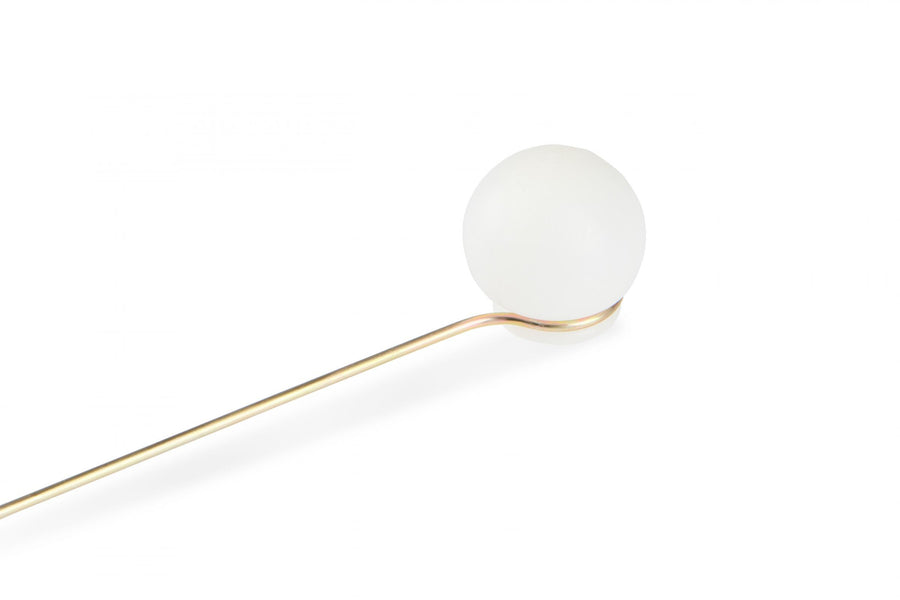

- Fuel Sending Unit: 0-90 Ohms
- Fuel System Type: Gasoline
- Finish: Powder-coated Steel
- Drain Plug: No

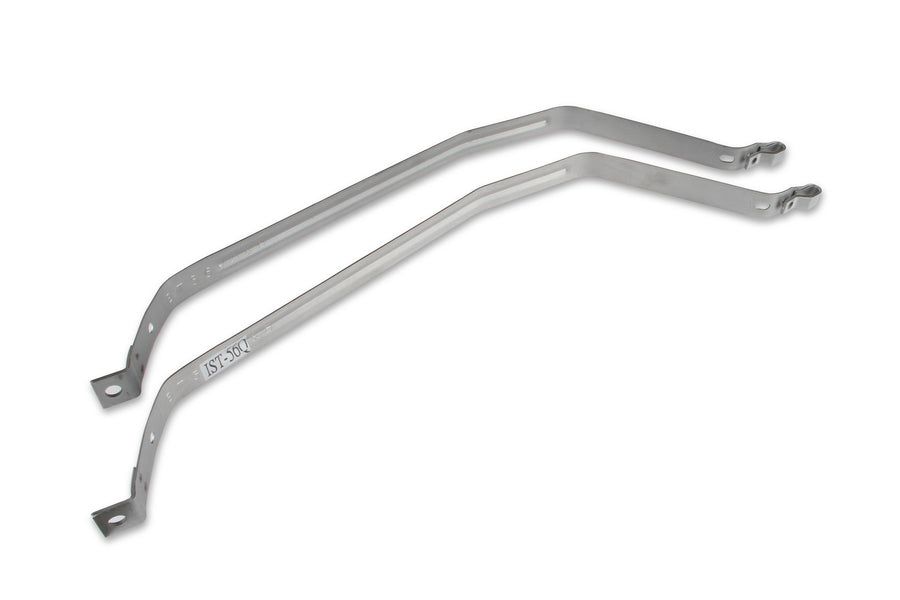

- New Tank Straps Included: Yes
- Part Number: 19-103

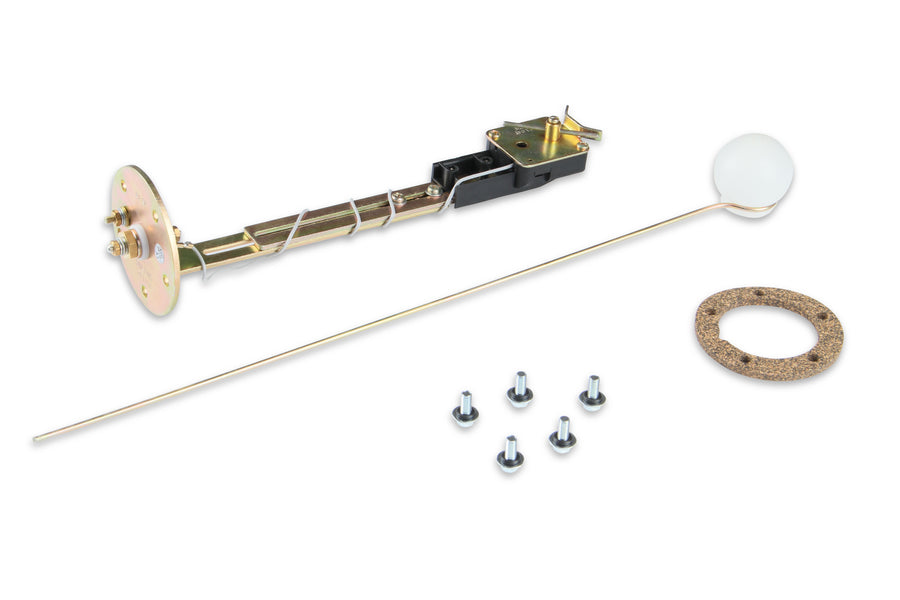

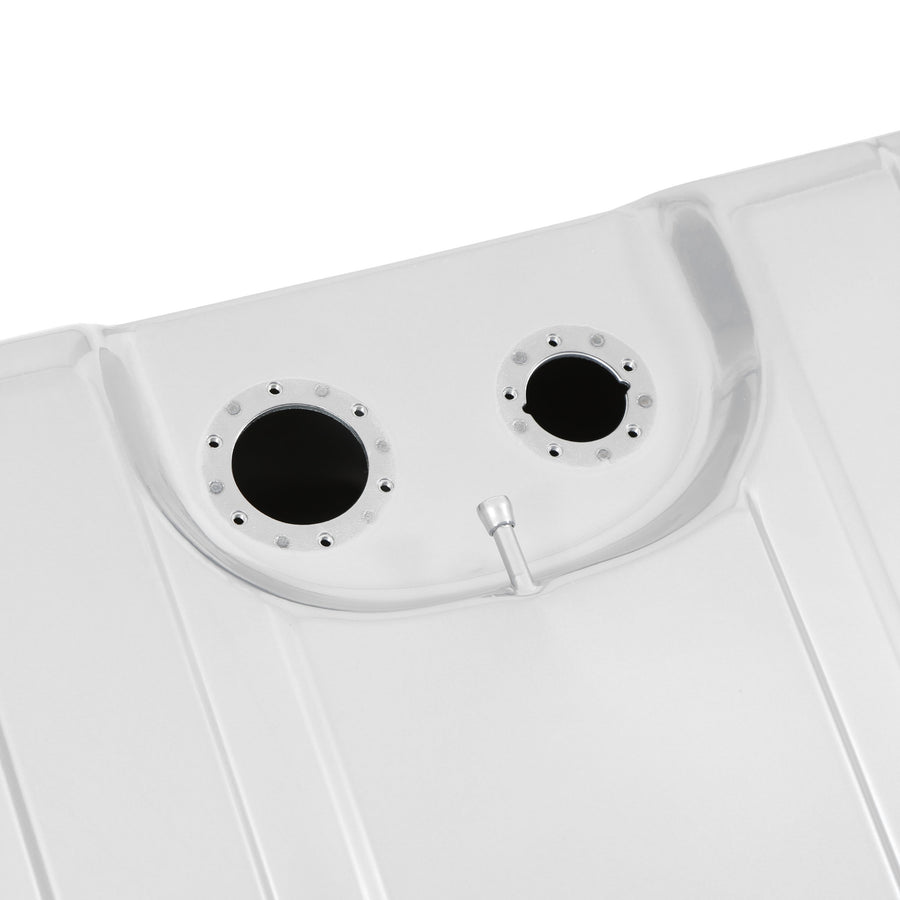

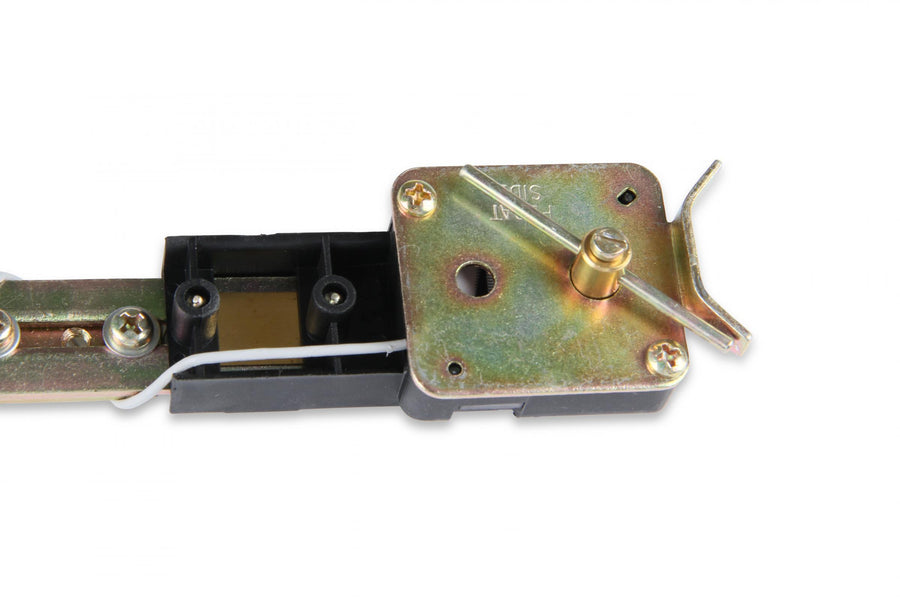

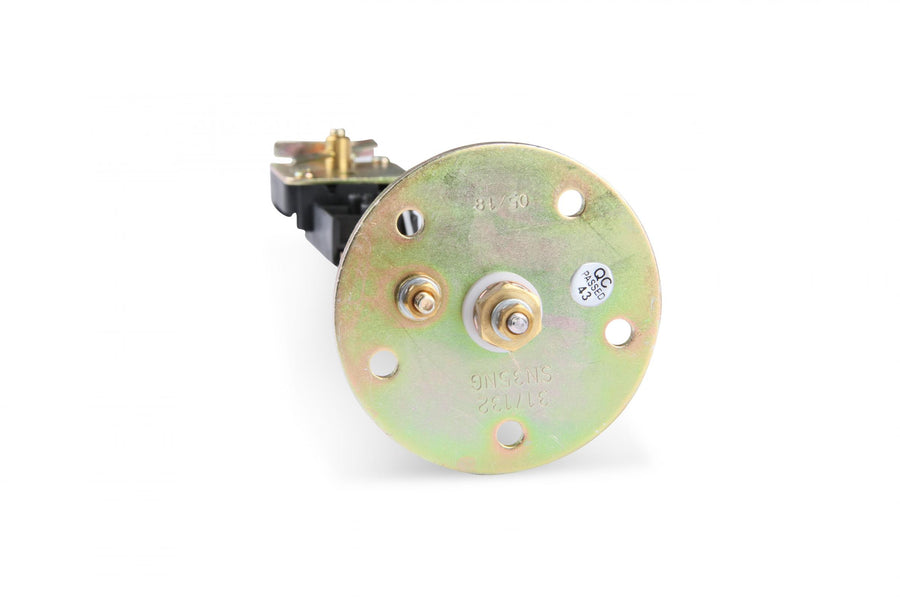

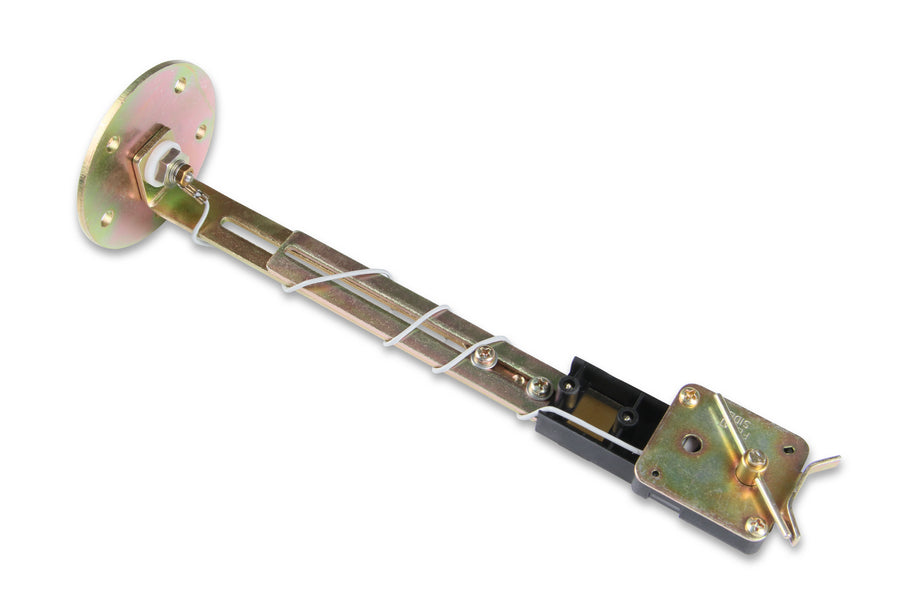

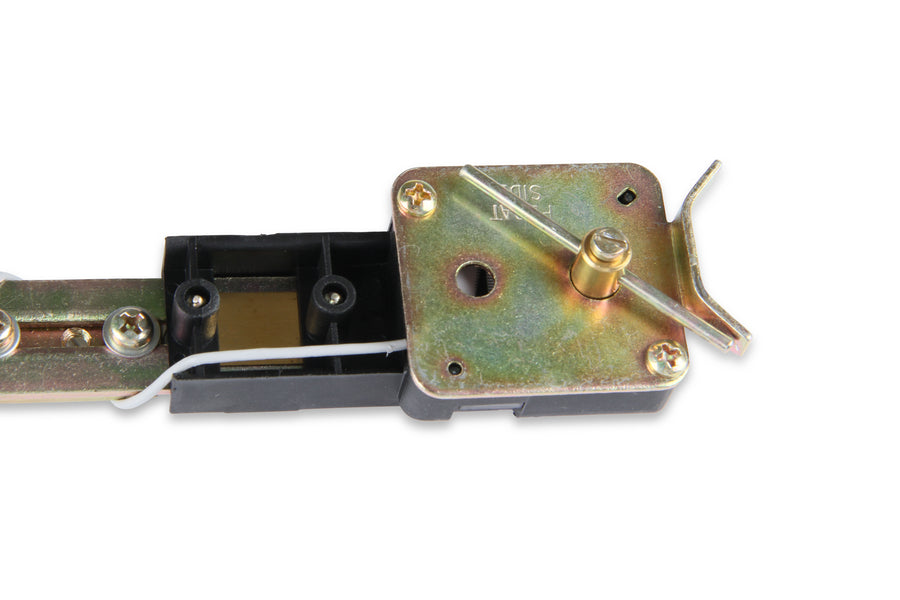

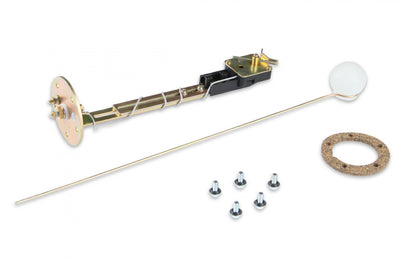

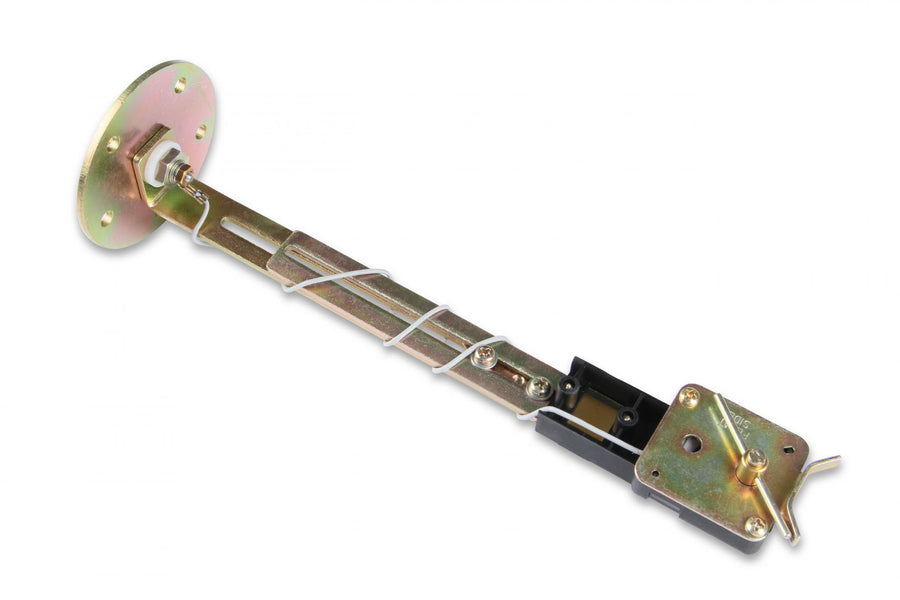

When installing the sending unit, rotate it until the mounting holes align with the tank's flange holes.
Compliance: This part is legal for sale and use on Racing Use Only Vehicles — competition vehicles that are not registered and never operated on the street. It is against the law to install this part on an Emissions Controlled Vehicle (1966-and-newer California-certified or 1968-and-newer federally certified vehicles).
FAQ
Why does this tank have notched front corners?
The front corners are narrowed to 27" to clear up to a 345-width tire and 3" exhaust, making it well suited for mini-tub applications.
Does the notch reduce fuel capacity?
The tank is built 1" deeper than the stock design to help offset the capacity lost to the notched corners.
What vehicles does this tank fit?
This tank fits 1969 Chevrolet Camaro and 1969 Pontiac Firebird.
Is this tank legal for street use?
No. It's legal for sale and use only on Racing Use Only vehicles — competition vehicles that are not registered and never operated on the street. Installing it on an emissions-controlled street vehicle (1966-and-newer California-certified or 1968-and-newer federally certified) is against the law.
