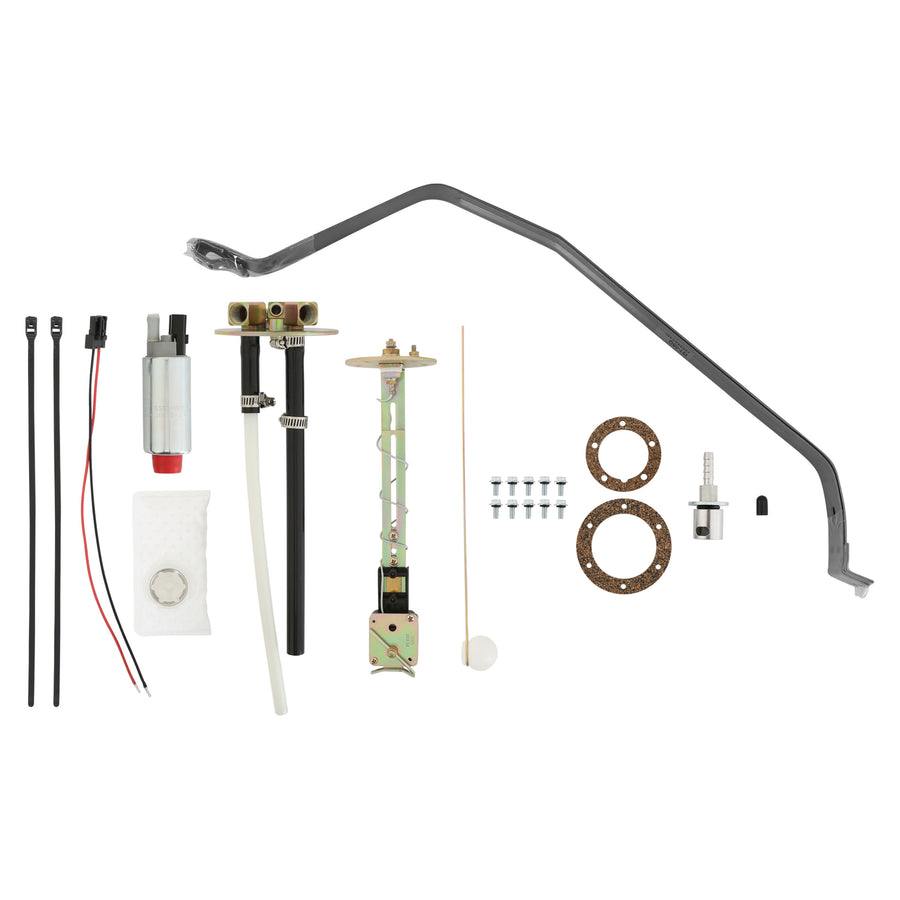

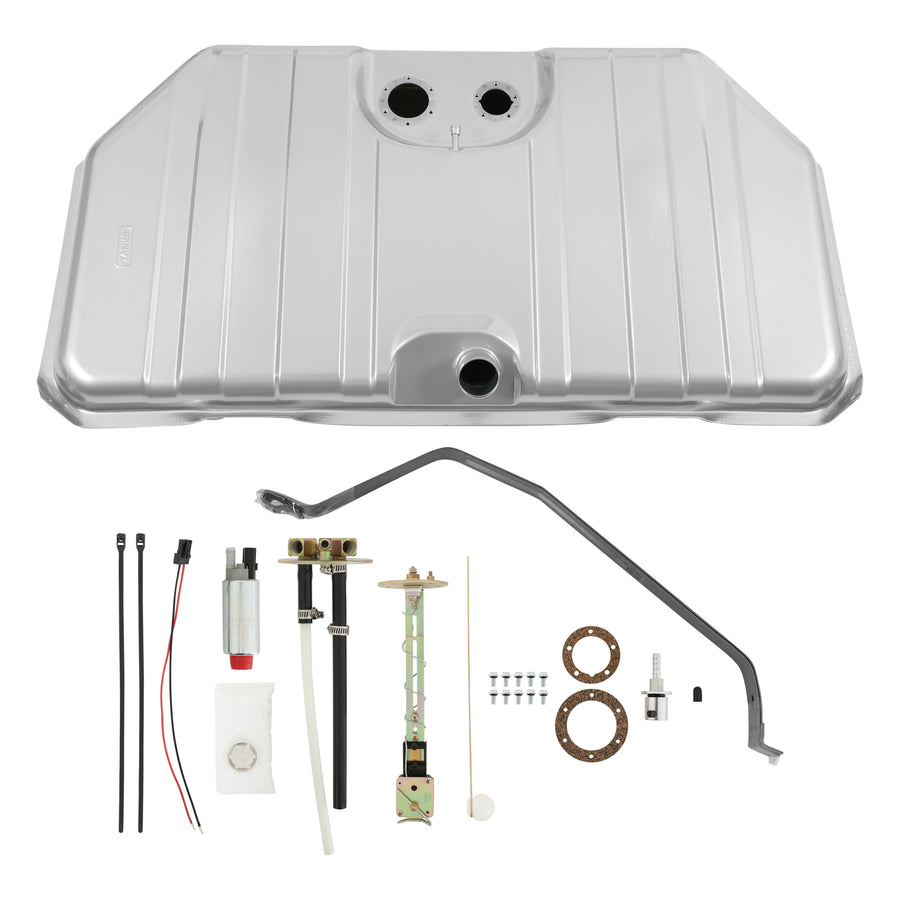

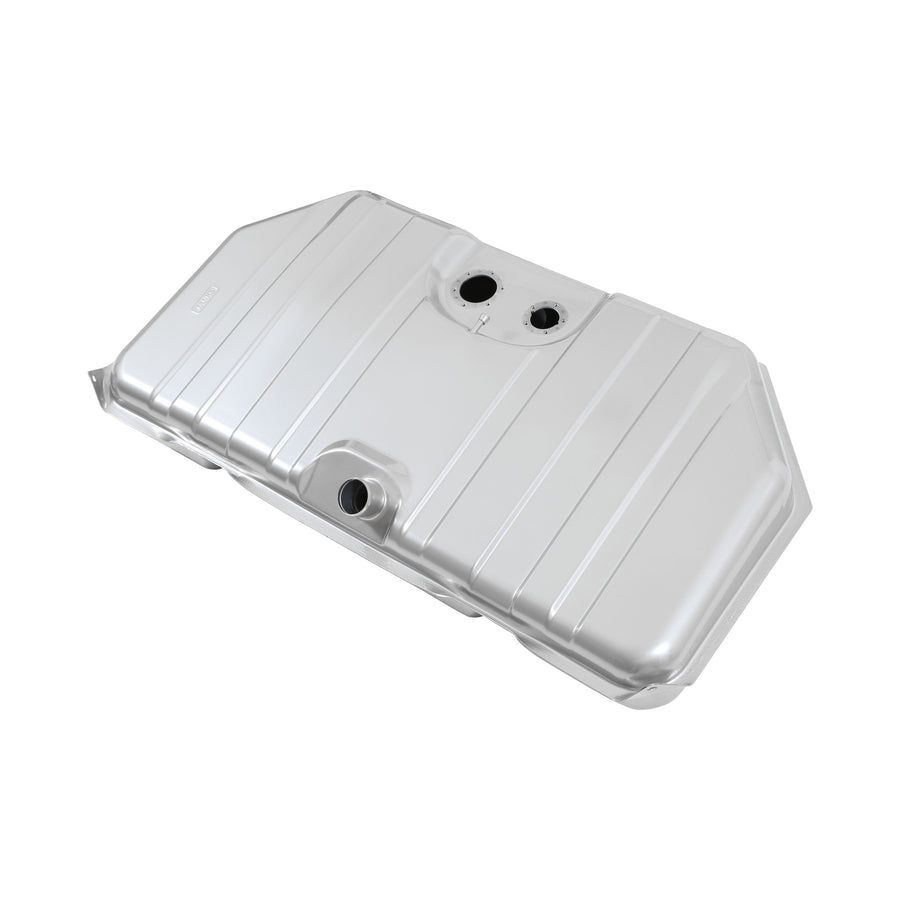

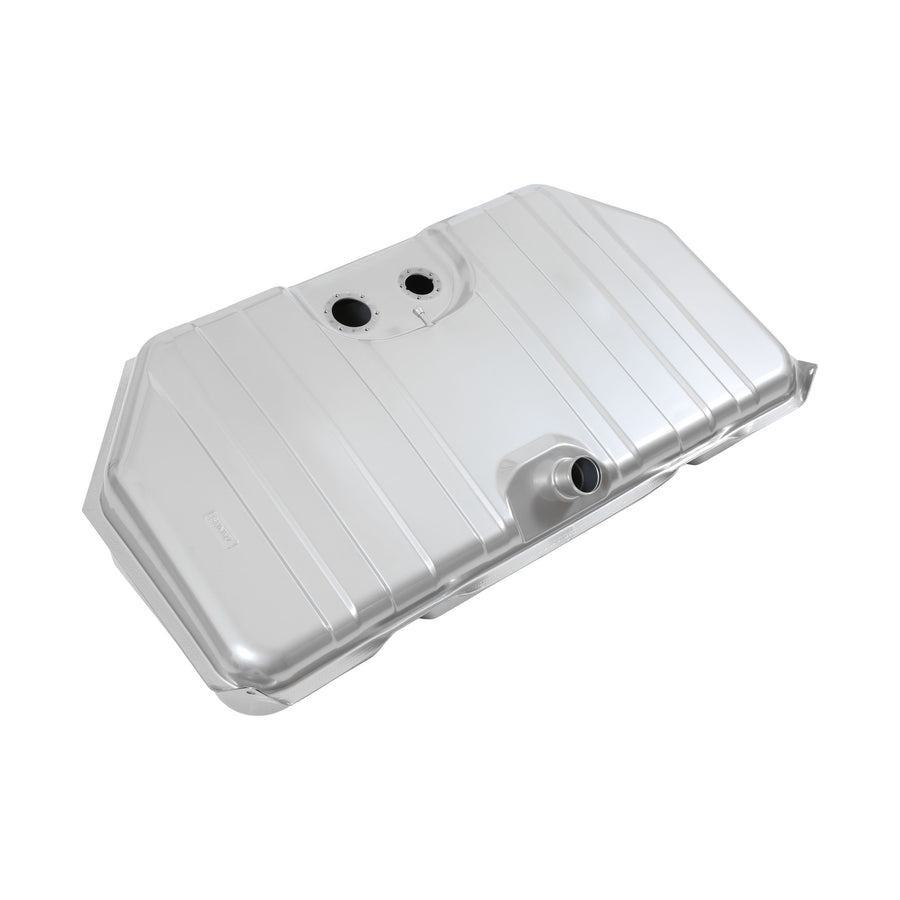

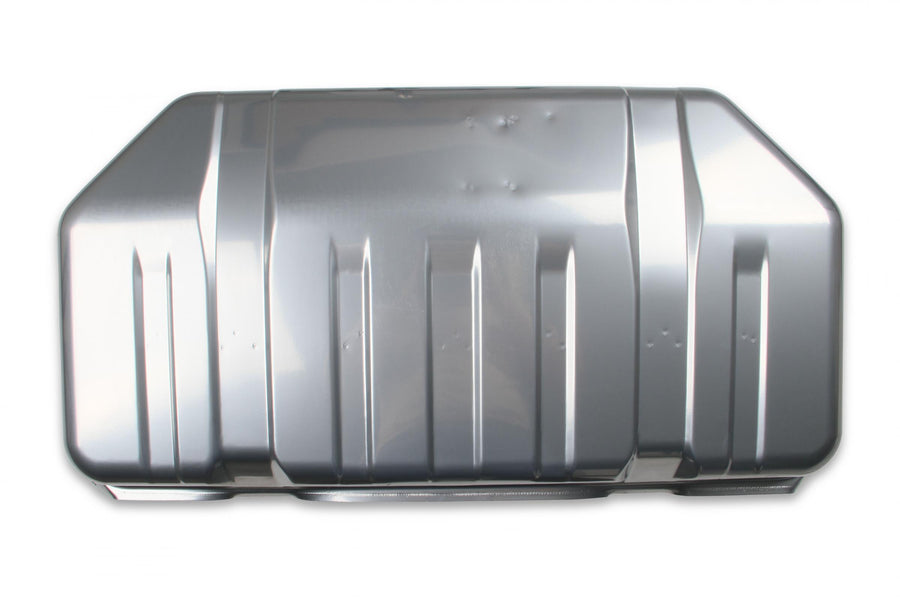

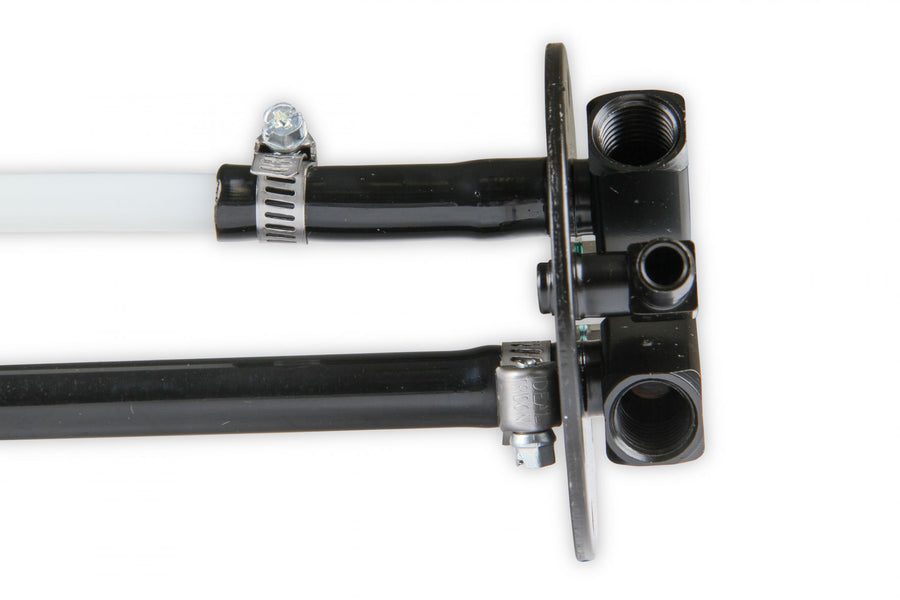

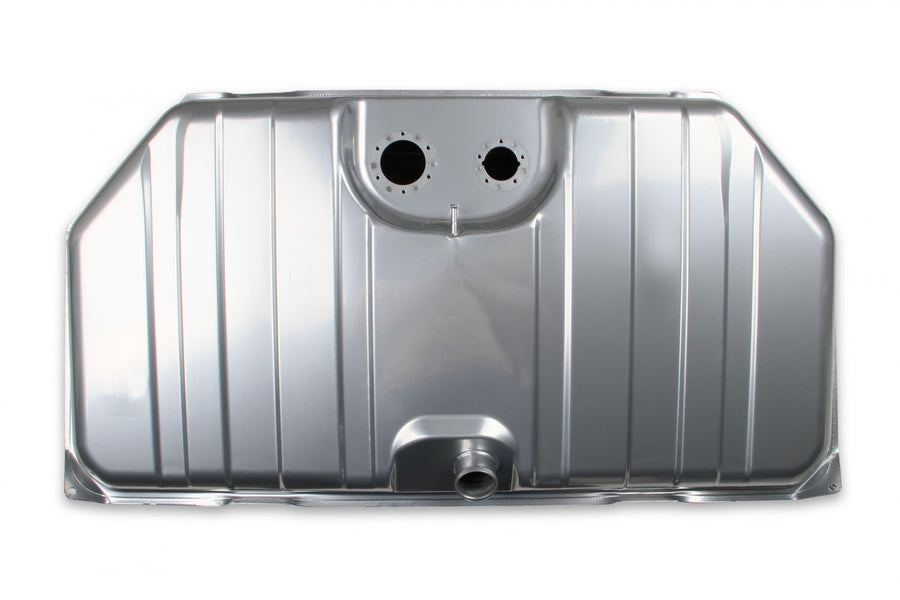

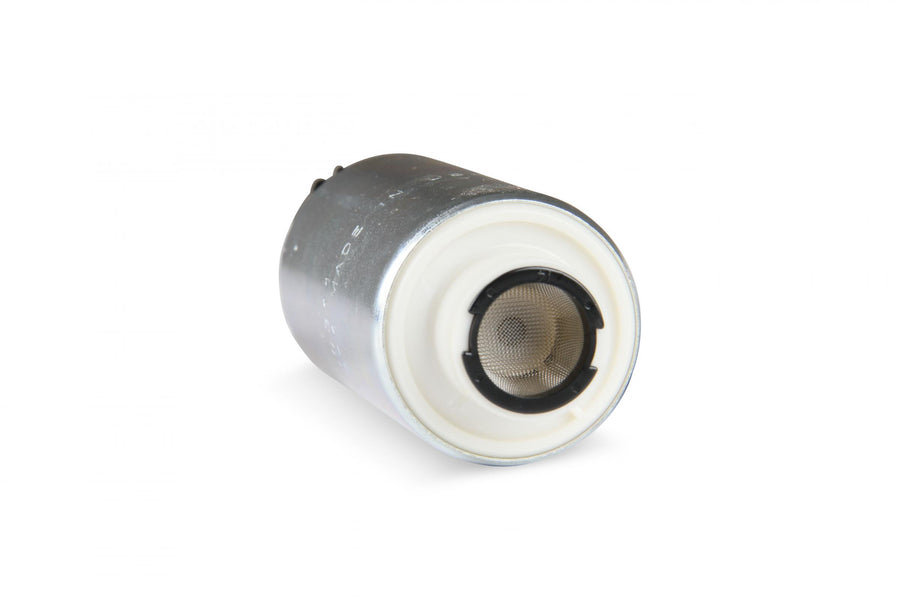

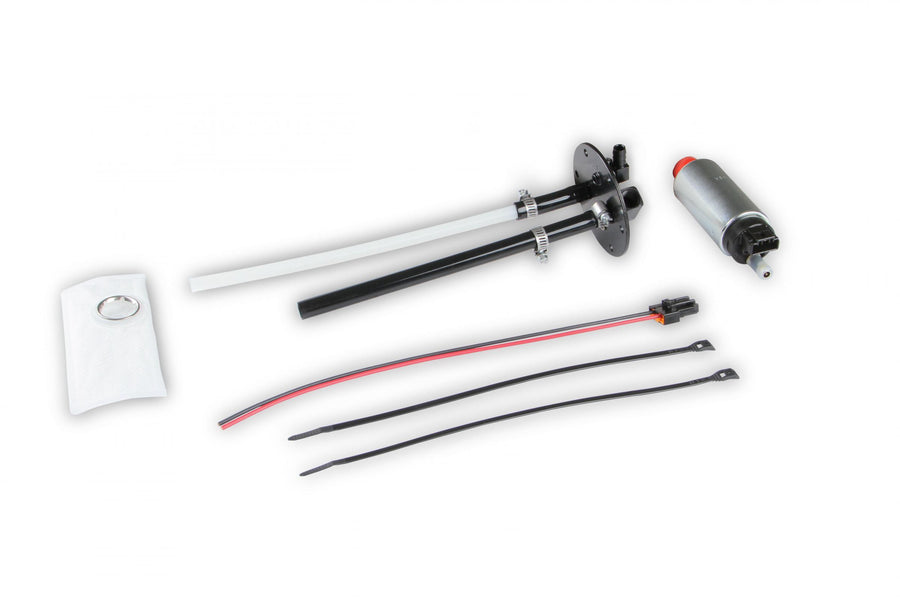

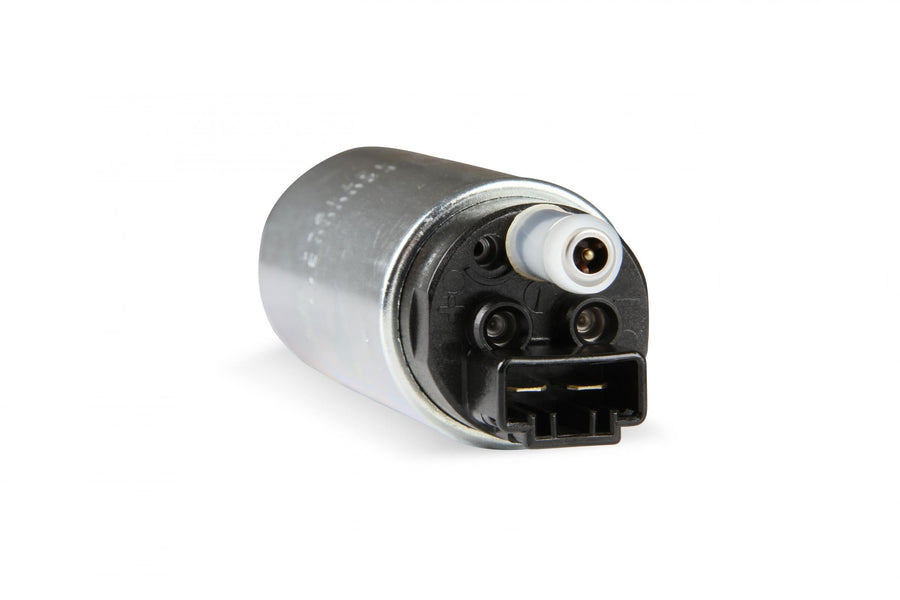

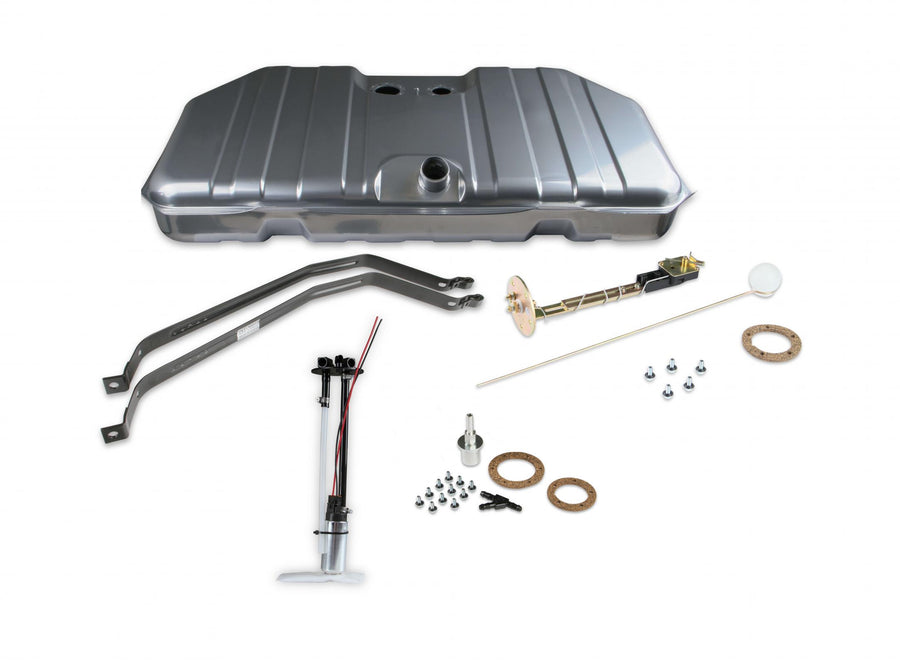

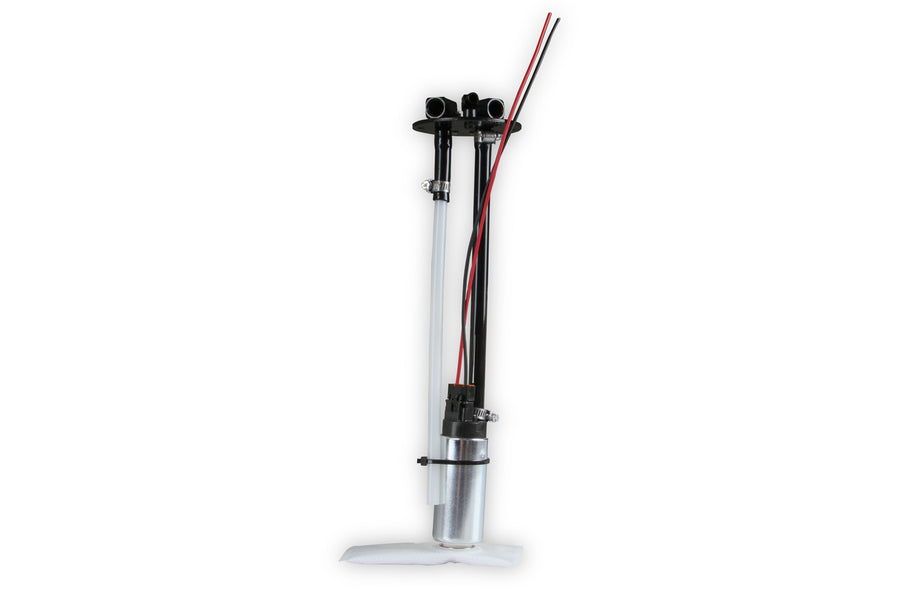

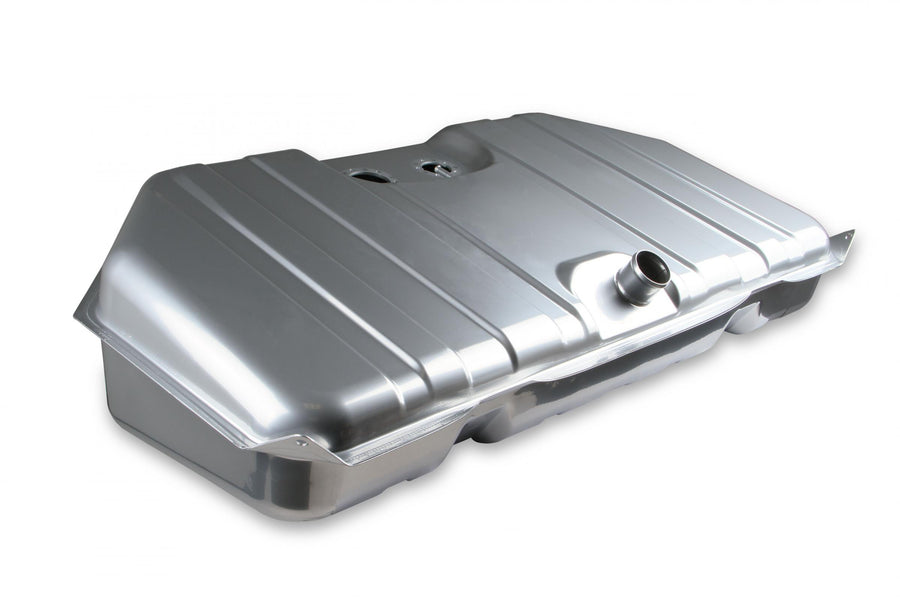

This notched-corner fuel tank kit is a direct fit for 1967-1968 Chevrolet Camaro and Pontiac Firebird models running mini-tub rear suspension setups. The front corners are narrowed to 27" for up to 345-width tire and 3" exhaust clearance, and the tank is built 1" deeper than stock to help recover the fuel capacity lost to the notch. The kit includes the tank, a 255 LPH in-tank fuel pump, a fuel level sender, and new tank straps.
Specifications:
- Application: 1967-1968 Chevrolet Camaro / Pontiac Firebird (notched front corners)
- Tank Capacity: 18 gallons
- Maximum Fuel Flow Rating: 255 LPH
- Fuel Sending Unit: 0-90 Ohms
- Fuel System Type: Gasoline
- Finish: Powder-coated Steel
- Drain Plug: No

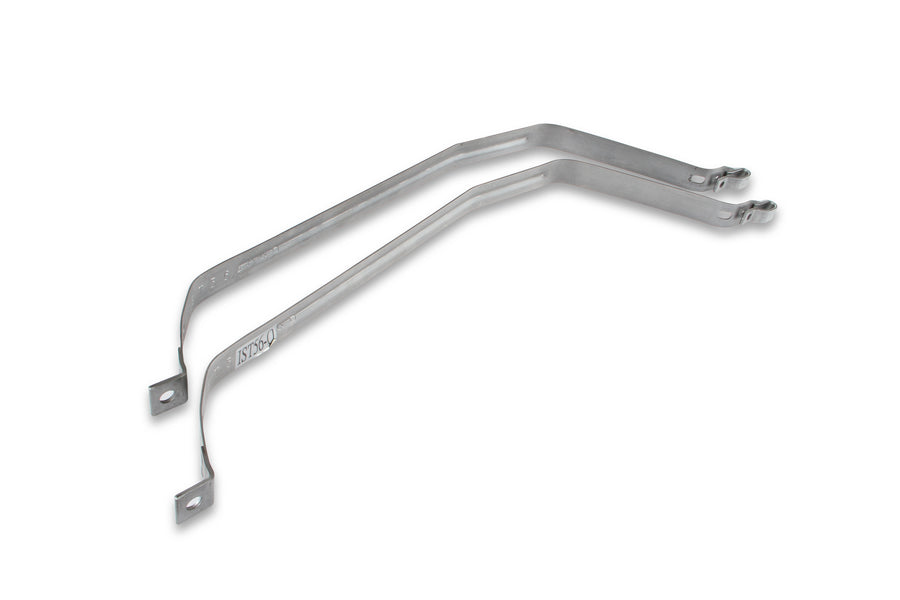

- New Tank Straps Included: Yes
- Part Number: 19-101

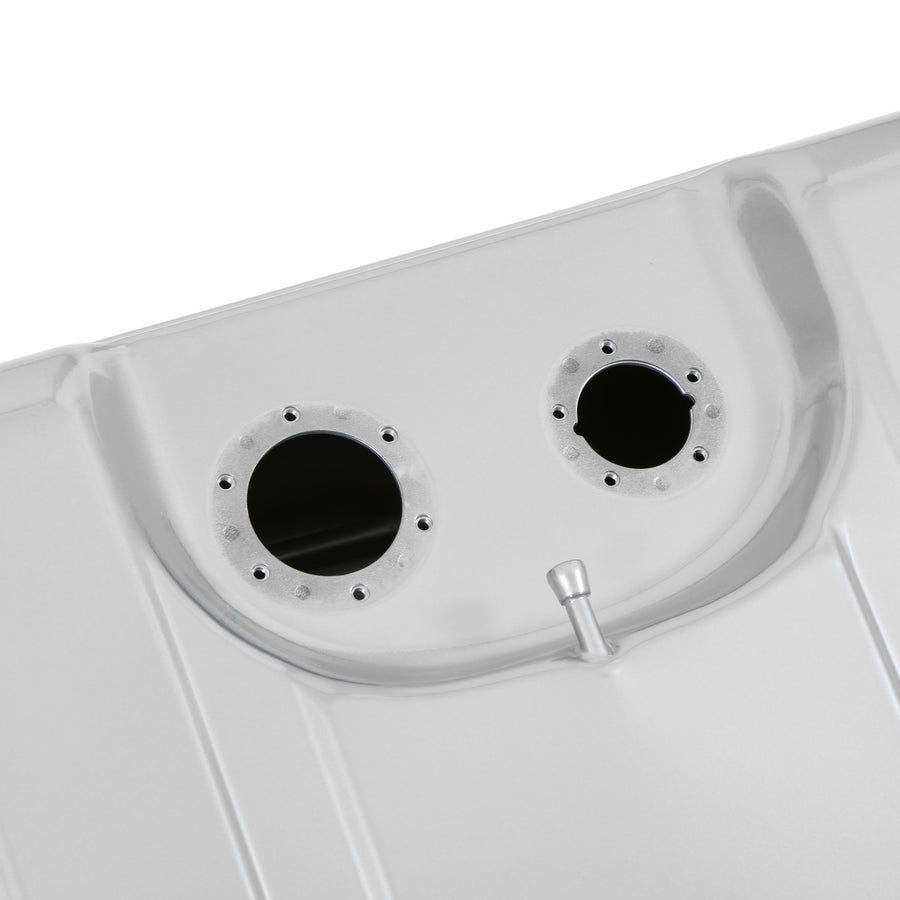

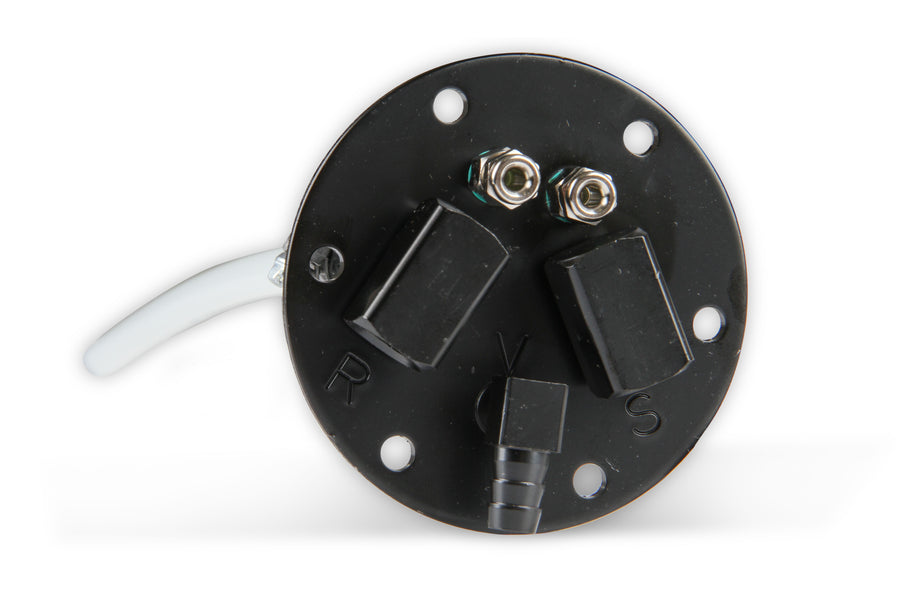

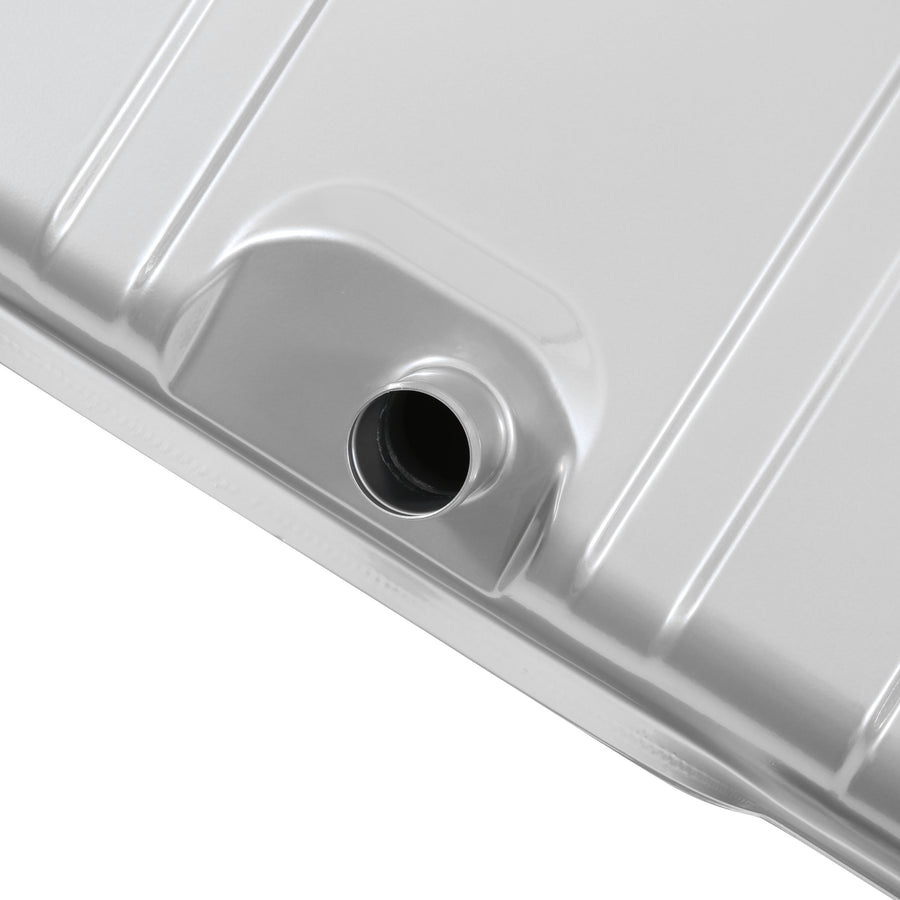

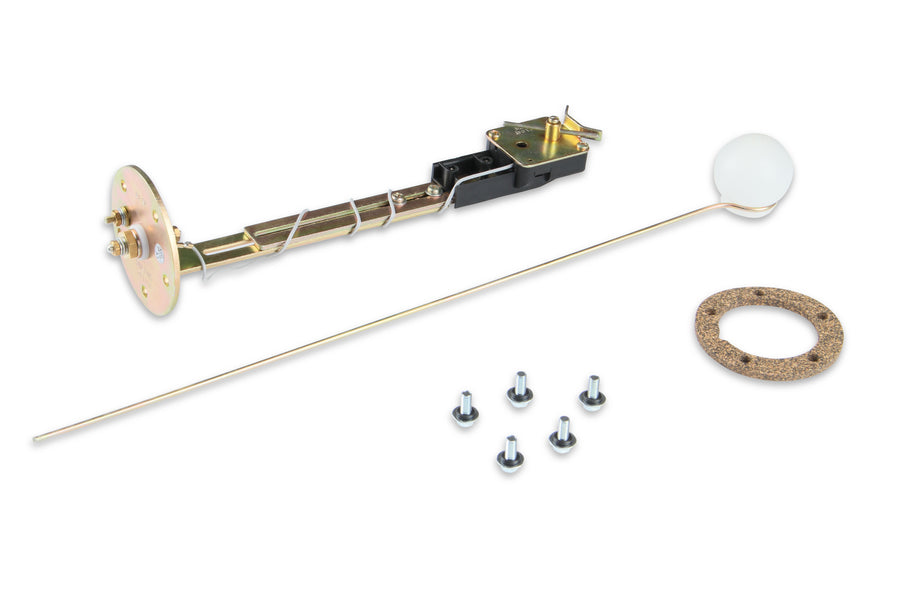

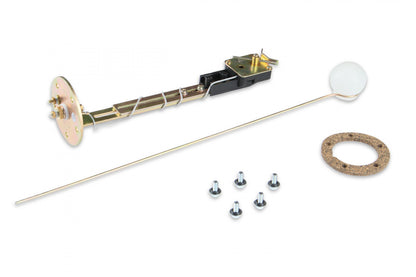

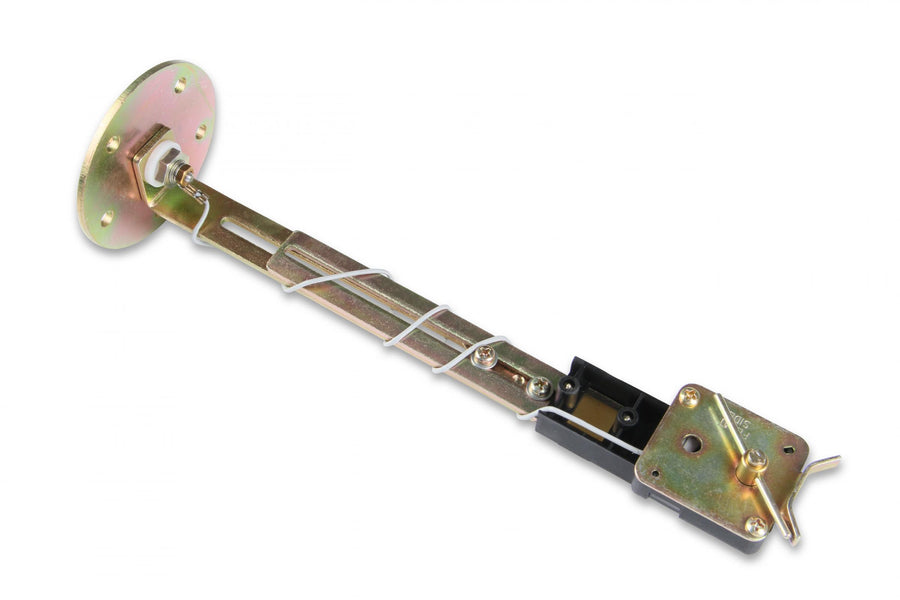

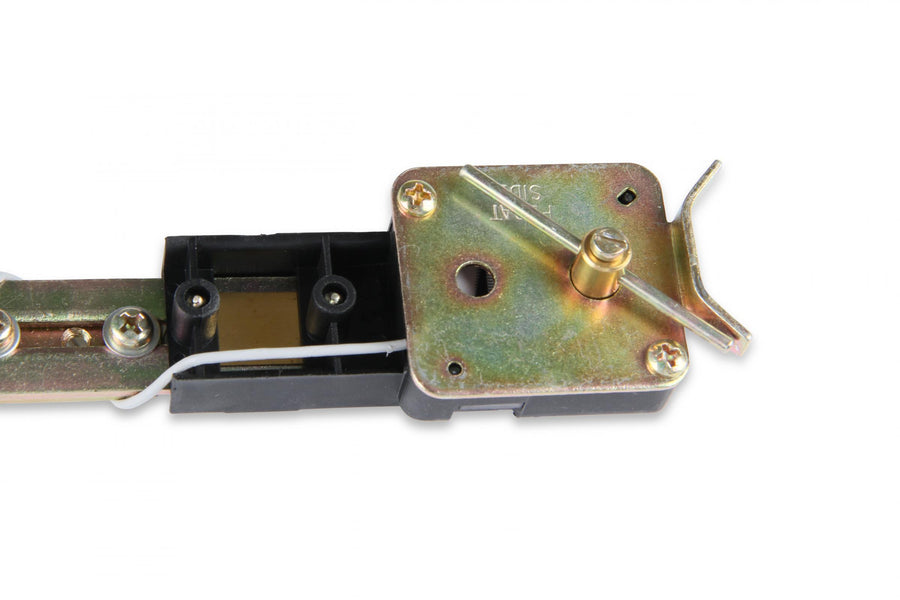

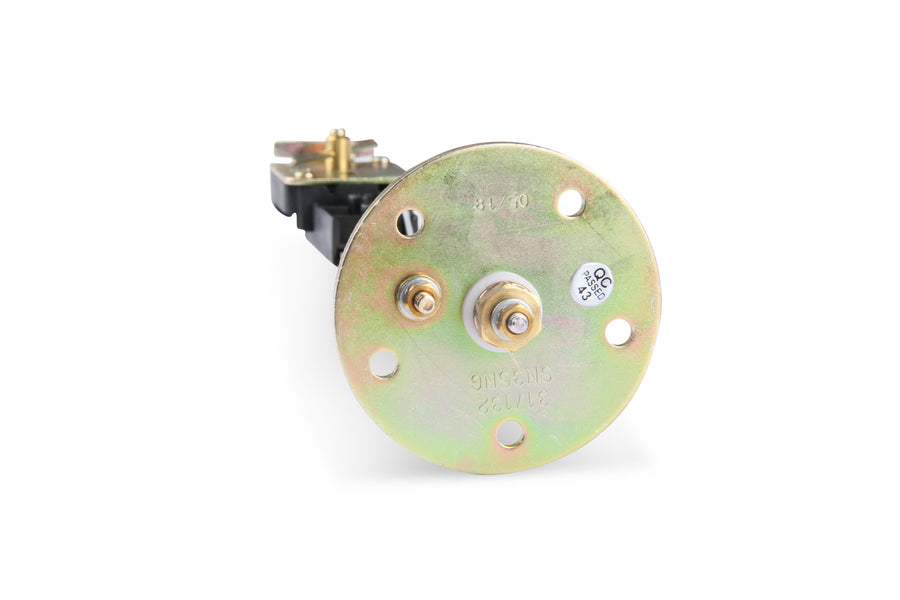

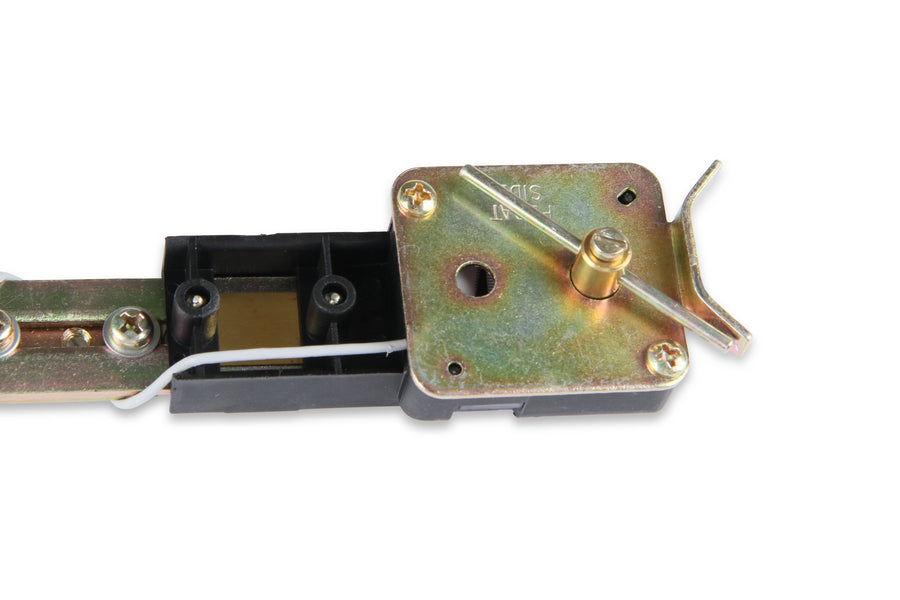

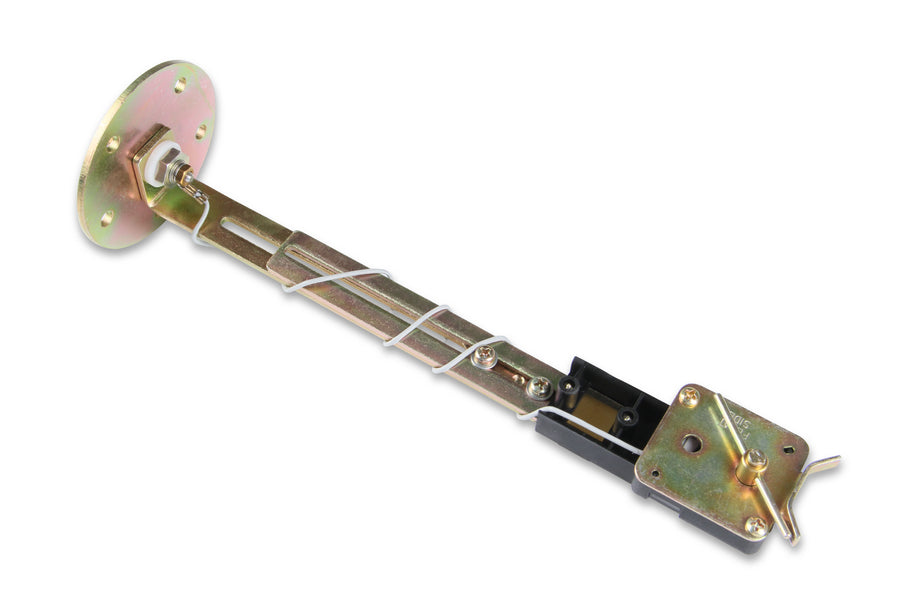

The filler neck is not included with this tank — use the original filler neck or the 19-552 replacement. This notched-corner design also works well on stock cars needing extra exhaust clearance. When installing the sending unit, rotate it until the mounting holes align with the tank's flange holes.
FAQ
Why does this tank have notched front corners?
The front corners are narrowed to 27" to clear up to a 345-width tire and 3" exhaust, making it well suited for mini-tub applications.
Does the notch reduce fuel capacity?
The tank is built 1" deeper than the stock design specifically to help offset the capacity lost to the notched corners.
Is a filler neck included?
No, use the original filler neck or the 19-552 replacement filler neck.
What vehicles does this tank fit?
This tank fits 1967-1968 Chevrolet Camaro and 1967-1968 Pontiac Firebird.
