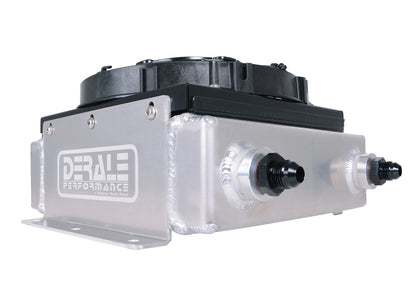

The Derale 65860 is an 18 row Hi-Flow racing remote fluid cooler fitted with a low profile electric fan for serious heat rejection in a compact package. The core uses an extruded tube design with internal turbulators and precision TIG welding in an aircraft-grade aluminum build, delivering 125,000 BTU per hour with minimal pressure drop. An 8-inch IP68 certified fan provides strong airflow even at a standstill, making this a capable cooler for engine oil or transmission cooling in high-performance and racing use.
Specifications:
- Cooler type: remote-mount Hi-Flow racing fluid cooler
- Core design: 18 row extruded tube with turbulators, TIG welded, aircraft-grade aluminum
- Electric fan: 8" IP68 certified low profile fan, 625 CFM, 6 amp draw
- Inlets: 7/8-14 UNF O-ring
- Cooling capacity: 125,000 BTU/hr
- Flow rate: 20 GPM, supports up to 350 psi
- Added fluid capacity: 47 oz

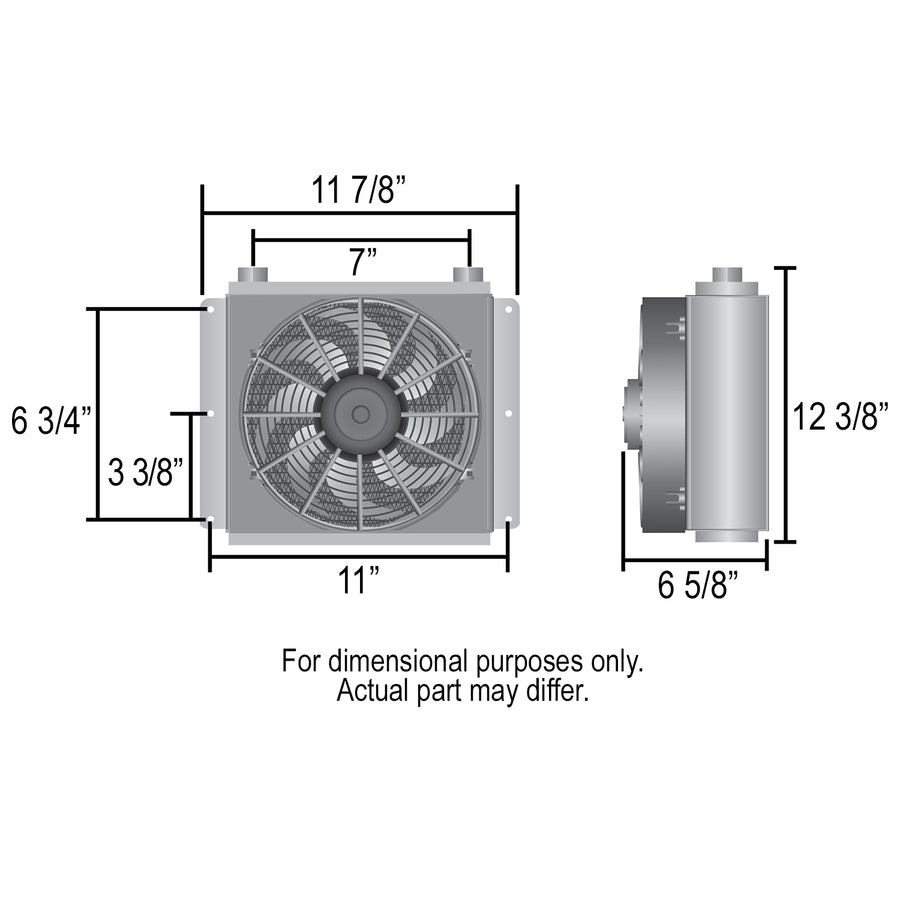

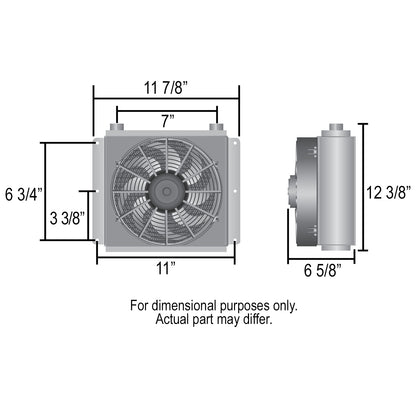

- Dimensions: 11-7/8" W x 12-3/8" H x 8-1/2" D
- Mounting pattern: 6-3/4" x 7-3/16"
- Part number: 65860
FAQ
What is the Derale 65860?
It is an 18 row Hi-Flow racing remote fluid cooler with a low profile electric fan, used to cool engine oil or transmission fluid in high-performance and racing applications.
What fan does it use?
It uses an 8-inch IP68 certified low profile electric fan rated at 625 CFM with a 6 amp draw.
What fittings does it use?
The cooler has 7/8-14 UNF O-ring inlets.
How much heat can it remove?
It is rated at 125,000 BTU per hour, flows up to 20 gallons per minute, and supports up to 350 psi with minimal pressure drop.
Is it universal?
Yes. The 65860 is a universal remote cooler and is not specific to any one vehicle. It measures 11-7/8" wide by 12-3/8" tall by 8-1/2" deep and mounts on a 6-3/4" by 7-3/16" pattern.
