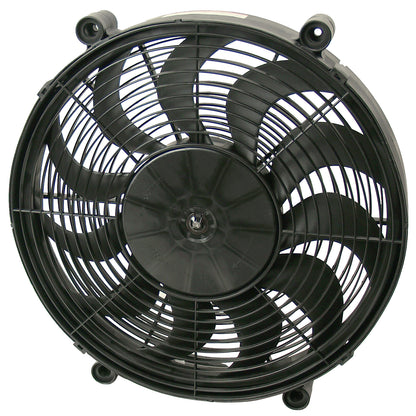

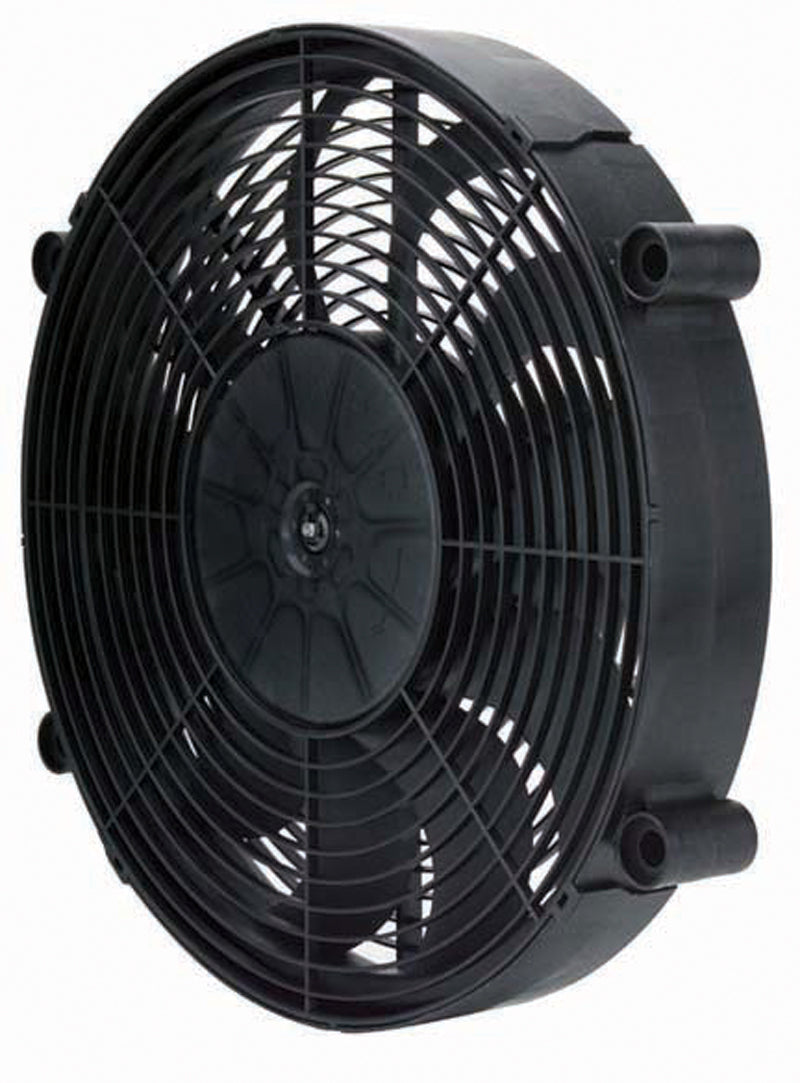

The Derale 16217 is a 17 inch high output RAD electric fan with a premium ratcheting mount kit. It can be set up as a pusher or a puller by flipping the brackets, with no need to reverse the blade or switch the motor leads. The fan moves up to 2400 CFM on high and 1800 CFM on low for strong primary or auxiliary cooling.
Specifications:
- Type: High output single RAD electric fan, reversible pusher/puller
- Diameter: 17"
- Airflow: 2400 CFM high / 1800 CFM low
- Amp draw: 23.5 A high / 17.4 A low
- Overall dimensions: 16-7/8" W x 16-7/8" H x 2-5/8" D
- Mounting: Premium ratcheting mount kit
- Part number: 16217
FAQ
How much air does the Derale 16217 move?
Up to 2400 CFM on high and 1800 CFM on low.
Is it a pusher or a puller?
Either. It mounts as a pusher or puller by flipping the brackets, with no need to reverse the blade or motor leads.
What size is the fan?
It is a 17 inch fan, 16-7/8" square by 2-5/8" deep overall.
How does it mount?
It uses a premium ratcheting mount kit.
How much current does it draw?
About 23.5 amps on high and 17.4 amps on low.
