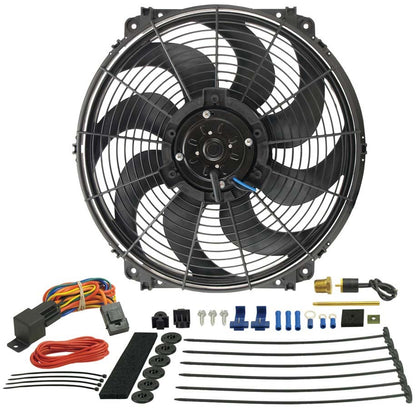

The Derale 16016 pairs a 16 inch Tornado electric fan with a 180 degree Fahrenheit dual-probe single-stage fan controller for a complete automatic cooling setup. The fan moves 2175 CFM at zero static pressure and can be wired as a pusher or a puller. The controller turns the fan on at 180 degrees Fahrenheit and off at 165 degrees Fahrenheit, using either the push-in radiator probe or the included 3/8 inch NPT water jacket probe.
Specifications:
- Type: Tornado electric fan and dual-probe fan controller kit
- Fan size: 16 inches
- Airflow: 2175 CFM at 0 static pressure
- Amp draw: 18.4 amps
- Airflow direction: Puller, reversible (pusher or puller)
- Controller: Single stage, 180 degree on / 165 degree off, dual probe

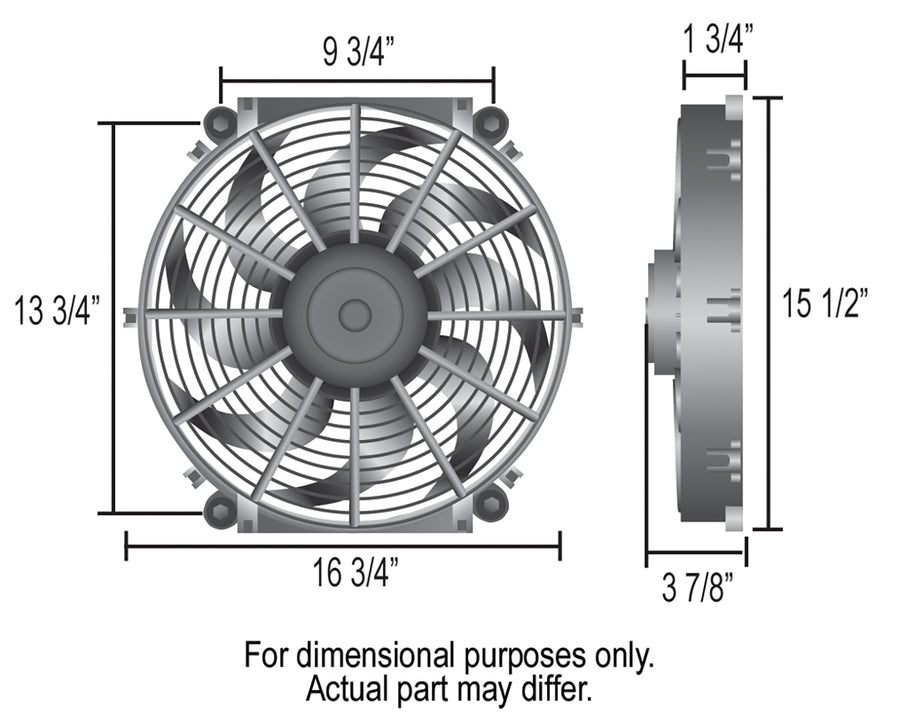

- Width: 16-3/4 inches
- Height: 15-1/2 inches
- Depth: 1-3/4 inches (overall depth 3-7/8 inches)
- Mounting: 13-3/4 inch x 9-3/4 inch

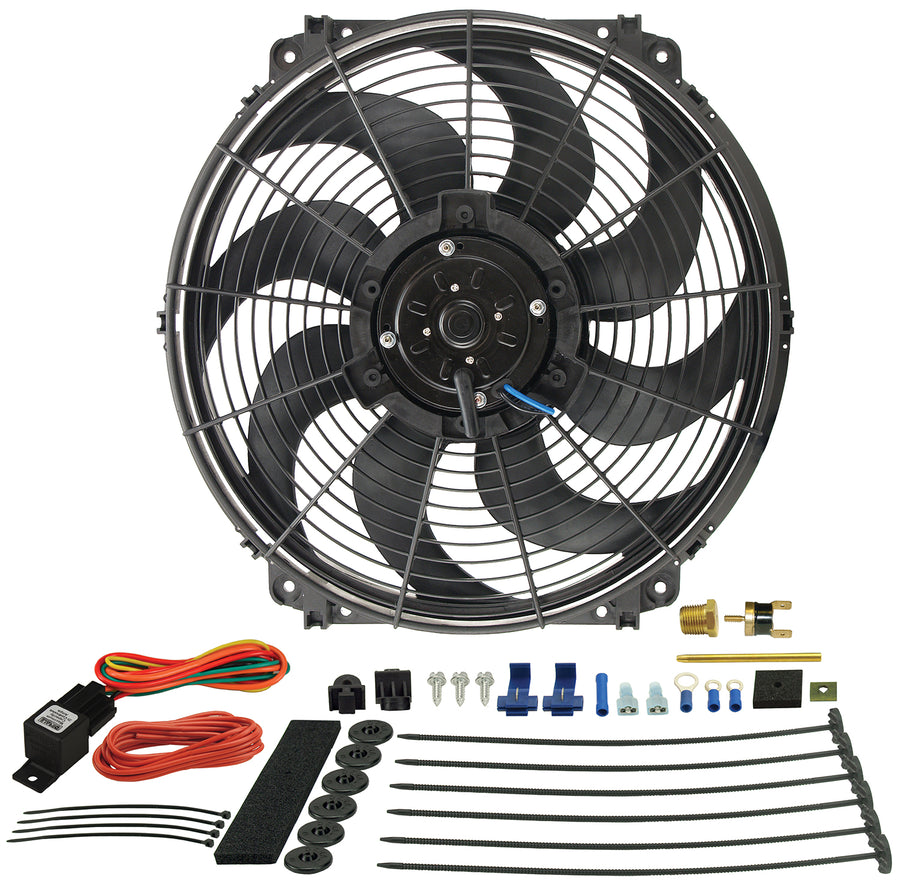

- Included: Push-in radiator probe, 3/8 inch NPT brass water jacket probe, relay wire harness, mounting hardware, wire connections
- Part number: 16016
FAQ
How much air does the Derale 16016 fan move?
The 16 inch Tornado fan moves 2175 CFM at zero static pressure and draws 18.4 amps.
How does the 16016 controller work?
It is a single-stage dual-probe controller that turns the fan on at 180 degrees Fahrenheit and off at 165 degrees Fahrenheit.
Can the 16016 fan be used as a pusher?
Yes, the fan is reversible and can be set up as either a pusher or a puller.
What is included with the 16016?
It comes with a push-in radiator probe, a 3/8 inch NPT brass water jacket probe, a relay wire harness, mounting hardware, and wire connections.
