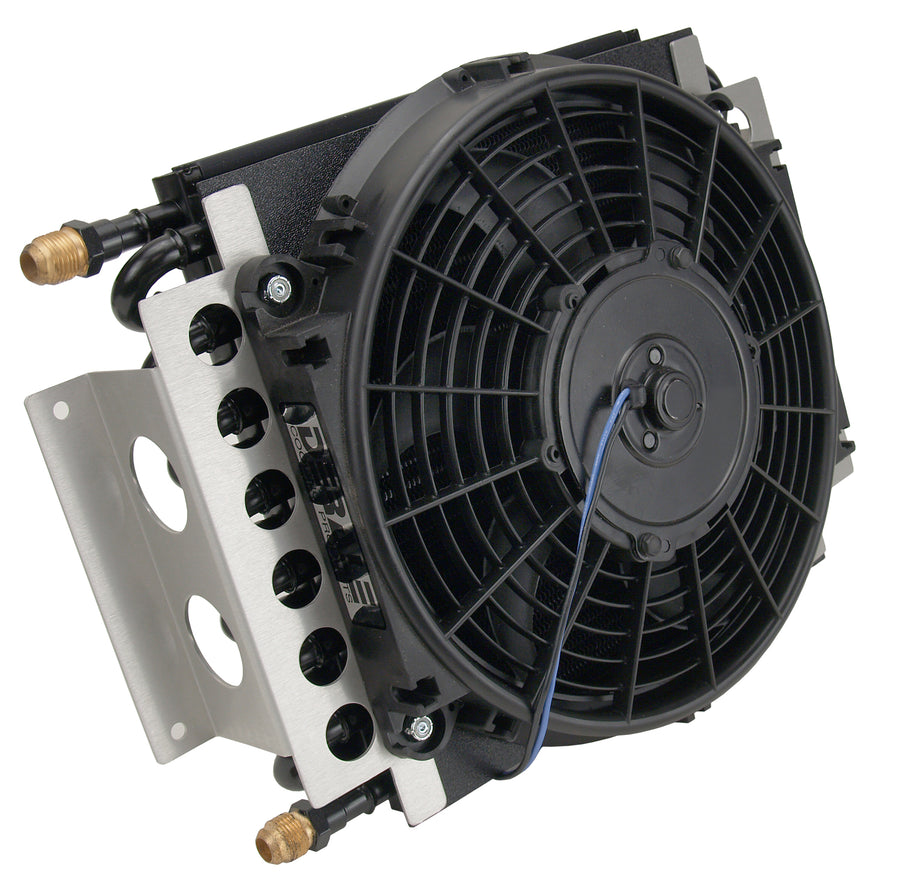

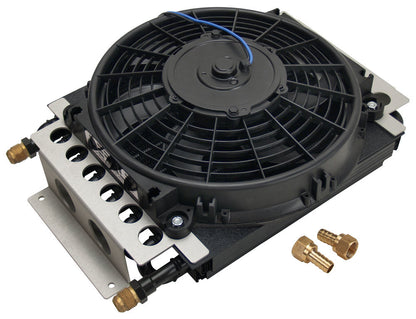

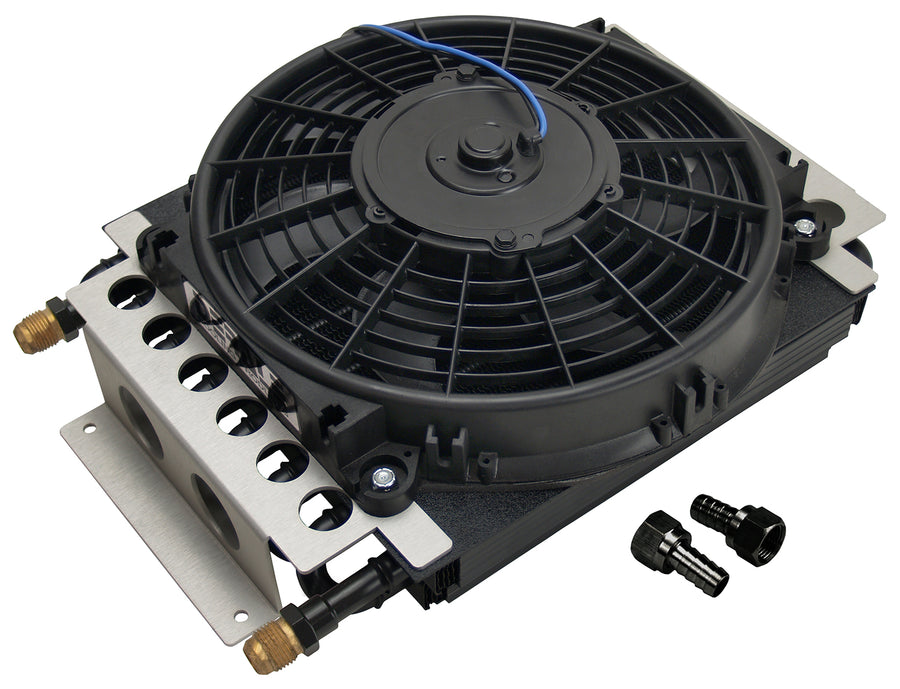

The Derale 15800 is a 16 pass Electra-Cool remote mount cooler with an integrated 10 inch Tornado electric fan. Mounting the fan directly on the cooler lets it move air across the core even when the vehicle is stationary, so it works well in remote locations away from the airstream. The tube and fin core carries a clear anodized aluminum shroud and aluminum mounting brackets. It is designed mainly for engine oil and also handles heavy-duty transmission or fuel cooling.
Specifications:
- Type: Electra-Cool remote mount cooler (fan-mounted)
- Passes: 16
- Inlets: -8AN
- Integrated fan: 10" Tornado electric fan
- Airflow: 650 CFM
- Amp draw: 5.3 A

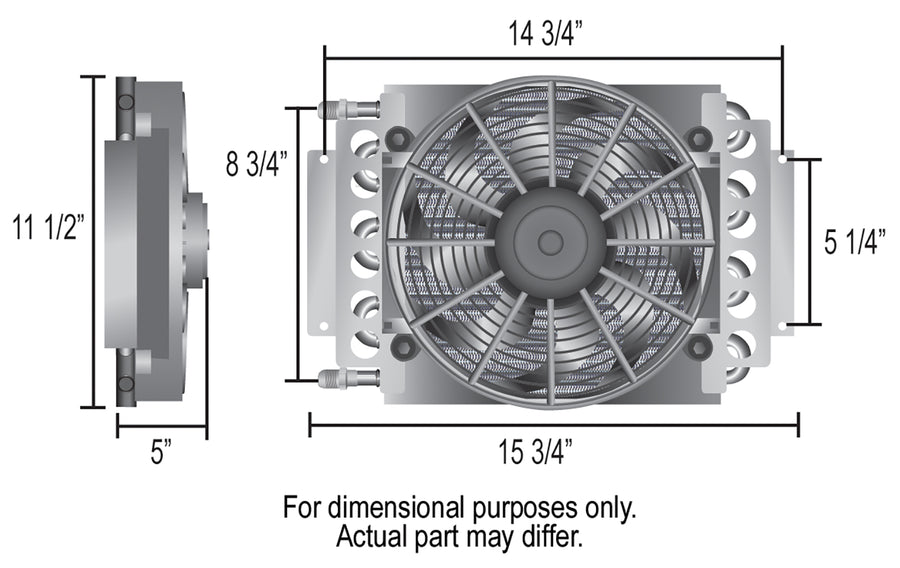

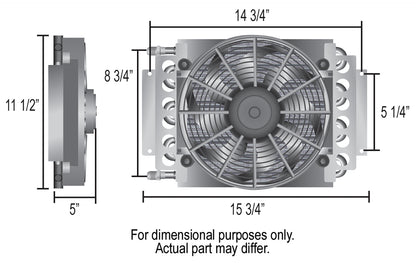

- Overall dimensions: 15-3/4" W x 11-1/2" H x 5" D
- Construction: Tube and fin core, clear anodized aluminum shroud, aluminum brackets
- Cools: Engine oil, heavy-duty transmission fluid, or fuel
- Part number: 15800
FAQ
How many passes is the Derale 15800 cooler?
It is a 16 pass Electra-Cool remote cooler.
Does it include a fan?
Yes, it has an integrated 10" Tornado electric fan that moves about 650 CFM, so it cools even at a standstill.
What inlets does it use?
It uses -8AN inlets.
What are the overall dimensions and current draw?
It measures 15-3/4" wide by 11-1/2" tall by 5" deep and the fan draws about 5.3 amps.
What can it cool?
It is designed for engine oil and also handles heavy-duty transmission or fuel cooling.
