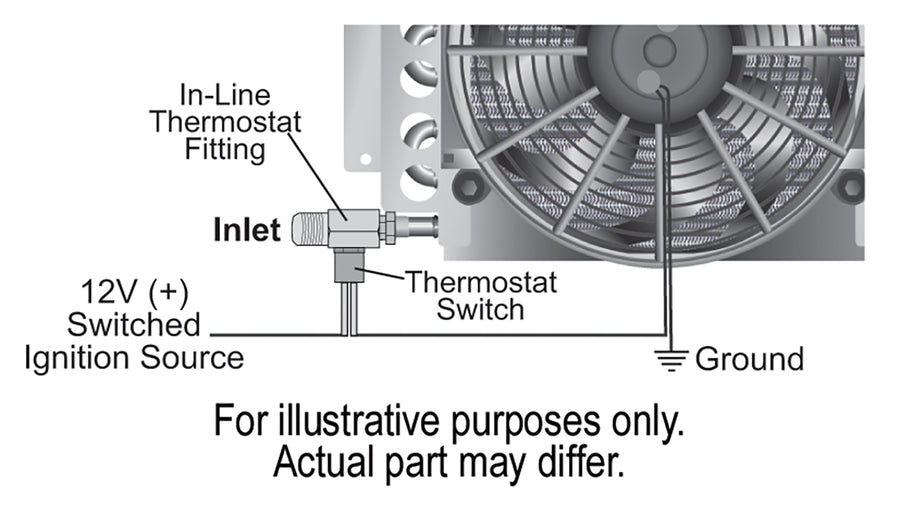

The Derale 15500 is a complete 16 pass Electra-Cool remote engine oil cooler kit with -8AN inlets. It combines a tube and fin cooler mounted behind a 10 inch reversible Tornado electric fan inside a clear anodized aluminum shroud, so it can be located almost anywhere there is room for mounting. The fan moves 650 CFM at a low 5.3 amp draw, and the kit is rated at 14,000 BTU per hour. A thermostatic sandwich adapter and in-line thermostat are included so the system only circulates and cools oil once it reaches operating temperature.
Specifications:
- Type: Electra-Cool remote engine oil cooler kit
- Cooler style: 16 pass tube and fin
- Inlet size: -8AN
- Fan: 10 inch reversible (puller) Tornado electric fan
- Airflow: 650 CFM
- Amp draw: 5.3 amps
- Cooling capacity: 14,000 BTU per hour
- Cooler fluid capacity: 19.6 oz
- Shroud: Clear anodized aluminum

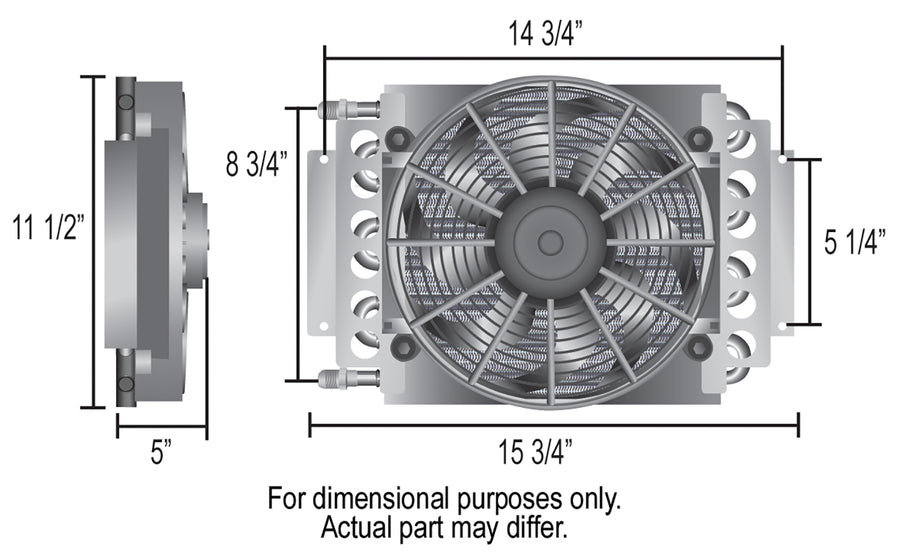

- Overall dimensions: 15-3/4 inch W x 11-1/2 inch H x 5 inch D
- Mounting: 14-3/4 inch x 5-1/4 inch

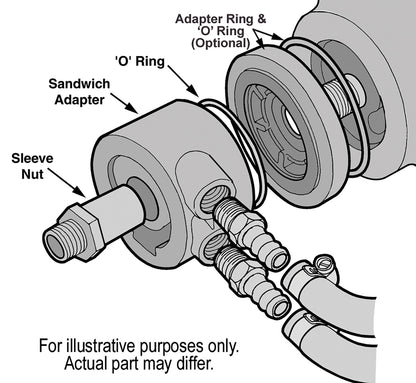

- Sandwich adapter inlet: 3/8 inch NPT
- Hose: 1/2 inch, 10 ft included
- Included: Fan-mounted cooler, universal thermostatic sandwich adapter, sleeve nuts (13/16-16, 3/4-16, 18mm, 20mm, 22mm), two -8AN fittings, four 1/2 inch hose barb fittings, 180 degree in-line thermostat, hose and hardware
- Part number: 15500
FAQ
What does the Derale 15500 kit include?
It includes the fan-mounted cooler, a universal thermostatic sandwich adapter with sleeve nuts, -8AN fittings, 1/2 inch hose barbs, a 180 degree in-line thermostat, and 10 feet of 1/2 inch hose with hardware.
How much air does the 15500 fan move?
The 10 inch reversible Tornado fan moves 650 CFM at a 5.3 amp draw.
What is the 15500 rated at?
The 16 pass cooler is rated at 14,000 BTU per hour and holds 19.6 oz of fluid.
What inlet size does the 15500 use?
The cooler uses -8AN inlets, and the sandwich adapter inlet is 3/8 inch NPT.
