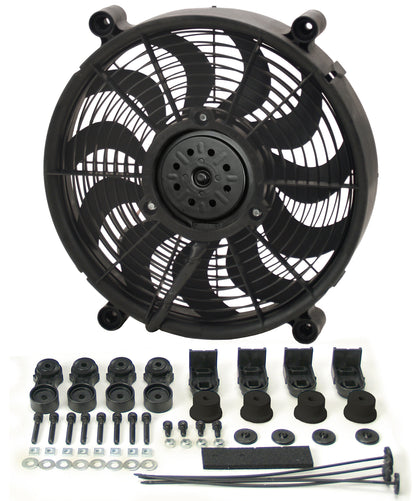

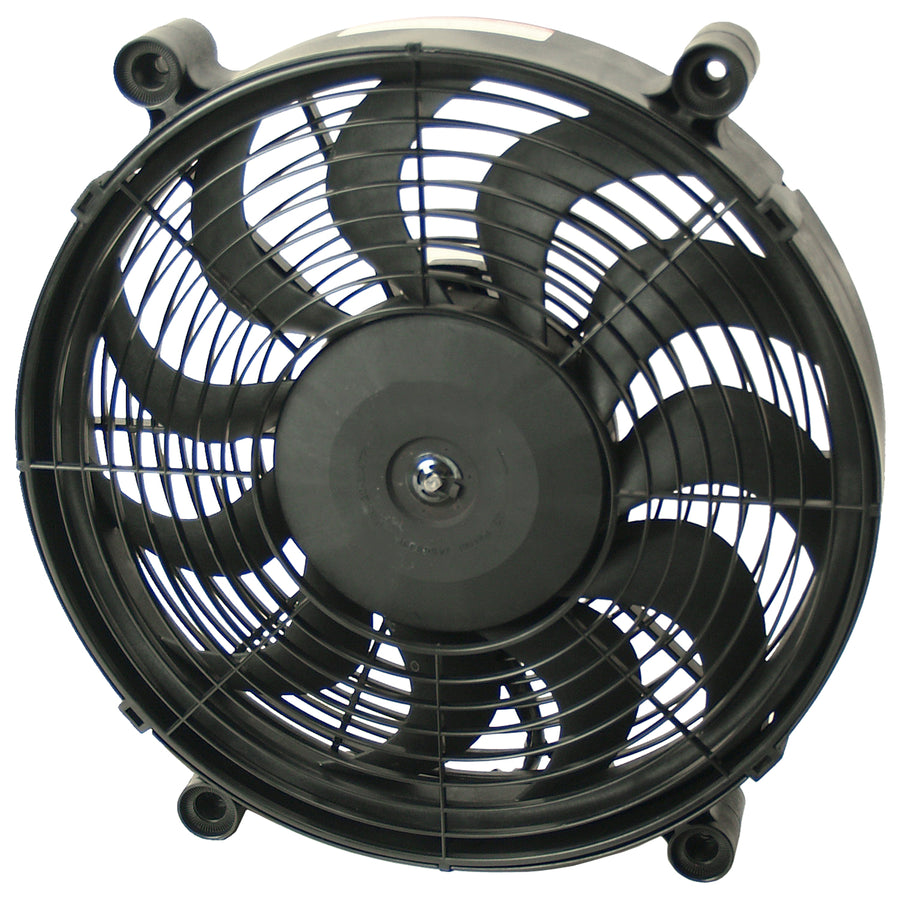

The Derale 16214 is a 14 inch high output RAD electric fan with a premium ratcheting mount kit. It can be set up as a pusher or a puller without reversing the blade or switching the motor leads, so only the brackets flip. The fan moves up to 2100 CFM on high and 1500 CFM on low and mounts to a wide range of radiators using the patented ratchet system.
Specifications:
- Type: High output single RAD electric fan, reversible pusher/puller
- Diameter: 14"
- Airflow: 2100 CFM high / 1500 CFM low
- Amp draw: 22 A high / 16.2 A low
- Overall dimensions: 14-1/2" W x 14-1/2" H x 2-5/8" D
- Mounting: Premium ratcheting mount kit (spacing 8-7/8" x 12-3/4")
- Part number: 16214
FAQ
How much air does the Derale 16214 move?
Up to 2100 CFM on high and 1500 CFM on low.
Is it a pusher or a puller?
Either. It mounts as a pusher or puller by flipping the brackets, with no need to reverse the blade or motor leads.
What size is the fan?
It is a 14 inch fan, 14-1/2" square by 2-5/8" deep overall.
How does it mount?
It uses a premium ratcheting mount kit for a wide range of radiators.
How much current does it draw?
About 22 amps on high and 16.2 amps on low.
