The Derale 16114 is a 14" high output electric puller fan from the H.O. Extreme series, built for limited-space applications with high static pressure loads. Its 10 thin curved blades move 1864 CFM in a low-profile package only about 3-7/16" deep. The sealed motor is IP68 certified, rated waterproof and dustproof for durability in harsh conditions. It mounts on the engine side as a puller and ships with a mounting kit and illustrated instructions.
Specifications:
- Fan diameter: 14"
- Airflow: 1864 CFM
- Amp draw: 21.5 A
- Configuration: puller only (engine side)
- Blades: 10 thin curved blades

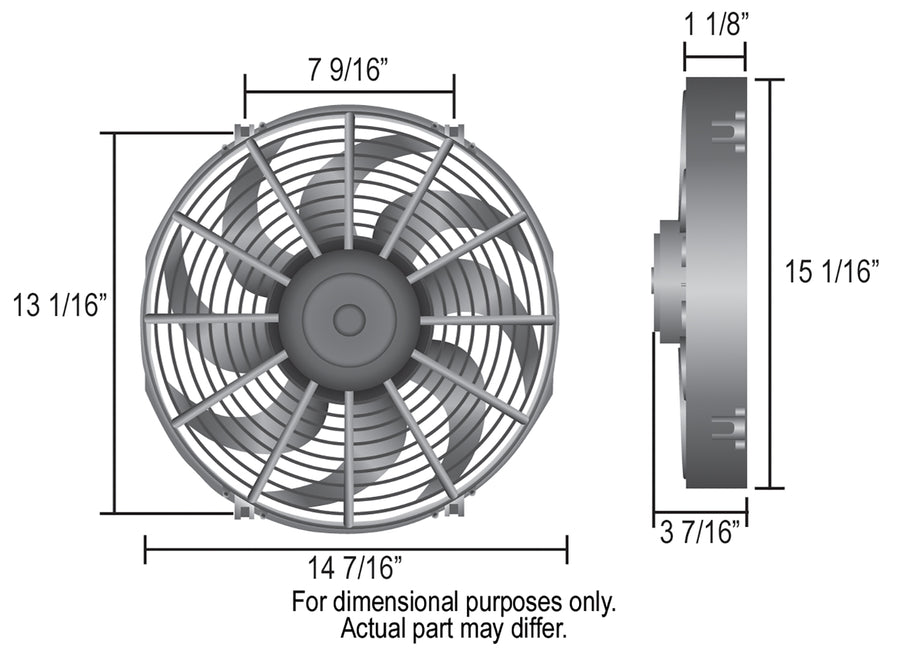

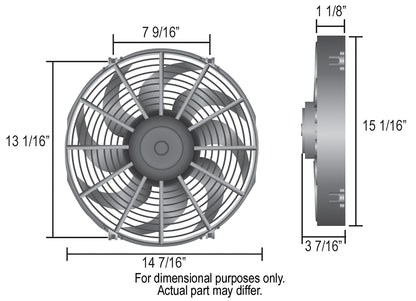

- Depth: approximately 3-7/16" (low profile)
- Motor: IP68 sealed, waterproof and dustproof

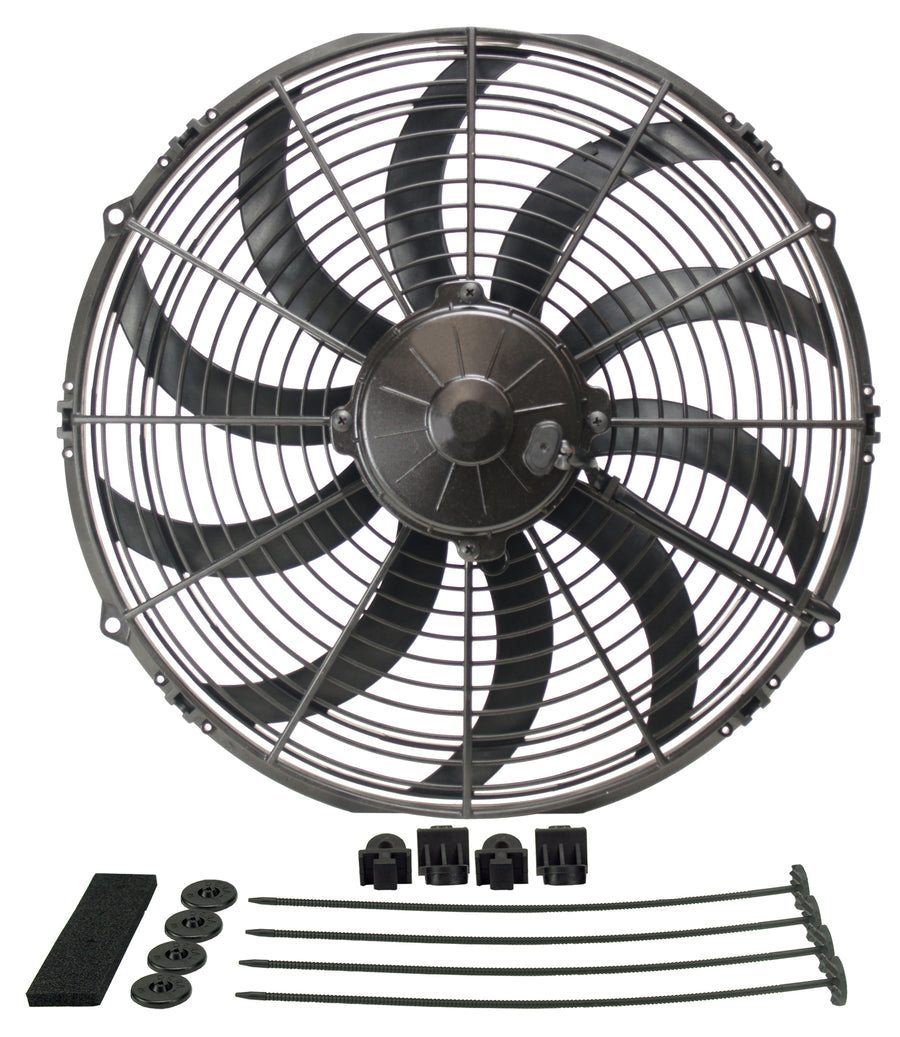

- Included: mounting kit and instructions
- Part number: 16114
FAQ
How much air does the Derale 16114 fan move?
It moves 1864 CFM and draws 21.5 amps.
Is it a puller or pusher fan?
It is a puller fan, mounted on the engine side.
What makes it suited to tight spaces?
It is low profile at about 3-7/16" deep and uses thin curved blades for high static pressure performance.
Is the motor sealed?
Yes, the motor is IP68 certified, waterproof and dustproof.
