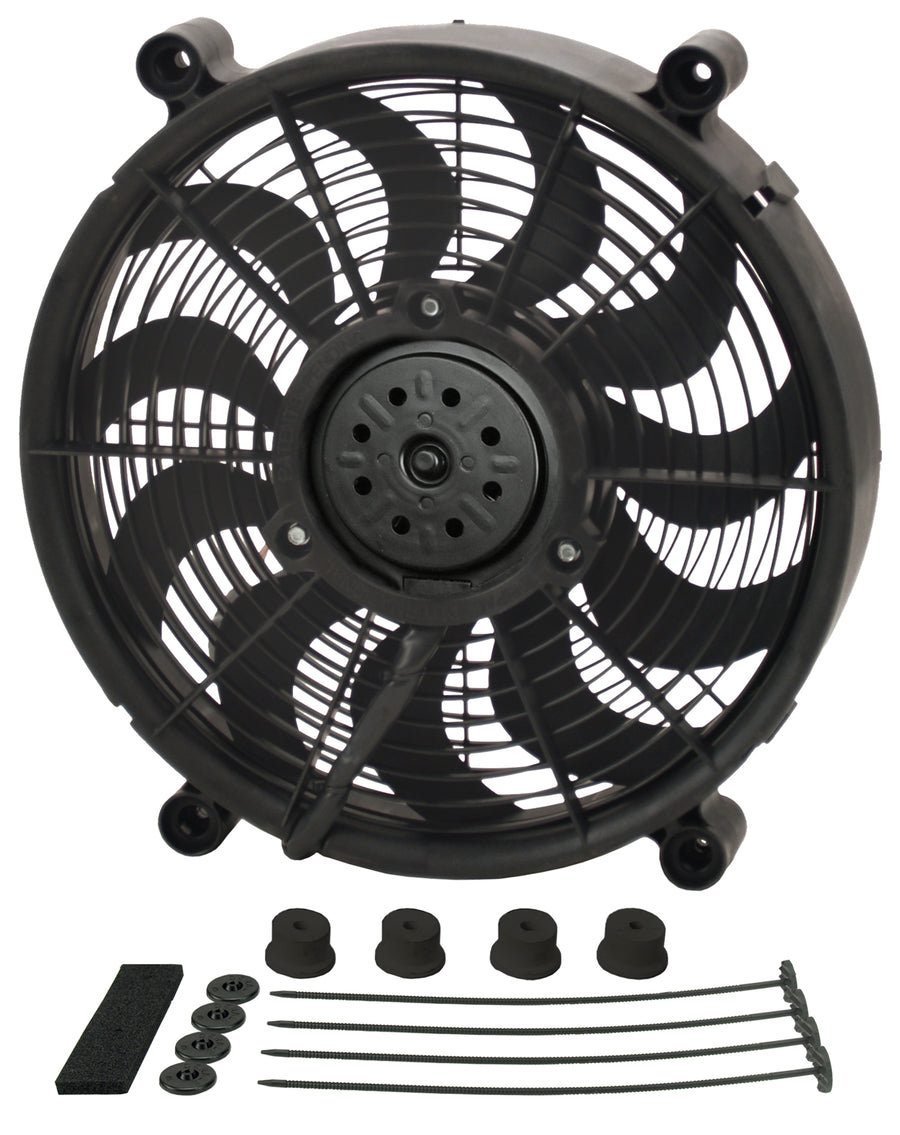

The Derale 18214 is a 14 inch high output single RAD electric fan that can mount as either a pusher or a puller by simply flipping the brackets, without flipping the blade or switching the motor leads. It is a two-speed fan moving up to 2100 CFM on high and 1500 CFM on low, drawing 22 and 16.2 amps respectively. It ships with a standard mount kit for installation.
Specifications:
- Type: High output single RAD electric fan with standard mount kit
- Fan size: 14 inches
- Airflow: 2100 CFM high / 1500 CFM low (2-speed)
- Amp draw: 22 amps high / 16.2 amps low
- Orientation: Pusher or puller (flip brackets, no blade or lead change)
- Width: 14-1/2 inches
- Height: 14-1/2 inches
- Depth: 2-5/8 inches
- Mounting: 8-7/8 inch x 12-3/4 inch; standard mount kit included
- Part number: 18214
FAQ
Can the Derale 18214 be used as a pusher or puller?
Yes, it mounts as either a pusher or a puller by flipping the brackets, with no need to flip the blade or switch the motor leads.
How much air does the 18214 move?
It is a two-speed fan that moves up to 2100 CFM on high and 1500 CFM on low.
Does the 18214 include a mount kit?
Yes, it comes with a standard mount kit for installation.
How thick is the 18214 fan?
It is 2-5/8 inches deep overall.
