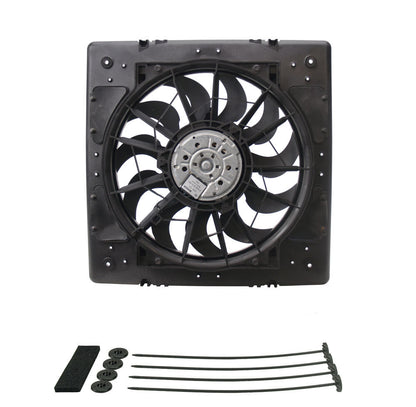

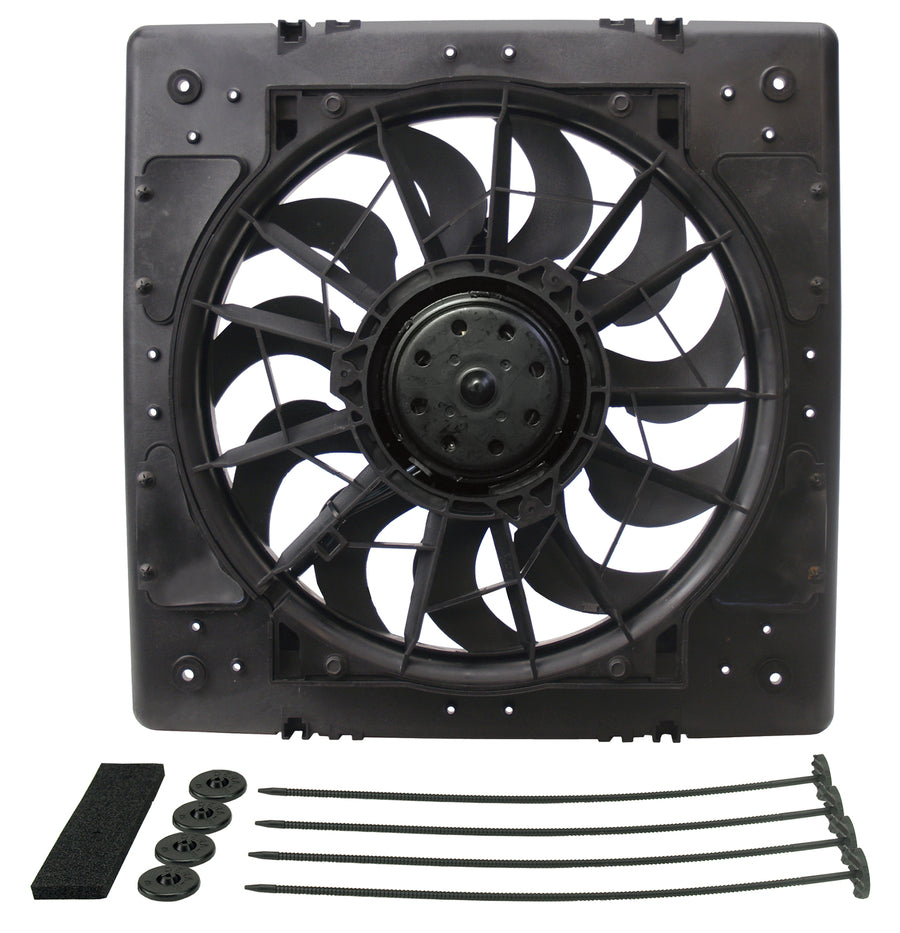

The Derale 16926 is a 12 inch high output single RAD puller fan built into an injection-molded plastic shroud with pressure relief vents. A 265 watt motor spins the fan to move 2000 CFM, making it a strong single-fan cooling solution. It is designed for puller (engine side) use only and comes with a complete mounting kit.
Specifications:
- Type: High output single RAD puller fan with molded shroud
- Fan size: 12 inches
- Shroud: Injection-molded plastic with pressure relief vents
- Motor: 265 watt high output
- Airflow: 2000 CFM
- Amp draw: 23.4 amps
- Airflow direction: Puller (engine side) only
- Width: 15-3/4 inches
- Height: 15-3/4 inches
- Depth: 1-7/8 inches (overall depth 3-1/4 inches)
- Mounting: 12-7/8 inch x 12-7/8 inch; includes 4 plastic through-core rods and clips, 4 foam mounting pads
- Part number: 16926
FAQ
How much air does the Derale 16926 move?
Its 12 inch fan and 265 watt motor move 2000 CFM.
Is the 16926 a puller or pusher fan?
It is for puller (engine side) applications only.
What shroud does the 16926 use?
It has an injection-molded plastic shroud with pressure relief vents.
What is included with the 16926?
It comes with a complete mounting kit that has 4 plastic through-radiator core rods and clips plus 4 foam mounting pads.
