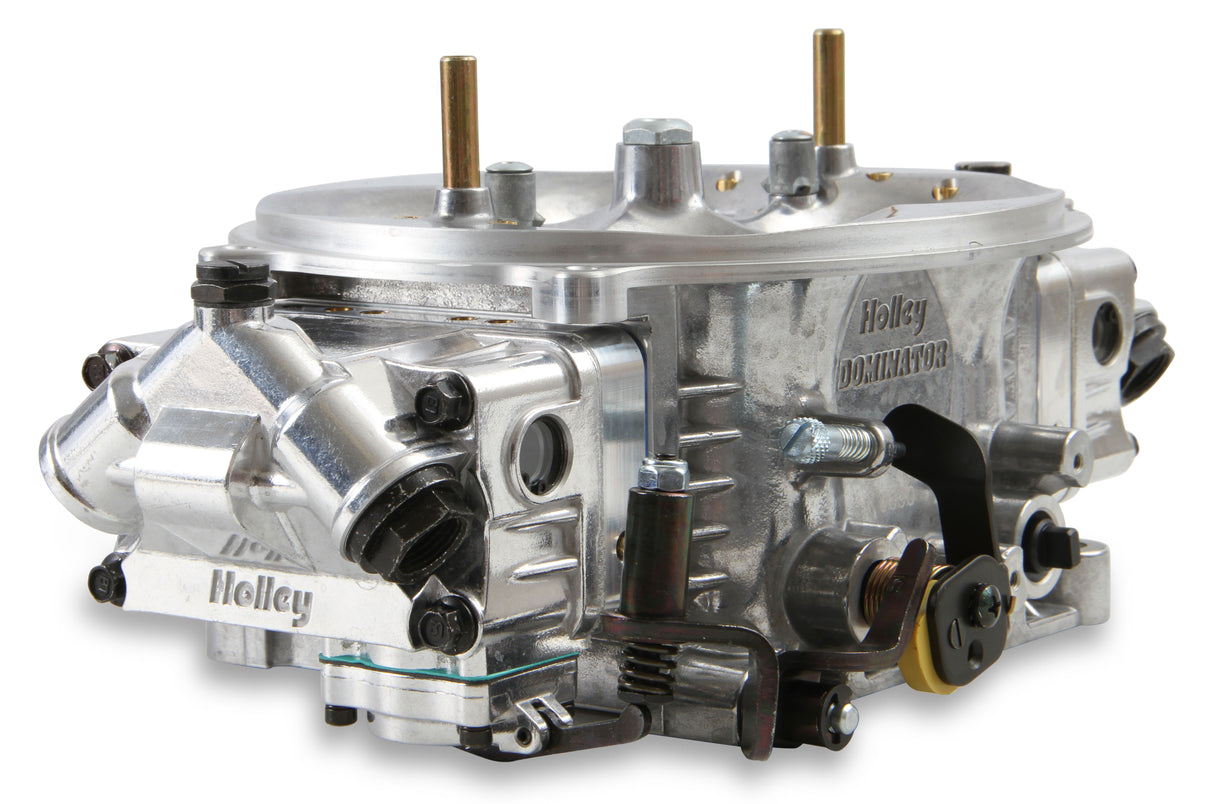

Holley 1050 CFM - 4500 - Mechanical Secondaries - Shiny - Gasoline 0-80688

Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley Sp Dominator carburetors feature the patent pending Gen 3 main-body which is 5/16 inch taller than the previous generation!

This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner flange is incorporated for easy air scoop attachment when using the available air scoop adapter.

Other features include all aluminum construction, tunable billet metering blocks, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance!

Features and Benefits:

• All aluminum construction saves 3.8lbs
• over original models (28 percent weight savings) Shiny with billet aluminum metering block and black hardware Designed for use on Drag race, Pro Street, or any high horsepower engines Calibrations optimized for today's race engines and new fuels Fully machined from venturi throat to throttle bore for predictable & repeatable performance Annular boosters deliver excellent signal and throttle response Screw in air bleeds offer precise tuning capabilities Metering blocks feature improved durability, true gasket sealing and adjustability ( power valve channel restrictors, intermediate restrictors & idle feed restrictors) Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle 4 corner idle allows you to precisely control your idle system Clear sight windows on fuel inlet side of bowls for easy and safe fuel level adjustments Notched float and jet extension are factory installed 5/8-18 inlet threads offer a large variety of plumbing options (uses standard 4500 fuel inlet spacing) Factory ready Tps mounting points for use with data acquisition systems (Holley Tps P/N 534-214 available) Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools Contoured hex head squirter screws for streamlined airflow Progressive secondary link installed for perfect off the line launches
• No linkage parts under the carburetor (1:1 wire link included in kit) 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run! Compatible with the Gen 3 Dominator 4-hole billet spacer P/N 17-86

Details:

• Barrel Quantity: 4.0
• Billet Color: Clear Sp Dominator
• Body Color: Polished
• Body Finish: Polished
• CFM: 1050.0
• Carburetor Material: Aluminum
• Carburetor Use: Professional Race
• Circuit: 2.0
• Condition: New
• Cubic Feet Per Minute Rating: 1050.0
• Finish: Shiny
• Flange Type: Dominator/4500
• Fuel Type: Gasoline
• Fuel Inlet: Dual
• Grade Type: Performance
• High Speed Air Bleed: 32.0
• Idle Air Bleed Size: 57.0
• Linkage Attached: Yes
• Marine Approved: No
• Marine Use: No
• Material: Aluminum
• Model: 4500
• Mounting Hole Quantity: 4.0
• Needle and Seat Size: 120;120
• Primary Jet Diameter: 84.0
• Primary Main Jet: 84.0
• Primary Power Valve: 5.5
• Primary Pump Nozzle Size: 35.0
• Secondaries: Mechanical
• Secondary Main Jet: 94.0
• Secondary Pump Nozzle Size: 35.0
• Spacer Included: No
• Supercharged Application: No
• Throttle Bore: 2.000 inch
• Venturii Size: 1.690 inch
• Warranty: Manufacturer's Limited 90 Day Warranty

Holley Dominator SP Carburetor 1050 CFM 4500 Mechanical Secondaries Idle Air Bleed Size 57.0 Shiny Gasoline Holley 0-80688
