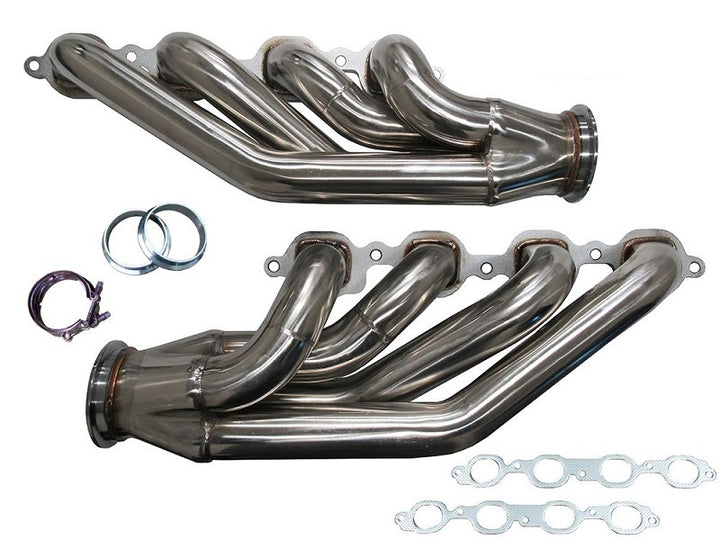

Building a custom turbo setup around a Gen 5 LT1 or LT4 engine? Speed Engineering's forward and upward facing turbo headers give you a solid foundation to work from. Built from polished 304 stainless steel with mandrel-bent primary tubes, CNC-machined flanges, and full TIG-welded construction, these headers are designed for custom turbo builds where a universal fit is needed rather than a vehicle-specific application.
⚠️ Important: These are completely universal headers not designed for any specific vehicle. A Camaro or Corvette water pump and other supporting components will be required for installation.
Features:
- 1-3/4" Primary Tubes — Sized for turbo applications on Gen 5 LT engines
- 3" Short Collector Design — Forward and upward facing for turbo placement flexibility
- Mandrel Bent Tubing — Consistent tube diameter throughout, no crimping or restriction
- CNC Machined Flanges — Precision fit at the cylinder head for a leak-free seal
- Polished 304 Stainless Steel Construction — Corrosion resistant, heat tolerant, and built to last
- Standard Graphite Manifold Gaskets Included
- Compatible with 5.3L, 6.2L, LT1, and LT4 Engines
- V8 Engines Only
Compatible Engines:
- GM Gen 5 5.3L LT
- GM Gen 5 6.2L LT1
- GM Gen 5 6.2L LT4
Frequently Asked Questions:
Q: What vehicles do these headers fit? These are completely universal headers and are not designed for any specific vehicle application. They are intended for custom turbo builds using Gen 5 LT1 or LT4 engines. A Camaro or Corvette water pump and other supporting components will be required for installation.
Q: What direction do the collectors face? The collectors face forward and upward, making these headers suited for custom turbo builds where turbocharger placement requires that orientation.
Q: What engines are these headers compatible with? These headers are compatible with GM Gen 5 5.3L, 6.2L LT1, and 6.2L LT4 V8 engines.
Q: What size are the primary tubes? The primary tubes are 1-3/4" with a 3" short collector design.
Q: What material are these headers made from? Polished 304 stainless steel with full TIG-welded construction and CNC-machined flanges.
Q: Are gaskets included? Yes. Standard graphite manifold gaskets are included with the headers.
Q: Are these headers street legal? No. These are race-only headers intended for closed-course competition use only. Installation on a street-driven vehicle may violate the Clean Air Act (42 U.S.C. 7522(a)(3)).
⚠️ Race Use Only: This product is manufactured and sold for installation on vehicles used solely for competition. Once installed, the vehicle may not be used, registered, or licensed for use on a public road or highway. Installation on a street-driven vehicle may violate the Clean Air Act 203(a)(3), 42 U.S.C. 7522(a)(3).
