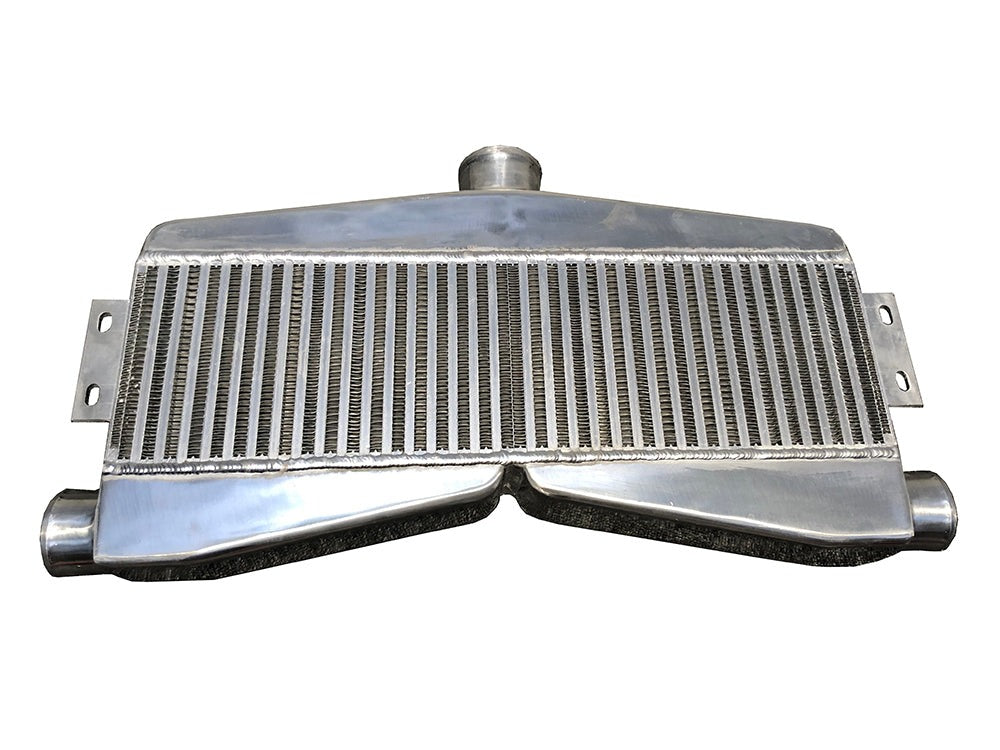

Looking for a quality air-to-air intercooler for your twin turbo build? Speed Engineering's aluminum intercooler delivers effective charge air cooling in a center exit design with side inlets — ideal for twin turbo layouts where each turbo feeds from opposite sides and the cooled charge exits from the center. Mounting brackets are included. A solid core component for any custom turbo build at a budget-friendly price point.
Note: Looking for a side exit intercooler instead? See part 32-1003 which features the same 3" outlet and 2.5" inlets in a side exit configuration.
Specifications:
- Inlet: 2.5" Side Inlets
- Outlet: 3" Center Exit
- Core Length: 24" (27.5" total with end tanks)
- Core Height: 12" (14.5" total with end tanks)
- Core Thickness: 3.5"
- Configuration: Center Exit / Side Inlets
Features:
- Air-to-Air Aluminum Construction — Effective charge air cooling for turbocharged applications
- 3" Center Exit / 2.5" Side Inlets — Ideal for twin turbo layouts with dual inlet feeds and a single center outlet
- Center Exiting Design — Flexible placement for twin turbo builds requiring center-mounted intercooler outlet routing
- Mounting Brackets Included — Ready to mount out of the box
- Compatible with Twin Turbo Applications
- Universal Fit — Not designed for any specific vehicle
Frequently Asked Questions:
Q: What are the dimensions of this intercooler? The core measures 24" in length (27.5" total with end tanks), 12" in height (14.5" total with end tanks), and 3.5" in thickness.
Q: What size are the inlet and outlet connections? The inlets are 2.5" on each side and the outlet is 3" center exit.
Q: What is the difference between this intercooler and part 32-1003? Both intercoolers share the same 3" outlet and 2.5" inlets and core dimensions. Part 32-1004 features a center exit with side inlets — ideal for twin turbo builds where each turbo feeds from opposite sides. Part 32-1003 features a side exit design. Choose based on your specific turbo layout and piping routing requirements.
Q: Will this work for a twin turbo setup? Yes. This intercooler is specifically well suited for twin turbo applications due to its center exit and dual side inlet configuration.
Q: Are mounting brackets included? Yes. Mounting brackets are included with the intercooler.
Q: Is this intercooler designed for a specific vehicle? No. This is a universal intercooler suitable for any custom turbo build where the dimensions and inlet/outlet sizing fit the application.
