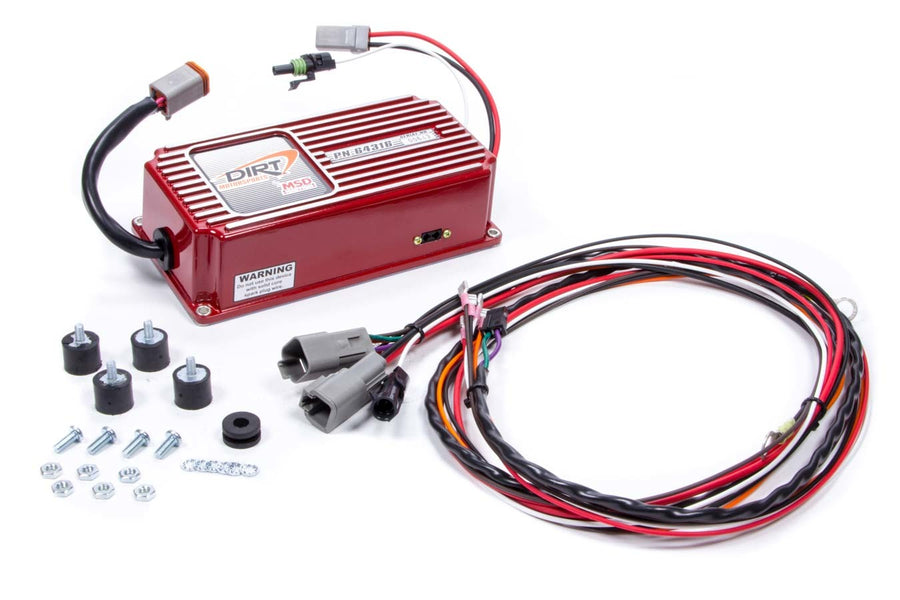

MSD MSD 6ALN Ignition Control, DIRT 64316
Specifications:
| 43 | Male Female |
| 342 | 3 |
| 3390 | Performance |
| 31 | 2.8 |
| Ignition Type | Performance |
| 14 | 11 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male Female |
| 42 | 9 |
| 24 | 9.8 |
| Brand | MSD |
| Category | Ignition |
| Emission Code | 4 |
| Primary Voltage | 470 |
| Product Type | Ignition Box |
| Sub Category | Control Modules |
| Voltage Required | 12-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Maximum RPM | 15,000 |
| Spark Energy (mJ per spark) | 110 |
| 43 | Male Female |
| 342 | 3 |
| 3390 | Performance |
| 31 | 2.8 |
| Ignition Type | Performance |
| 14 | 11 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male Female |
| 42 | 9 |
| 24 | 9.8 |
| Brand | MSD |
| Category | Ignition |
| Emission Code | 4 |
| Primary Voltage | 470 |
| Product Type | Ignition Box |
| Sub Category | Control Modules |
| Voltage Required | 12-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Maximum RPM | 15,000 |
| Spark Energy (mJ per spark) | 110 |
| Description_INV | MSD 6ALN Ignition Control, Mag/Pts, Dirt |
| Description_ASC | FIXED 7,600 RPM REV LIMITER |
| Description_DES | MSD 6ALN Ignition Control, DIRT |
| Description_EXT | Extreme duty 6ALN with fixed 7,600 RPM rev limiter can handle the harshest racing environments. |
| Description_MKT | The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure. |
| Description_MKT | Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. |
| Description_FAB | Clear plastic base plate for easy tech inspection |
| Description_FAB | 6-pin Weathertight connector, mandatory for NASCAR use |
| Description_FAB | 110 millijoules per spark up to 15,000 RPM |
| Description_FAB | Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection |
| Description_FAB | Supplied with rubber shock mounts |
| Description_FAB | Built-in Soft Touch Rev Control is fixed to 7,600 RPM |
| Description_FAB | 470 primary voltage output to coil |
| Description_FAB | Accepts breaker points, amplifier and magnetic pickup trigger inputs |
| Description_FAB | Multiple spark, capacitive discharge ignition control |
| Description_FAB | Works on 12 - 18 volt electrical system |
| Description_FAB | Multiple sparks for 20 degrees of crankshaft rotation |
| Description_FAB | Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops |
| Description_FAB | Circuit board is encased in a clear two part silicone elastomer |
