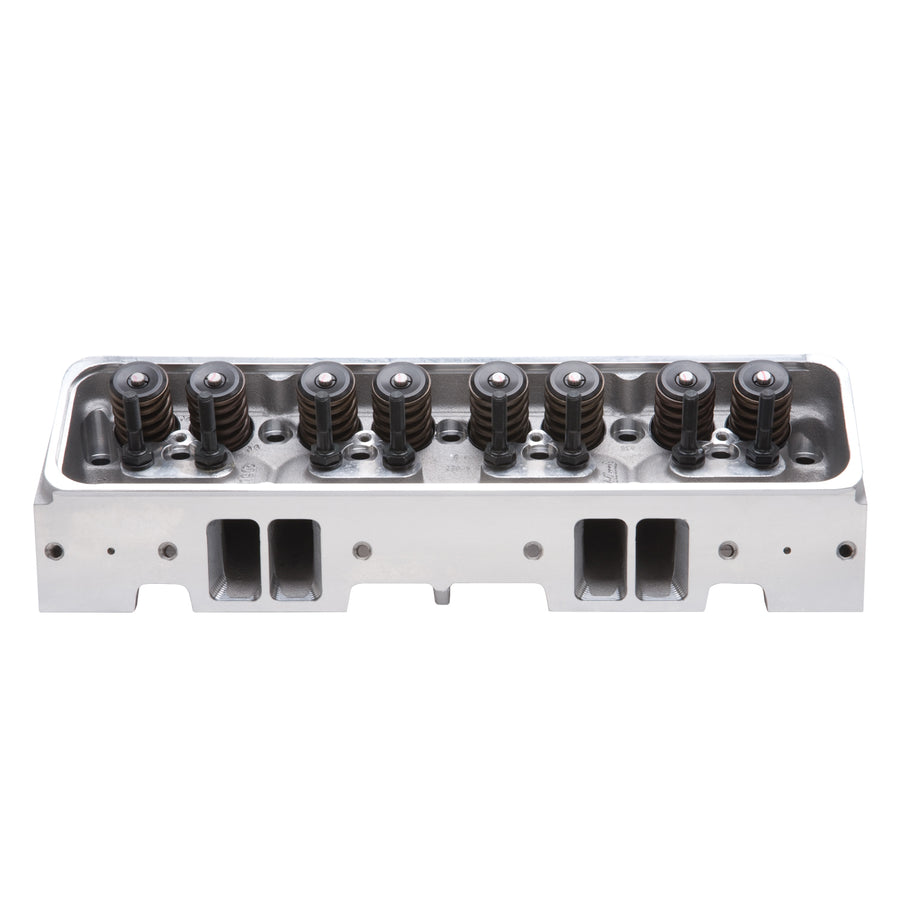

Edelbrock Engine Cylinder Head 61905
Specifications:
| Exhaust Valve Diameter | 1.55 |
| 9040 | D-215-70 |
| CNC Ported | No |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 60 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Family | Performer |
| EGR Port | No |
| Horsepower | 300-450 |
| Seat Material | Ductile Iron |
| Construction Type | Complete |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Combustion Chamber Volume | 54 |
| Rocker Arm Stud Diameter | 0.4375 |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.3125 |
| Retainer Included | Yes |
| Push Rod Diameter | (Suggested) 0.375 |
| Valve Included | Yes |
| Intake Valve Diameter | 1.94 |
| Valve Spring Diameter | 1.46 |
| Series | Performer |
| Material | Aluminum |
| Intake Runner Volume | 170 |
| Valve Angle | 23 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Valve Springs Included | Yes |
| Valve Spring Maximum Lift | 0.600 |
| Camshaft Type | Hydraulic Roller |
| Grade Type | Performance |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock Chevy LT1 Prf Cylinder Head |
| Description_LAB | Performer LT1 Cylinder Head (54cc) |
| Description_ASM | Chevrolet:Small-Block Gen II LT1:350 (5.7L) |
| Description_EXT | Edelbrock part #61905 Performer small-block Chevy LT1 (1992-97) Performer cylinder heads deliver 24 horsepower over stock and raise the peak power level by 500 rpm. |
| Description_MKT | Edelbrock part #61905 Performer small-block Chevy LT1 (1992-97) Performer complete cylinder head delivers 24 horsepower over stock and raise the peak power level by 500 rpm. This head is designed to accept factory style self-aligning rockers. This Performer LT1 cylinder head is 50-state street legal and accept factory center bolt valve covers. It features exhaust ports in the stock location for use with stock or aftermarket exhaust manifolds and headers. Match with RPM Air-Gap intake #7107, throttle body #3809 and camshaft #2108 for the Total Power Package combo. Cylinder Head Specifications: - Exhaust port location: Stock - Spark plug fitment: 14mm x 3/4 reach, gasket seat |
| Description_TRA | Head Bolt Kit: Edelbrock #8550 |
| Description_TRA | Head Gasket: Edelbrock #7342 |
| Description_TRA | Intake Gasket: Fel-Pro #7243 |
| Description_TRA | Exhaust Gasket: Edelbrock #7248 |
| Description_TRA | Recommended spark plugs: Champion RC12YC |
| Description_DEF | Engine Cylinder Head |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1994 | Buick | Commercial Chassis | ||
| 1995 | Buick | Commercial Chassis | ||
| 1996 | Buick | Commercial Chassis | ||
| 1994 | Buick | Roadmaster | ||
| 1995 | Buick | Roadmaster | ||
| 1996 | Buick | Roadmaster | ||
| 1993 | Chevrolet | Camaro | ||
| 1994 | Chevrolet | Camaro | ||
| 1995 | Chevrolet | Camaro | ||
| 1996 | Chevrolet | Camaro | ||
| 1997 | Chevrolet | Camaro | ||
| 1994 | Chevrolet | Caprice | ||
| 1995 | Chevrolet | Caprice | ||
| 1996 | Chevrolet | Caprice | ||
| 1994 | Chevrolet | Commercial Chassis | ||
| 1992 | Chevrolet | Corvette | ||
| 1993 | Chevrolet | Corvette | ||
| 1994 | Chevrolet | Corvette | ||
| 1995 | Chevrolet | Corvette | ||
| 1996 | Chevrolet | Corvette | ||
| 1994 | Chevrolet | Impala | ||
| 1995 | Chevrolet | Impala | ||
| 1996 | Chevrolet | Impala | ||
| 1993 | Pontiac | Firebird | ||
| 1994 | Pontiac | Firebird | ||
| 1995 | Pontiac | Firebird | ||
| 1996 | Pontiac | Firebird | ||
| 1997 | Pontiac | Firebird |
