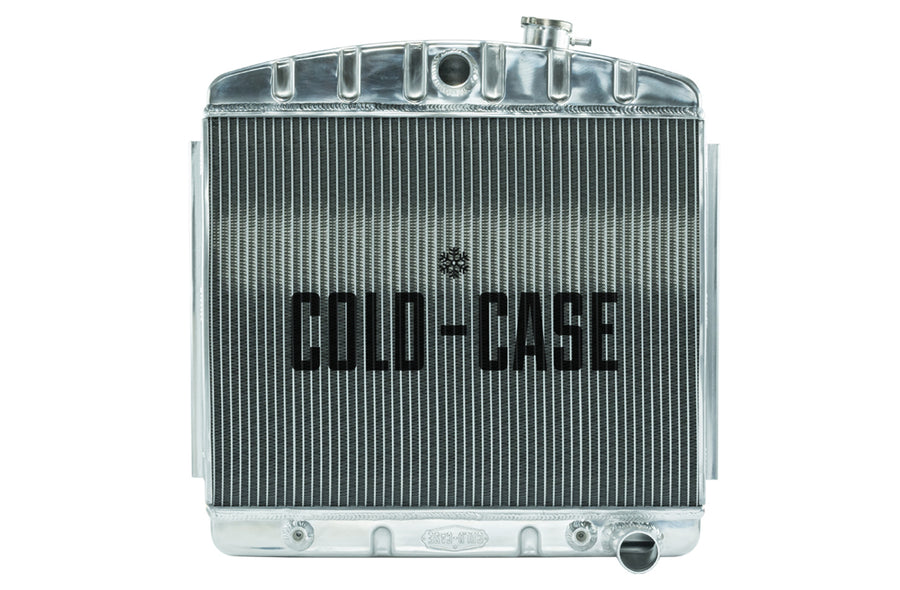

1955-1957 Chevrolet Tr-Five Aluminum Performance Radiator. V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 55-57 Chevy (V8 position mount)
- Old Part Number: RPE562
Radiator Specs
- Core Height 17 inch
- Core Width 22 inch
- Overall Height 23.5 To Cap
- Overall Width 23.5 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25" Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
COLD-CASE Radiators 55-57 Tri-5 Chevy Aluminum Radiator (V8 Mount) Cold Case Radiators CHT562A
Specifications:
| Country of Origin | CHN |
| Sold As | Each |
| UPC | 846861012222 |
| Availability | Available |
| Thickness | 3.0 Inch |
| Universal | No |
| Cylinders | V8 |
| Fits | 55-57 Chevy V8 mount |
| Overall Width | 23.5 Inch |
| Old Part Number | RPE562 |
| Core Height | 17 Inch |
| Core Width | 22 Inch |
| Overall Height | 23.5 Inch |
| Upper Hose | 1.5 Inch |
| Lower Hose | 1.77 Inch |
| Fins Per Inch | 16 |
| Trans Cooler Fitting Size | 5/16 Inch Inverted Flare |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1955 | Chevrolet | Nomad | ||
| 1956 | Chevrolet | Nomad | ||
| 1957 | Chevrolet | Nomad | ||
| 1955 | Chevrolet | Bel Air | ||
| 1956 | Chevrolet | Bel Air | ||
| 1957 | Chevrolet | Bel Air | ||
| 1955 | Chevrolet | Bel Air | Beauville | |
| 1956 | Chevrolet | Bel Air | Beauville | |
| 1955 | Chevrolet | Bel Air | Nomad | |
| 1956 | Chevrolet | Bel Air | Nomad | |
| 1957 | Chevrolet | Bel Air | Nomad |
