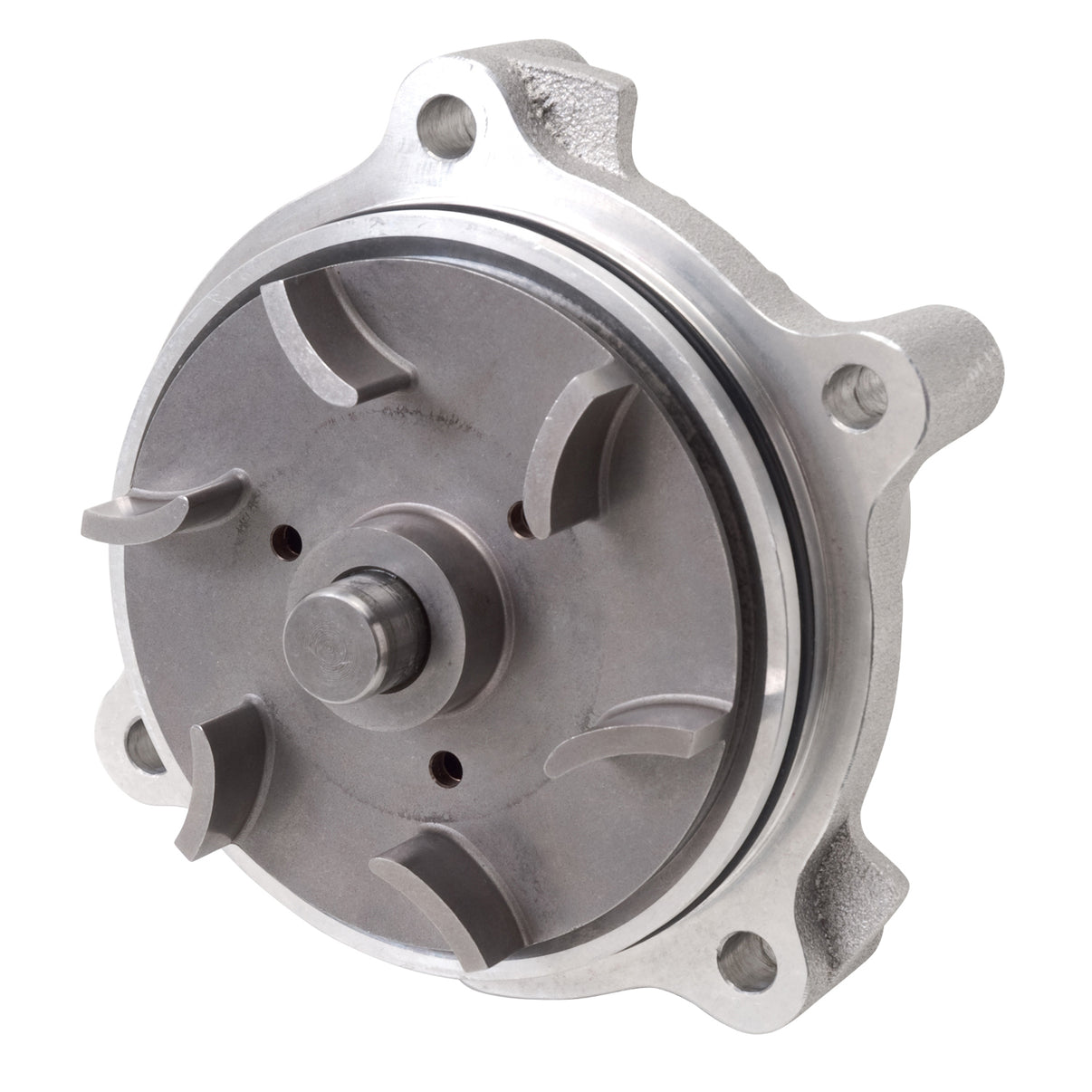

Edelbrock Engine Water Pump 8803
Specifications:
| Impeller Rotation | Reverse |
| Casting Number | 8003 |
| Related Cooling Fan Components | No |
| Water Pump Drive Type | Serpentine Belt |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fan Clutch Included | No |
| Mounting Hole Quantity | 4 |
| Impeller Vane Quantity | 6 |
| Housing Material | Aluminum |
| Mounting Hardware Included | No |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Pulley Included | No |
| Includes Back Housing | No |
| Installation Warnings | Yes |
| Thermostat And Housing Included | No |
| Description_ABR | Water Pump |
| Description_INV | Water Pump Ford 4.6L V8 Mustang Short |
| Description_LAB | Water Pump Ford 4.6L V8 Mustang Short |
| Description_ASM | Ford:Mustang Cobra:281 (4.6L) |
| Description_ASM | Ford:Mustang GT:281 (4.6L) |
| Description_ASM | Ford:Mustang Mach 1:281 (4.6L) |
| Description_EXT | Water Pump Ford 4.6L V8 Mustang Short The Edelbrock aluminum water pump is a heavy duty water pump for both street and racing applications |
| Description_MKT | The Edelbrock part #8803 Short Water Pump designed for Ford 4.6L V8 Mustangs is ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock has designed these "Super Cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance water pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_TRA | Customers of this vintage should measure their hub height before installing to determine the correct pump for their vehicle |
| Description_TRA | The #8803 has a hub height of 2.58", while the #8804 has a hub height of 3.43" |
| Description_TRA | Installation is the same as for original equipment water pumps. Consult service manual for specific procedures |
| Description_TRA | 2001 model year Mustang GTs and Cobras were equipped with either the long (#8803) or short (#8804) style water pump |
| Description_DEF | Engine Water Pump |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2002 | Ford | Mustang | Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish | |
| 2003 | Ford | Mustang | Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish | |
| 2004 | Ford | Mustang | Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish,Aluminum; Short Style; 3/4 in. Ball/Ball Bearing; 2.58 in. From Block To Hub Height; Satin Finish |
