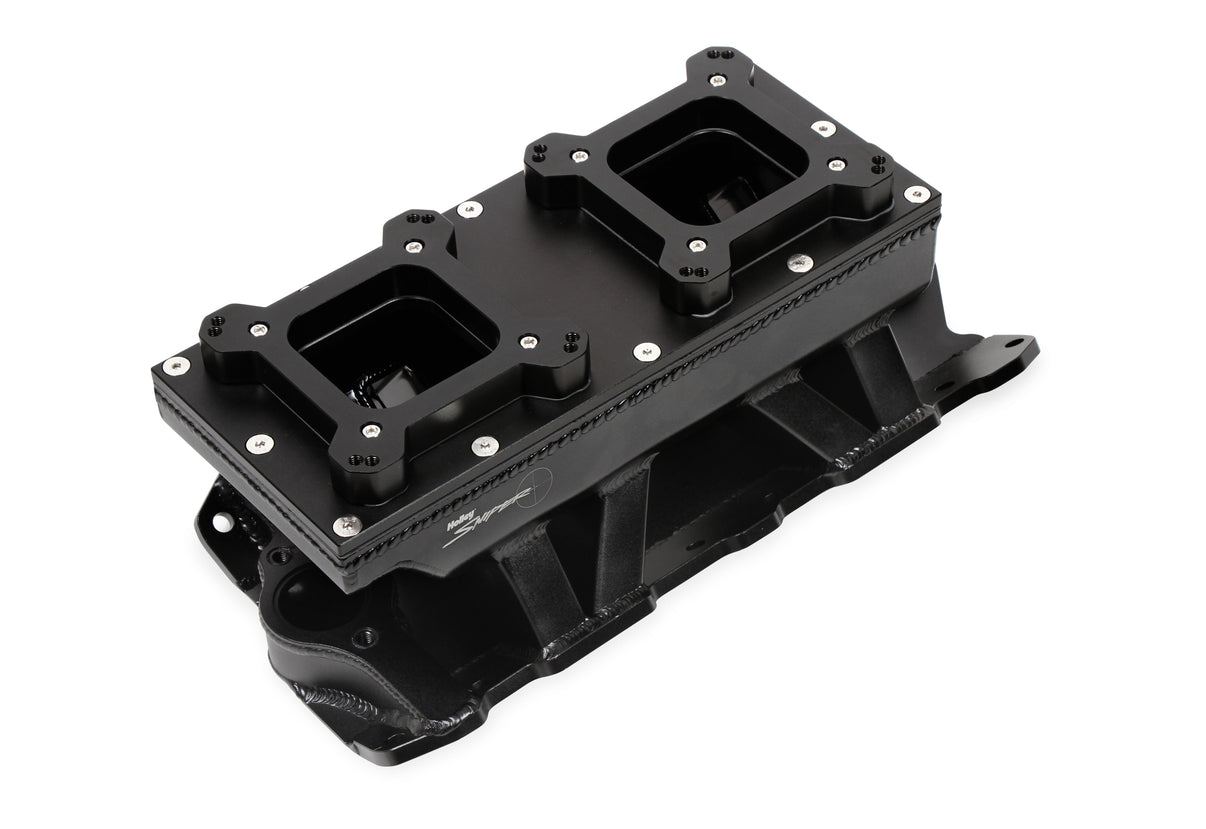

Holley Sniper EFI Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy 825124
Specifications:
| Basic Operating RPM Range | 1800-7000 |
| Brand | Holley Sniper EFI |
| Carb Flange Center-to-Center | 8.50" |
| 10653 | Dominator/4500 |
| 10650 | 2 |
| 10652 | No |
| Category | Sniper Intake Manifolds SP |
| 9063 | No |
| 17 | Black |
| 158 | Fabricated |
| 5337 | Rectangle |
| 6621 | 9.025 |
| 8095 | No |
| Emission Code | 4 |
| Engine | Chevrolet Small Block Gen I |
| Flange Size | 4150 |
| Flange Style | 4150 Square Bore |
| 6643 | 8.503 |
| 906 | No |
| 10644 | No |
| 353 | No |
| 3390 | Performance |
| 10651 | No |
| 10 | Aluminum |
| 10648 | No |
| Plenum Finish | Black |
| Port Size | 1.90" x 1.15" |
| Product Type | Intake Manifold |
| 6645 | 8.503 |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Style | Carbureted |
| 10646 | 3.6 |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Vacuum Ports | None |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | SNIPER SBC C |
| Description_SHO | SNIPER SHEET METAL |
| Description_INV | SNIPER SBC CARBURETED IM 2 X 4150 CHANGE |
| Description_ASC | Not Compatible with Large Cap HEI Distributors |
| Description_DES | Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy |
| Description_EXT | Fabricated Intake Manifold SBC Single Plane Carbureted (2 x 4150 style flange changeable plate) Black with Sniper logo |
| Description_MKT | Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity. |
| Description_MKT | Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds. |
| Description_FAB | Available in Silver and Black Finishes |
| Description_FAB | Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders |
| Description_FAB | 100% TIG welded |
| Description_FAB | EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo) |
| Description_FAB | Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms |
| Description_FAB | 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions |
| Description_FAB | NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options) |
