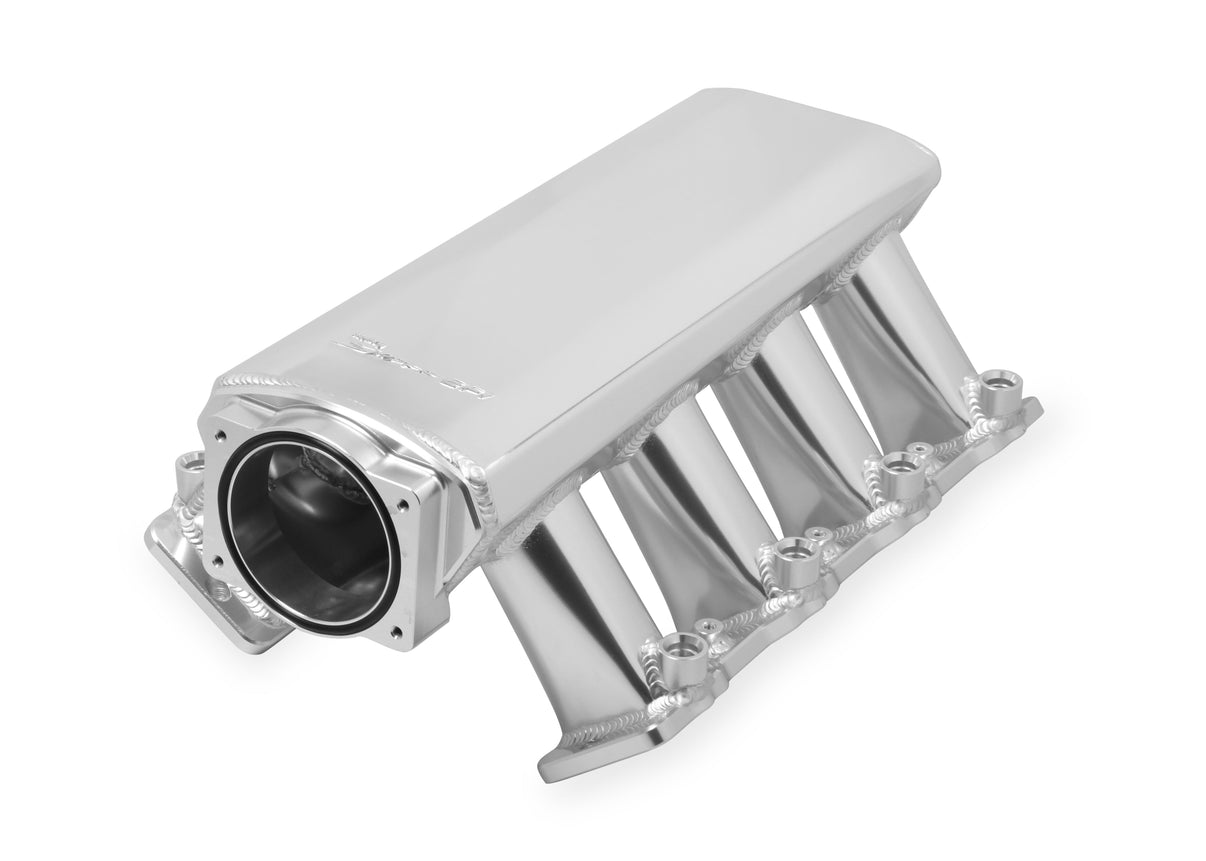

Holley Sniper EFI Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92 822031-1
Specifications:
| Basic Operating RPM Range | 2500-7000 |
| Brand | Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Engine |
| 9063 | No |
| 17 | Silver |
| 158 | Fabricated |
| 5337 | Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS3/L92 |
| Flange Style | N/A |
| 6643 | 7.952 |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Style Provision | EV1 |
| 10651 | Yes |
| Manifold Type | Fabricated |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Silver |
| Product Type | Intake Manifold |
| 6645 | 7.165 |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | No |
| Runner Length | 5.512" (140mm) |
| Single Or Dual Plane Type | Single |
| Style | EFI |
| Sub Category | Cylinder Block Components |
| 10646 | 92 |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 92mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning | California Proposition 65 |
| Description_ABR | SNIPER EFI L |
| Description_SHO | SNIPER EFI SHEET |
| Description_INV | SNIPER EFI LS3/L92 FABR. IM, EFI, 92MM |
| Description_ASC | *** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment *** |
| Description_DES | Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92 |
| Description_EXT | Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent. |
| Description_MKT | Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! |
| Description_FAB | 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes |
| Description_FAB | The Sniper intake will only accept EV1 style injectors. |
| Description_FAB | Provision for MAP sensor located on rear of plenum |
| Description_FAB | Available in 92mm and 102mm bore Throttle Body Openings |
| Description_FAB | 100% TIG welded |
| Description_FAB | EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved) |
| Description_FAB | Available for EFI and Carbureted applications with custom Holley Sniper logo |
| Description_FAB | Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders |
