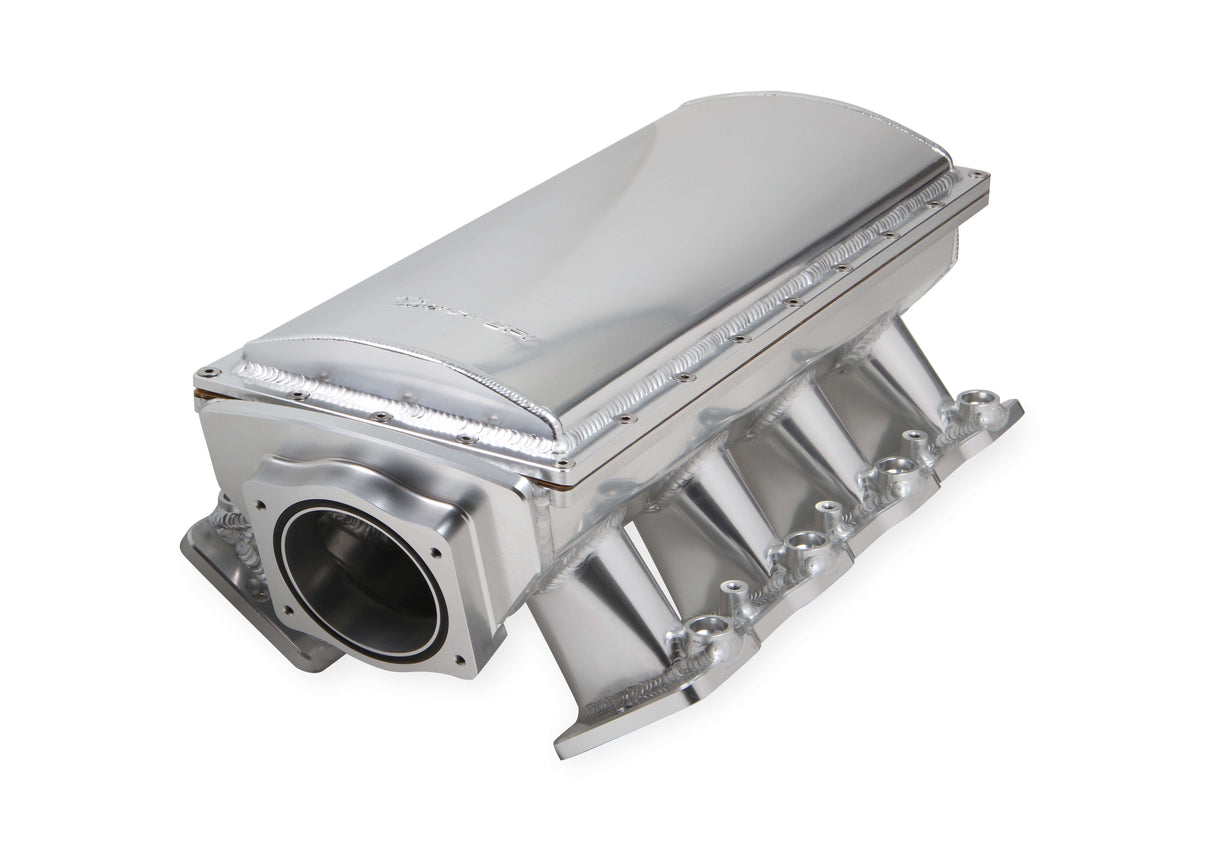

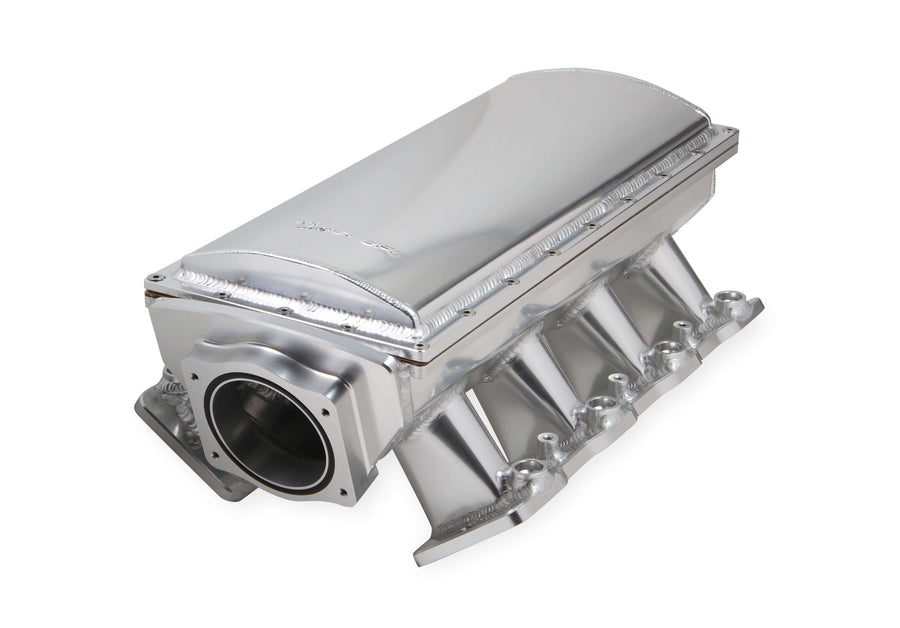

Holley Sniper EFI Sniper EFI Fabricated Race Series Intake Manifold - GM LS3/L92 - 90mm - Silver 838231
Specifications:
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Sniper EFI Intakes |
| 9063 | No |
| 17 | Silver |
| 158 | Fabricated |
| 5337 | Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS3/L92 |
| Flange Style | N/A |
| 6643 | 9.62 |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Style Provision | LS3/L92 EV6 USCAR |
| 10651 | Yes |
| Manifold Type | Fabricated |
| 10 | Aluminum |
| 10648 | No |
| Plenum Finish | Silver |
| Product Type | Intake Manifold |
| 6645 | 9.015 |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | No |
| Runner Length | 5.512" (140mm) |
| Single Or Dual Plane Type | Single |
| Style | EFI |
| 10646 | 90 |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 90mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | SNIPER EFI L |
| Description_SHO | SNIPER EFI FABRICATE |
| Description_INV | SNIPER EFI LS3 HI-RAM 90MM SILVER |
| Description_DES | Sniper EFI Fabricated Race Series Intake Manifold - GM LS3/L92 - 90mm - Silver |
| Description_EXT | Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver |
| Description_MKT | Continued feedback from racers and install shops, related to our original line of EFI intakes, were critical in the development of our Race Series line of fabricated intake manifolds. The Race Series Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. |
| Description_MKT | Holley Sniper EFI Fabricated Manifolds continue to push the aftermarket by introducing our latest Race Series line of intakes for GM LS3/L92 engine platform. |
| Description_MKT | Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. |
| Description_FAB | Product includes all gaskets and hardware for a hassle-free installation |
| Description_FAB | Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response |
| Description_FAB | 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability |
| Description_FAB | Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications |
| Description_FAB | 100% TIG welded for strength and durability |
| Description_FAB | Silver finish creates high impact under-hood styling |
| Description_FAB | Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM |
| Description_FAB | 90mm throttle bore opening for increased air flow |
| Description_FAB | Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications |
| Description_FAB | Removable top for ease of inspection, modification, and addition of sensors |
| Description_FAB | Includes 3/8" Fuel rail kits (Sniper logo laser engraved) |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2015 | Chevrolet | Camaro | SS | |
| 2015 | Chevrolet | Camaro | ZL1 | |
| 2010 | Chevrolet | Corvette | Base | |
| 2011 | Chevrolet | Corvette | Base | |
| 2012 | Chevrolet | Corvette | Base | |
| 2013 | Chevrolet | Corvette | Base | |
| 2012 | Chevrolet | Corvette | Grand Sport | |
| 2013 | Chevrolet | Corvette | Grand Sport | |
| 2012 | Chevrolet | Corvette | ZR1 | |
| 2013 | Chevrolet | Corvette | ZR1 | |
| 2016 | Chevrolet | SS | Base | |
| 2017 | Chevrolet | SS | Base | |
| 2009 | Pontiac | G8 | GT |
