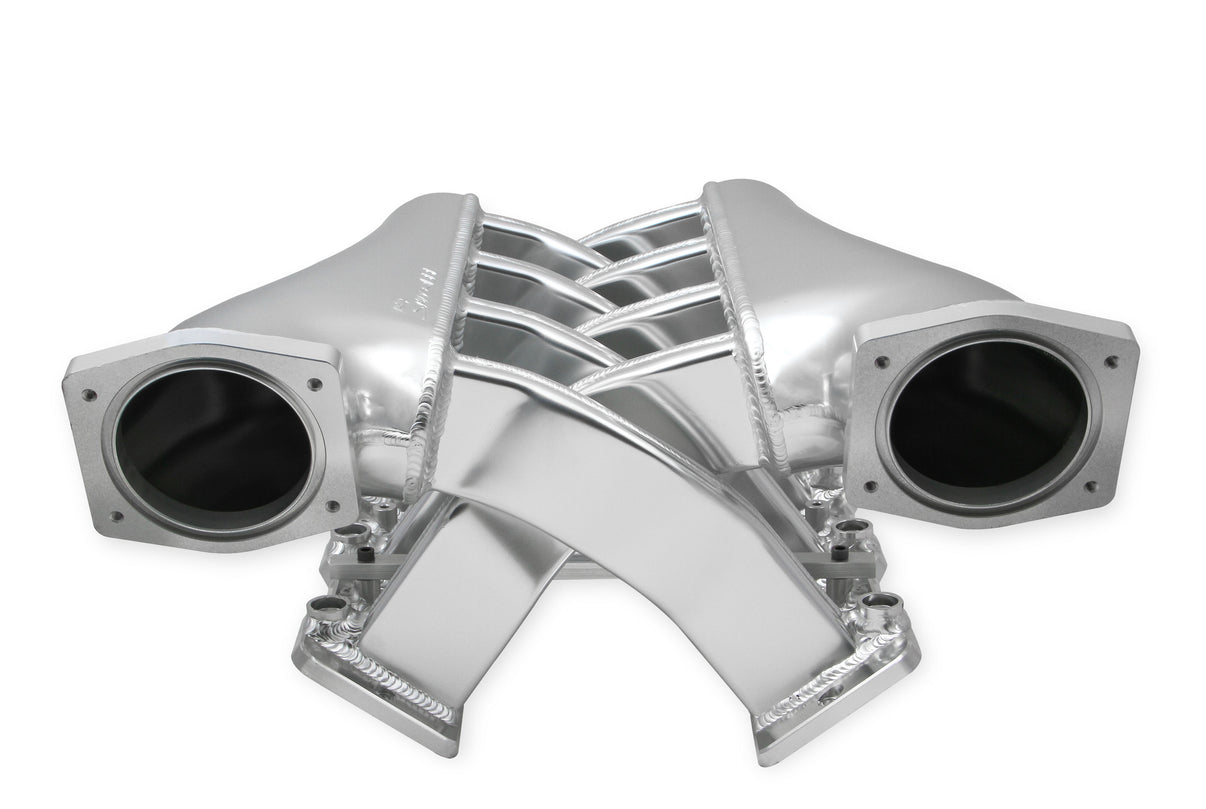

Holley Sniper EFI Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS1/2/6, Rail Kit - Slvr 820201
Specifications:
| Basic Operating RPM Range | 1500-6500 |
| Brand | Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Sniper EFI Intakes |
| 9063 | No |
| 17 | Silver |
| 158 | Fabricated |
| 5337 | Cathedral |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Flange Style | N/A |
| 6643 | 11.802 |
| Front Width | 19.4292 inch |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Style Provision | LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR |
| 10651 | No |
| Manifold Type | Fabricated |
| 10 | Aluminum |
| 10648 | No |
| 10647 | Polished |
| Product Type | Intake Manifold |
| 6645 | 9.738 |
| Rear Width | 13.2844 inch |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | No |
| Runner Length | 4.921" (125mm) |
| 6642 | Single Plane |
| Style | EFI |
| 10646 | 92 |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Throttle Bore | 92mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | SNIPER EFI L |
| Description_SHO | SNIPER EFI FABRICATE |
| Description_INV | SNIPER EFI LS1/2/6 HI-RAM IM, EFI, 92MM |
| Description_DES | Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS1/2/6, Rail Kit - Slvr |
| Description_EXT | Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish |
| Description_MKT | The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports. |
| Description_MKT | Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. |
| Description_MKT | Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. |
| Description_MKT | These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower. |
| Description_MKT | Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! |
| Description_FAB | Includes 3/8" Fuel rail kits (Sniper logo laser engraved) |
| Description_FAB | Twin 92mm throttle bore openings for increased air flow |
| Description_FAB | Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM |
| Description_FAB | 100% TIG welded for strength and durability |
| Description_FAB | Silver finish creates high impact under-hood styling |
| Description_FAB | Dual plenum design ideal for street max effort engines and boosted applications |
| Description_FAB | Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM |
| Description_FAB | Product includes all gaskets and hardware for a hassle-free installation |
| Description_FAB | Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response |
| Description_FAB | 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability |
