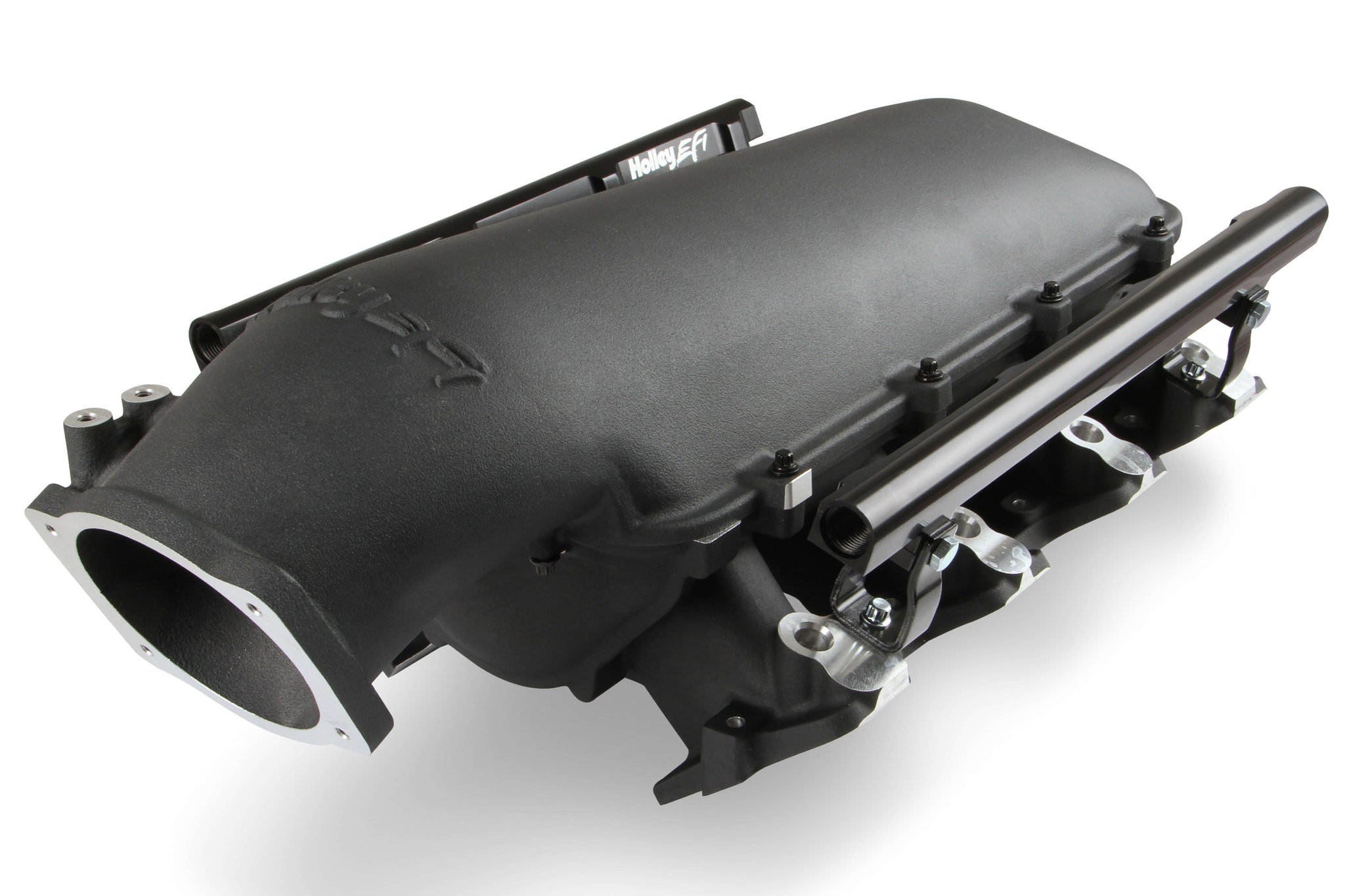

Holley EFI Lo-Ram Manifold Kit - LS3 Top-feed. Single Injector Black Finish 300-679BK
Specifications:
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Engine |
| 9063 | No |
| 17 | Black |
| 158 | Cast |
| 5337 | Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Flange Style | EFI |
| Front Maximum Height | 9.25" without Intercooler |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Quantity | Single |
| Inlet Location | Top |
| 10651 | No |
| Manifold Type | Lo-Ram |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Engine |
| 9063 | No |
| 17 | Black |
| 158 | Cast |
| 5337 | Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Flange Style | EFI |
| Front Maximum Height | 9.25" without Intercooler |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Quantity | Single |
| Inlet Location | Top |
| 10651 | No |
| Manifold Type | Lo-Ram |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | LS3 LO RAM M |
| Description_SHO | HOLLEY LO-RAM |
| Description_INV | LS3 LO-RAM MANIFOLD KIT, SINGLE INJECTOR |

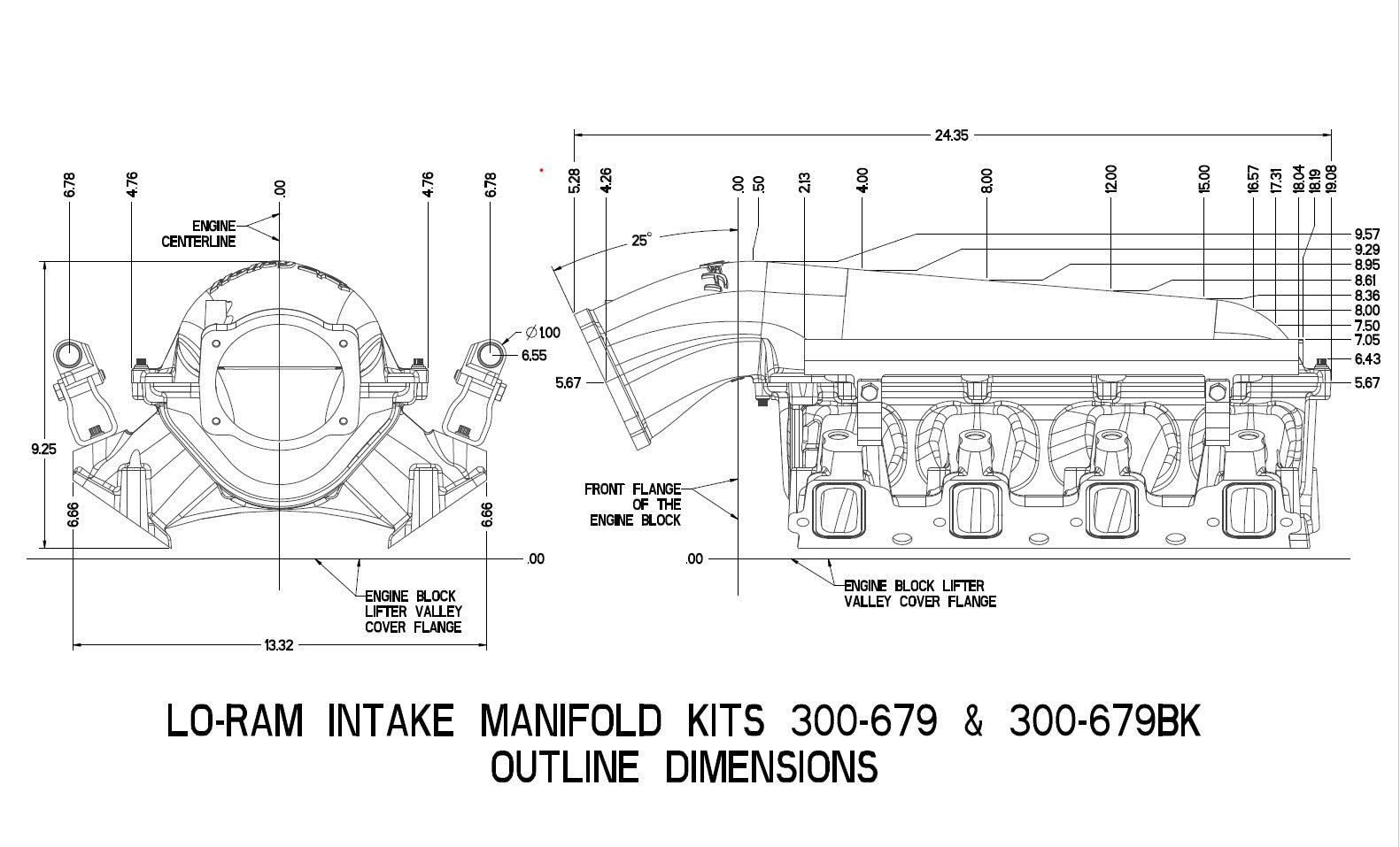

| Description_ASC | Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height:Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed)Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness |
| Description_DES | Holley Lo-Ram Manifold Kit Single Injector- Black - GM LS3/L92 |
| Description_EXT | Lo-Ram Manifold Kit - LS3 Top-feed. Single Injector Black Finish |
| Description_MKT | applications and the 105 mm throttle body part number 112-581 or similar models. The base intake |
| Description_MKT | injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel |
| Description_MKT | ports (8 AN) |
| Description_MKT | with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram |
| Description_MKT | intake manifolds are designed for forced induction (supercharged or turbocharged) engine |
| Description_MKT | manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water |
| Description_MKT | intercooler in a top-feed configuration. Additional manifold designs include both single and dual |
| Description_MKT | rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring |
| Description_MKT | The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped |
| Description_FAB | Modular design allowing the use of the included plenum entry |
| Description_FAB | Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. |
| Description_FAB | Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN) |
| Description_FAB | High volume fuel rails for eight and sixteen injector configurations. |
| Description_FAB | Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads |
| Description_FAB | Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration |
