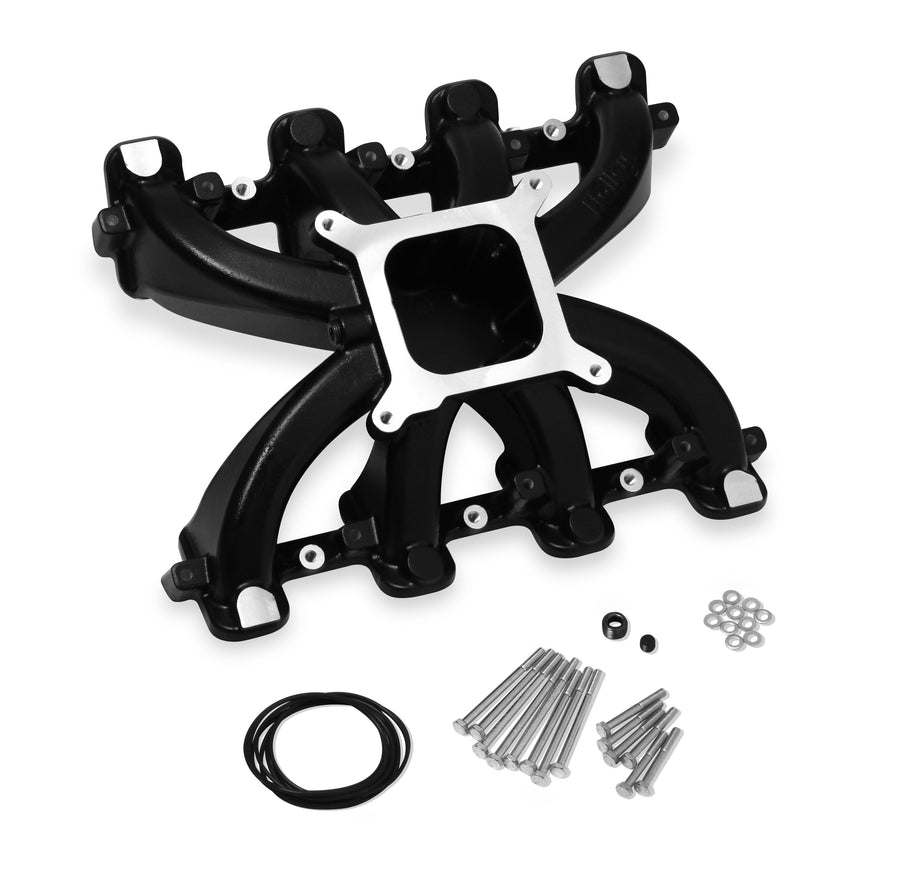

Carbureted Single plane intake manifold. Fits all Gm Ls Gen Iii or Iv engines equipped with LS3/L92 style rectangular port cylinder heads
Features and Benefits:
- Weight - 11.5 lbs
- Minimum carb flange height - fit in vehicles with minimum hood modifications Height (front) - 5.417 inch to the lifter valley cover flange at the engine block front flange 2500-7000 RPM power band Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM 4150 Square bore flange (accepts up to 1.75 inch diameter throttle bores) Port size - 2.50 inch height x 1.15 inch wide Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality Includes Viton O-ring intake to cylinder head gaskets - Viton is a registered trademark of DuPont Performance Elastomers Cast aluminum construction - great manifold for centrifugal blower, turbocharged or Nos power adder applications
Associated Comments:
- Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Details:
- Basic Operating RPM Range: 2500-7000 RPM
- Cnc Ported: No
- Carburetor Flange: Square/4150
- Carburetor Quantity: 1.0
- Carburetor Studs Included: No
- Color: Black
- Construction: Cast
- Cylinder Head Port Shape: Cathedral
- Deck Height: 9.24 Inch
- Egr Port: No
- Engine: Gm LS3/L92
- Flange Style: 4150 Square Bore
- Front Maximum Height: 5.417 Inch
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Single Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Black
- Rear Maximum Height: 5.417 Inch
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 3.6
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty
Holley Single Plane Carbureted Intake GM LS3/L92 Black Ceramic Coated Carbureted Single Plane Intake Manifold Fits All GM LS Gen III or IV Engines Equipped with LS3/L92 Style Rectangular Port Cylinder Heads Holley 300-131BK
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 90127715901 |
| Availability | Available |
| Universal | No |
