Introducing the latest addition to the acclaimed Hi-Ram EFI intake manifold series, originally designed for the Gm Gen Iv LS3 engine. The Holley Sbc Hi-Ram is engineered to elevate your vehicle's performance to new heights.
Unleash the Power of Your Engine with the Holley Sbc Hi-Ram! The 300-951, a hood-height friendly Hi-Ram variant features a front-feed plenum and a forward-facing throttle body flange.
This beast can handle up to a 95mm Ls 4-bolt throttle body, including Dbw throttle bodies. It's the ultimate upgrade, replacing the popular Holley/Weiand Stealth-Ram intake manifold, renowned for boosting the performance of 1985-92 Gm 5.7L Tpi fuel-injected engines.
The versatile fuel rail kits are compatible with both long and short type fuel injectors, ensuring flexibility and convenience. Experience the power and aesthetics of high-end billet and fabricated racing intake manifolds, all at the cost-effective price of cast aluminum.
Perfectly designed to fit under the Oe hood of Gen 1, 2, & 3 Camaros and Firebirds, the 300-951 is your ticket to transforming your ride into a high-performance machine!
Features and Benefits:
- Power Band: 1500-8000 RPM Black anodized EFI fuel rails are machined for -8AN O-ring fittings and come included with these EFI Hi-Ram kits
- The coolant outlet is a standard Small Block Chevy thermostat housing flange and (1) 1/2 NPT and (2) 3/8 NPT coolant ports are provided
- Uses drive by wire or cable actuated Gm Gen Iv Ls 4-bolt throttle bodies Requires the use of early type Gm or small cap Msd or Holley Distributors
- Not compatible with Hei distributors Throttle Cable Bracket is supplied in the kit Plenum Top Gasket Type - 3/32 inch Round O-ring Cord Map sensor port is for a Gm Gen Iv Ls Map sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum Is a hood-height friendly Hi-Ram variation and compatible with Oe hoods for Gen 1, 2, & 3 Camaros and Firebirds
- Should be compatible with most applications with a mild cowl induction hood The Small Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum layout or with a hood-height friendly 95mm front-feed plenum layout Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish Designed for 1955-86 265-400 Gen 1 Chevy engines fitted with cylinder heads having a standard intake manifold flange configuration
- Not designed for raised intake port, 18 degree, or L31 Vortec type cylinder heads
- 1.95 inch tall x 1.25 inch wide port flange openings, uses Mr
- Gasket intake manifold gasket #5281
Details:
- Basic Operating RPM Range: 1500-8000 RPM
- Cnc Ported: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.025 Inch
- Egr Port: No
- Engine: Chevrolet Small Block Gen I
- Front Maximum Height: 9.63 Inch
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Intake Runner Length: 6.35
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Natural
- Plenum Volume: 364
- Port Size: 1.95 x 1.25
- Rear Maximum Height: 9.83 Inch
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 95mm
- Throttle Body Gasket Included: Yes
- Throttle Body Included: No
- Throttle Bore: 95 Millimeter
- Vacuum Ports: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty

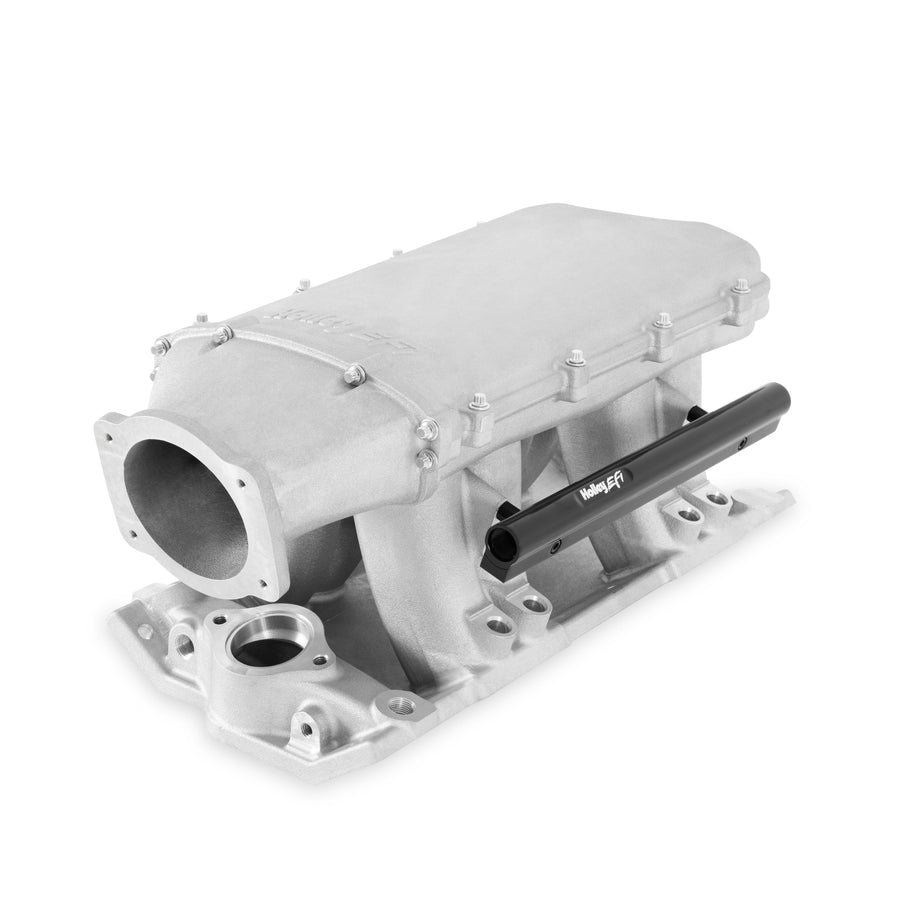

Holley Hi-Ram Front-Feed EFI Intake Manifold Kit Small Block Chevy Small Block Chevy Hi-Ram Intake Manifold, Front-Feed with 95mm LS Throttle Body Flange Holley 300-951
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| UPC | 90127857410 |
| Availability | Available |
| Universal | Yes |
