Holley Hi-Ram EFI intake manifolds are now available for 1965 & later 396-502+ Mkiv-Mkvi Big Block Chevy engines with standard intake flange rectangle-port cylinder heads. Traditional Big Block Chevy engines can now also be fitted with the Holley Brand Hi-Ram type EFI intake manifolds that have so well served Gm Ls & Lt, Gen 3 Hemi, Sbf Ford, and Ford Coyote engine platforms.
The iconic Chevy Sbc & Bbc platforms are primed for 21st century induction systems, Holley EFI engine management, and Holley fuel systems.
Features and Benefits:
- The coolant outlet is a standard Chevy thermostat housing flange
- and (2) 1/2 NPT and (1) 3/8 NPT coolant ports are provided
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish Power Band: 1500-8000 RPM Plenum Top Gasket Type - 3/32 inch Round O-ring Cord 2.40 inch tall x 1.60 inch wide port flange openings, uses Mr
- Gasket intake manifold gasket #5817 Uses drive by wire or cable actuated Gm Gen Iv Ls 4-bolt throttle bodies Black anodized EFI fuel rails are machined for -10AN O-ring fittings and come included with these EFI Hi-Ram kits
- Hi-Ram intake manifolds are a cost-effective alternative to fabricated sheet-metal or billet manifolds for high-performance applications where induction system height is not limited Throttle Cable Bracket is supplied in the kit The Big Block Chevy Hi-Ram manifold is available in either a traditional Hi-Ram 105mm plenum top or with a 2 x 4150 4-barrel throttle body plenum top options Requires the use of early type Gm or small cap Msd or Holley Distributors
- Not compatible with Hei distributors Map sensor port is for a Gm Gen Iv Ls Map sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum 300-961, 300-963, and 300-964 are designed for 1965 & later 396-502+ Mkiv-Mkvi standard 9.80 inch deck height Big Block Chevy engines with standard intake flange rectangle-port cylinder heads.
Details:
- Basic Operating RPM Range: 1500-8000 RPM
- Cnc Ported: No
- Carburetor Flange: Square/4150
- Carburetor Quantity: 2.0
- Carburetor Studs Included: No
- Color: Natural
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.8 Inch
- Egr Port: No
- Engine: Chevy Big Block V8
- Flange Style: 4150 Square Bore
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Natural
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 3.6
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Throttle Bore: Square/4150
- Vacuum Ports: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty

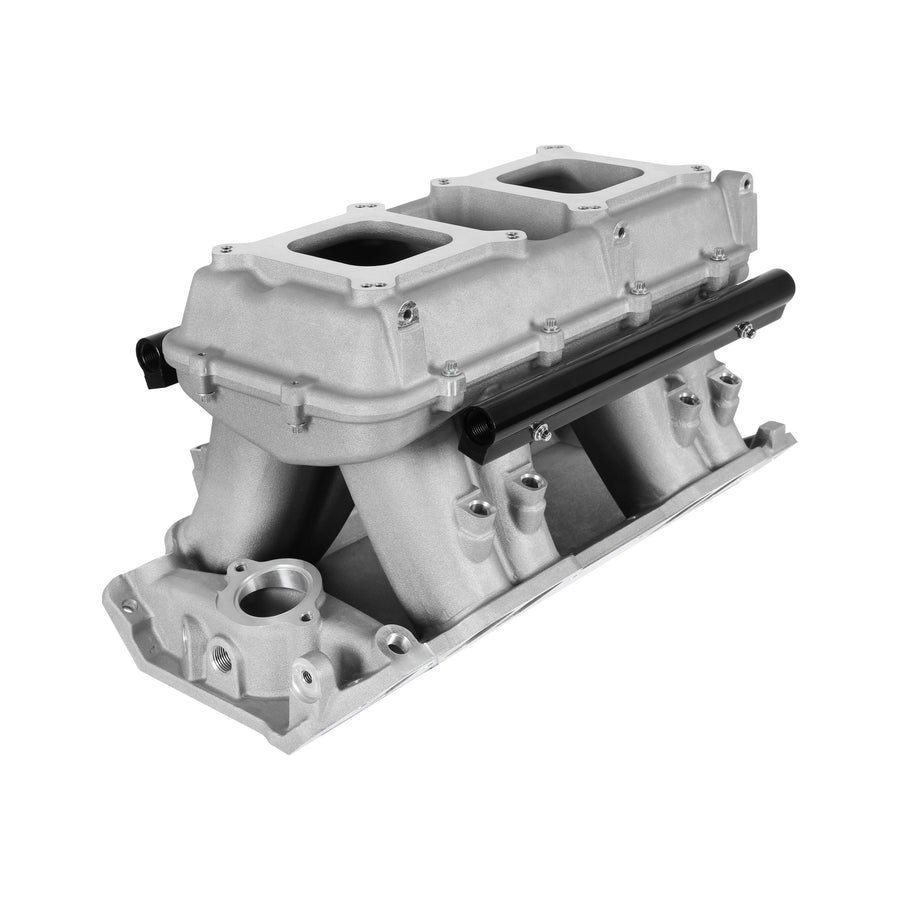

Holley Hi-Ram EFI Intake Manifold Kit Big Block Chevy Hi-Ram Intake Manifold with 2x4 4150 Plenum Top a -10AN Fuel Rail Kit Is Included Holley 300-964
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| UPC | 90127963500 |
| Availability | Available |
| Universal | Yes |
