Its dual plane design makes it perfect for low end torque, yet it still pulls all the way to 6,500 RPM! Our O-ring cylinder head mounting flange gaskets provide an OEM style seal and make installation a snap.
Bolt one on today! Got an Ls engine to get running?
Nothing is easier than bolting on a carburetor. Holley's dual plane carbureted intake for Gm's Ls engines will help you get on the streets quick!
Features and Benefits:
- Includes Viton O-rings - Viton is a registered trademark of DuPont Performance Elastomers Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 1500-6500 RPM Great for carbureted or throttle body EFI street applications Mounting flange gasket type - O-ring Port size - 2.72 inch height x 1 inch wide Minimum carb flange height means it fits in vehicles with minimal or no hood modifications Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality Height (rear) - 6.14 inch from rear lifter valley cover to carb mounting flange Weighs 15.14 lbs
- 4150 Square bore flange 1500-6500 RPM power band Height (front) - 5.07 inch from front lifter valley cover to carb mounting flange
Associated Comments:
- All Gm Ls Gen Iii or Iv engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads. Includes mounting bolts & washers.
- Note: These Dual-Plane Intake Manifolds are Not legal for sale or use on engines with pollution controlled equipment.
Details:
- Basic Operating RPM Range: 1500-6500 RPM
- Cnc Ported: No
- Carburetor Flange: Square/4150
- Carburetor Quantity: 1.0
- Carburetor Studs Included: No
- Color: Black
- Construction: Cast
- Cylinder Head Port Shape: Cathedral
- Deck Height: 9.24 Inch
- Egr Port: No
- Engine: Gm LS1/LS2/LS6
- Flange Style: 4150 Square Bore

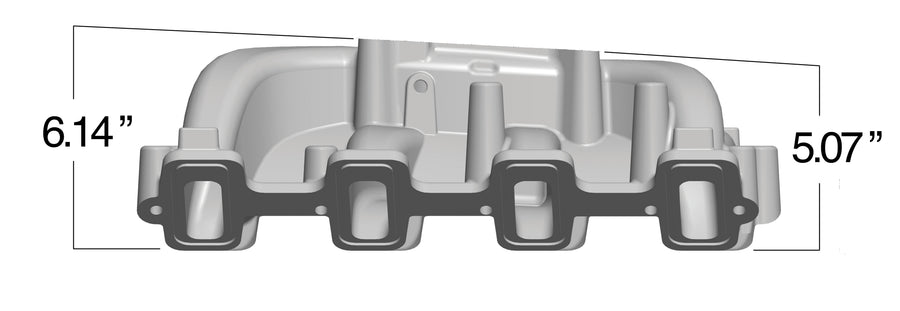

- Front Maximum Height: 5.07 Inch
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Dual Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Black
- Rear Maximum Height: 6.14 Inch
- Removable Runners: No
- Removable Top/Lid: No
- Single Or Dual Plane Type: Single Plane
- Throttle Body Bore Diameter: 3.6
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty
Holley Dual Plane Intake GM LS1/LS2/LS6 Black All GM LS Gen III or IV Engines Equipped with LS1/LS2/LS6 Style Cathedral Port Cylinder Heads W/Black Ceramic Coating Holley 300-130BK
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 90127715895 |
| Availability | Available |
| Universal | No |
