Manifold width is 11.32 inch. Cast aluminum construction.
Manifold is designed for a 9.5 inch deck height. For carbureted applications you can use Msd Pn 85787 Ford 351W Distributor with Steel Gear Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations The Hi-Ram manifold line has a new addition for the 351W Ford application.
The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing.
Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Features and Benefits:
- Black finish Plenum Top Gasket Type - 3/32 inch Round O-ring Cord For carbureted applications use Msd Pn 85787 Ford 351W Distributor with Steel Gear Manifold is designed for a 9.5 inch deck height
- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Associated Comments:
- For carbureted applications you can use Msd Pn 85787 Ford 351W Distributor with Steel Gear The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
- Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor.
- Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Details:
- Basic Operating RPM Range: 1500-7000 RPM
- Cnc Ported: No
- Carburetor Studs Included: No
- Color: Black
- Construction: Cast
- Cylinder Head Port Shape: Rectangle
- Deck Height: 9.5 Inch
- Egr Port: No
- Engine: Ford 351W
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: Carb
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Black
- Port Size: 2.00 Inch x 1.190 Inch
- Removable Runners: No
- Removable Top/Lid: Yes
- Single Or Dual Plane Type: Single Plane
- Throttle Body Gasket Included: No
- Throttle Body Included: No
- Vacuum Ports: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty

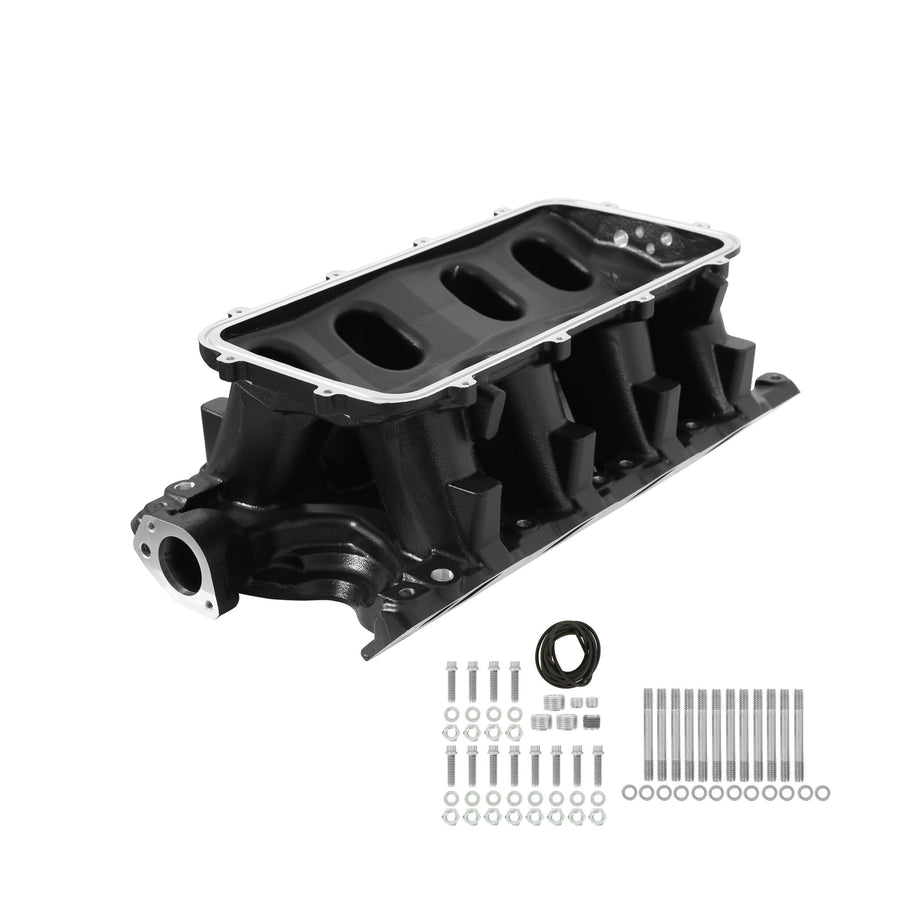

Holley Black 351W Ford Hi-Ram Carbureted Manifold Base Black Ford 351W (9.5 Deck) Ford Hi-Ram Intake Manifold Base Holley 300-243BK
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 90127044162 |
| Availability | Available |
| Universal | Yes |
