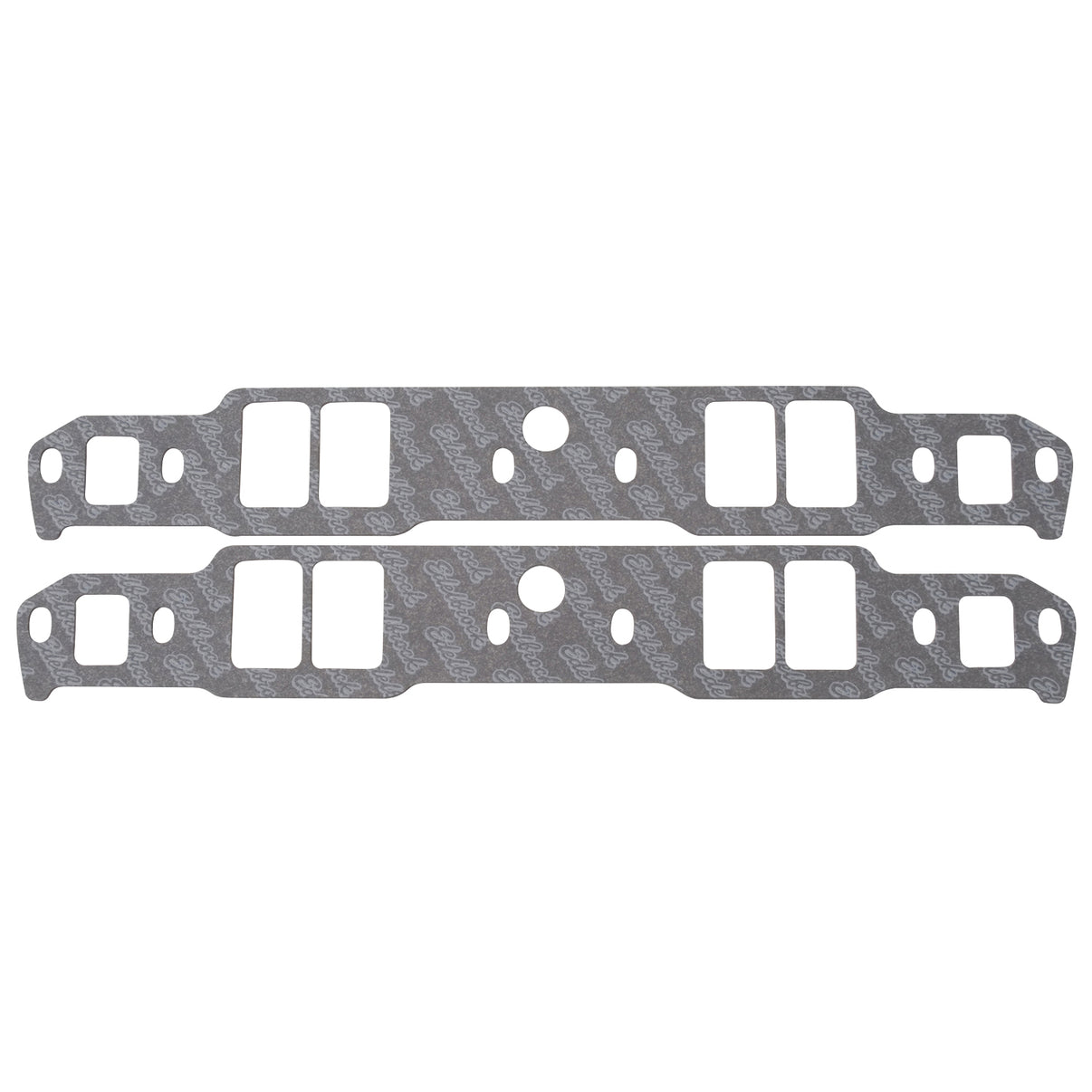

Edelbrock Engine Intake Manifold Gasket Set 7217
Specifications:
| Material | Synthetic Fiber composite |
| Configuration | Two Piece |
| Finish | Grey |
| Manifold Gasket Bolt Hole Quantity | 6 |
| Valley Pan Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | INT MAN GASK |
| Description_INV | Edelbrock Intake Manifold Gasket |
| Description_LAB | Intake Manifold Gasket for 18 Deg S/B Chevy High-Port Intakes |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Intake Manifold Gasket for 18 degree S/B Chevy Edelbrock High-Port Intakes. Top quality Edelbrock gaskets ensure a perfect seal every time. |
| Description_MKT | Edelbrock part #7217 Intake Gaskets for Edelbrock 18 degree Small-Block Chevy Victor Jr. and Victor High-Port Intakes allow for optimum flow and performance. Any gasket can create a seal, but a good gasket can do it with less clamping force, and for a longer period of time. The new MP-2N Micropore technology does not use solvents making our gaskets environmentally friendly. Impervious to most chemicals, this synthetic fiber composite provides a high recovery under load. This means that when compressed, the gasket will conform to any imperfections on the sealing surface even using lower flange pressures. A nitrile bead around each port opening makes the seal even better. |
| Description_TRA | Port Size: 1.31" x 2.02" |
| Description_TRA | Thickness: .60" |
| Description_TRA | Graphite Style |
| Description_TRA | We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. |
| Description_TRA | Silicon beads facing up towards intake manifold |
| Description_DEF | Engine Intake Manifold Gasket Set |
