Edelbrock Engine Intake Manifold 70855
Specifications:
| Series | Victor |
| Vehicle Model | Chevrolet |
| Rear Maximum Height | 10.750 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Material | Aluminum |
| Color | Satin |
| Basic Operating RPM Range | 4500-8500 |
| CNC Ported | No |
| Grade Type | Performance |
| Single Or Dual Plane Type | Dual |
| Center Maximum Height | 10.750 |
| Front Maximum Height | 10.750 |
| Gasket Or Seal Included | No |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Victor Tunnel Ram Base Only Intake |
| Description_LAB | Victor Tunnel Ram 2-R EFI Big Block Chevy Intake Manifold Base Only |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_EXT | Edelbrock Victor Ram 2-R Intake Manifold Base for EFI Applications 468-582 Big-Block Chevy |

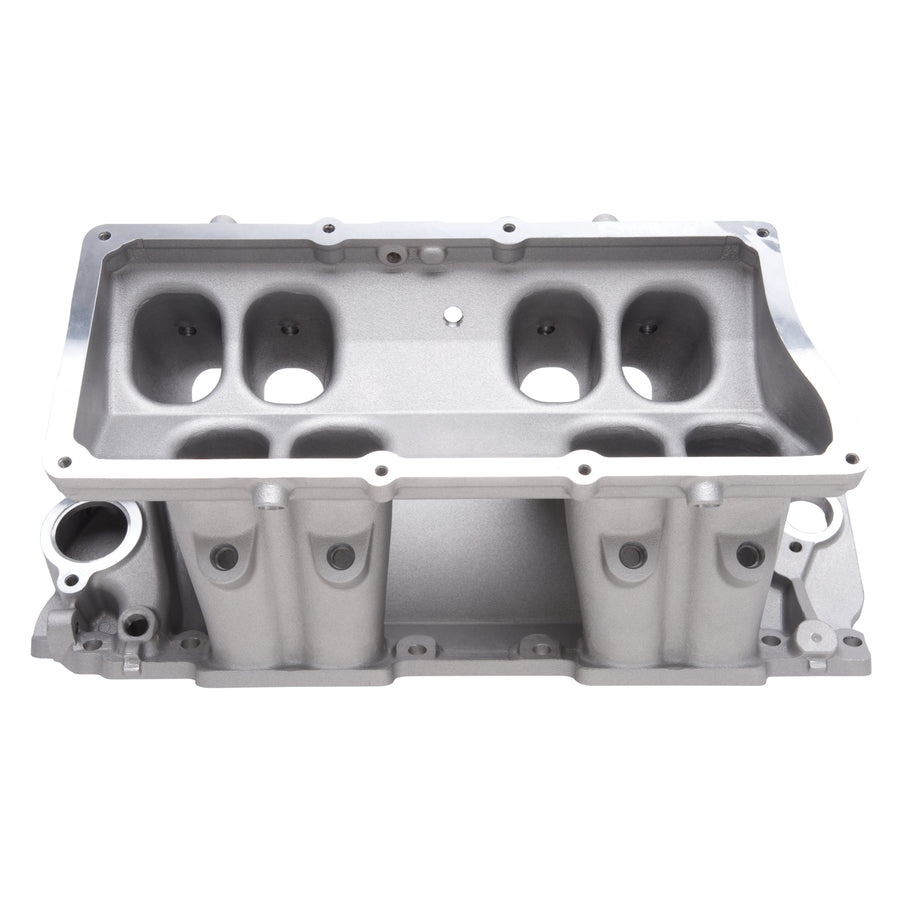

| Description_MKT | Edelbrock part #70855 Victor EFI Tunnel Ram base is a modern updated design to our very successful Victor Ram 2-R Tunnel Ram, which was first released over 35 years ago. It's designed for use with 468-582 c.i.d. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7" long runners with close to 5.5 square-inches at the plenum, making it 25% larger than our current Victor Ram 2-R Tunnel Ram base! This is the ideal intake manifold for any modern high horsepower demanding application. Will fit Edelbrock Victor series race cylinder heads #77409, #77459 and #77609. |
| Description_TRA | Recommended intake gasket: Edelbrock #7208 or Fel-Pro #1275 |
| Description_TRA | Distance from carb center to carb center: 9.40" |
| Description_TRA | Manifold height: 10.75" |
| Description_TRA | Base Only. |
| Description_TRA | Port exit dimensions: 1.78" x 2.50" |
| Description_TRA | Generously sized port exits |
| Description_TRA | R=1.44" |
| Description_TRA | F=1.06" |
| Description_TRA | W=1.78" |
| Description_TRA | H=2.50" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
