Edelbrock Engine Intake Manifold 2900
Regular Price
$516.56
Press & drag to view

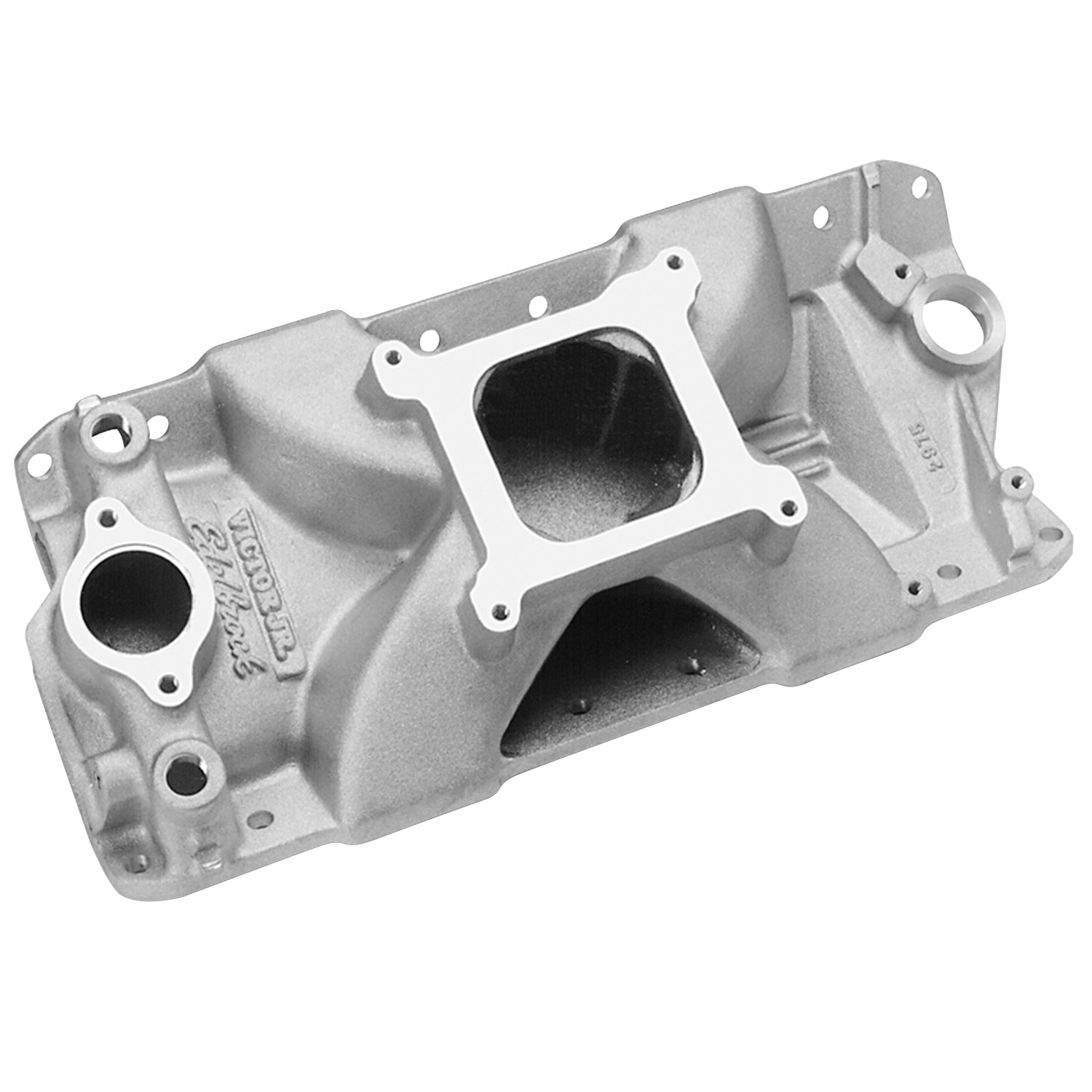

Edelbrock part #2900 Victor Jr. Port Matched intake manifold is excellent for many applications from drag to circle track racing. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. The low-profile of the #2900 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. This intake manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Edelbrock Engine Intake Manifold 2900
Specifications:
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height | 0.010 |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-8000 |
| Center Maximum Height | 4.580 |
| Flange Type | 4150 |
| CNC Ported | Yes |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Finish | Satin |
| Rear Maximum Height | 0.010 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_DEF | Engine Intake Manifold |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor Jr Port Matched Intake Manifold |
| Description_LAB | Victor Jr. 23 Degree Port Matched Intake Manifold Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Victor Jr. 23 Degree Port Matched Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_MKT | Edelbrock part #2900 Victor Jr. Port Matched intake manifold is excellent for many applications from drag to circle track racing. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. The low-profile of the #2900 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. This intake manifold is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
