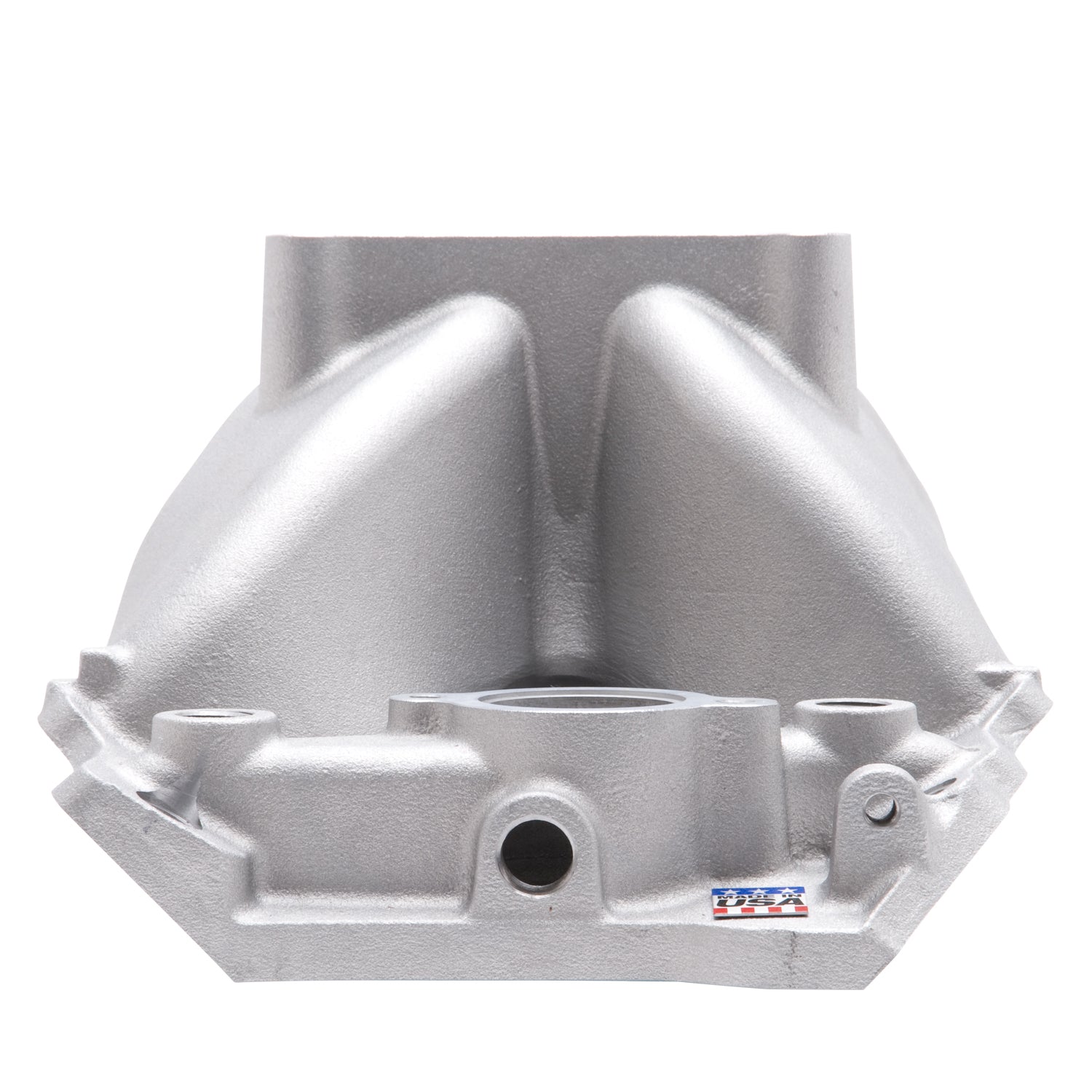

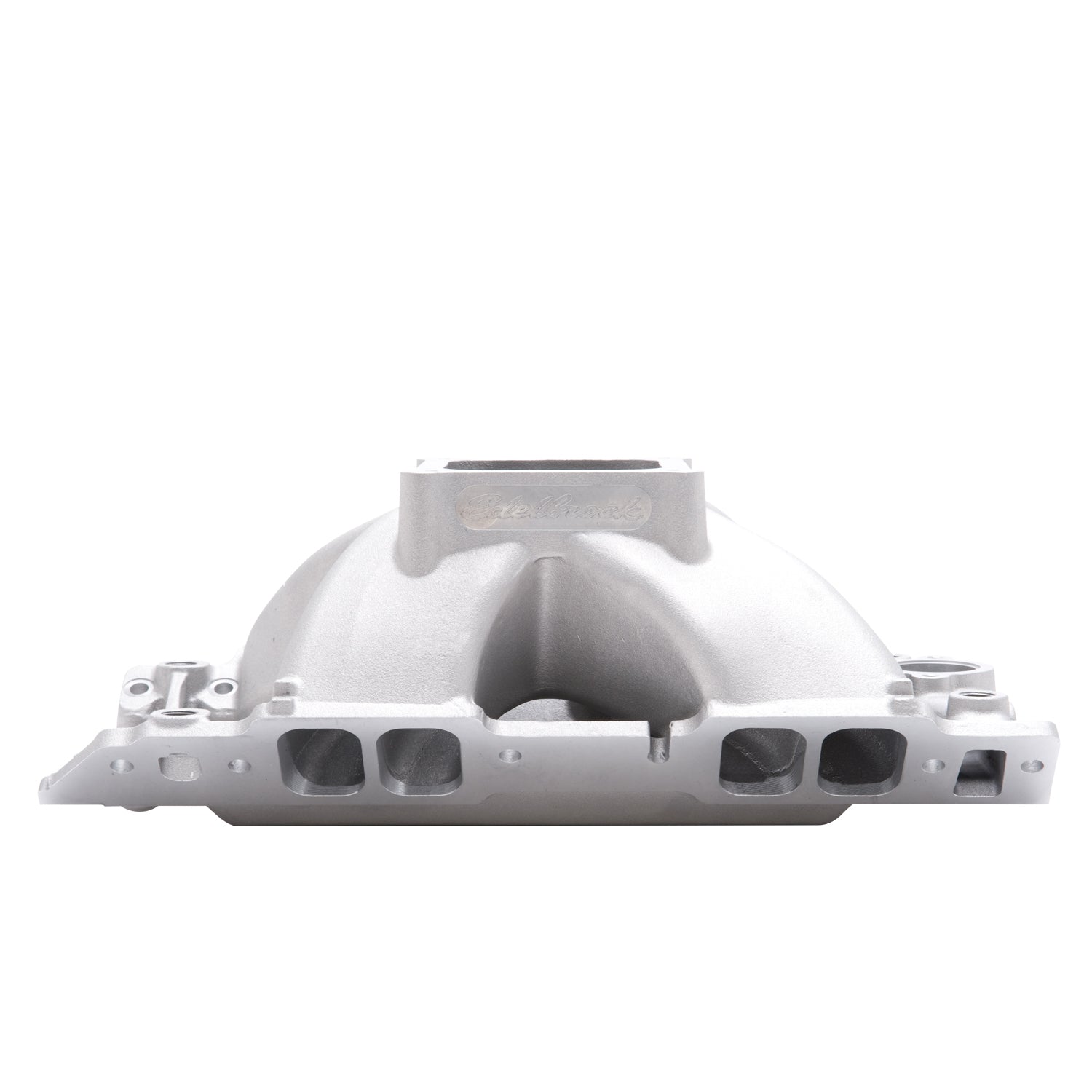

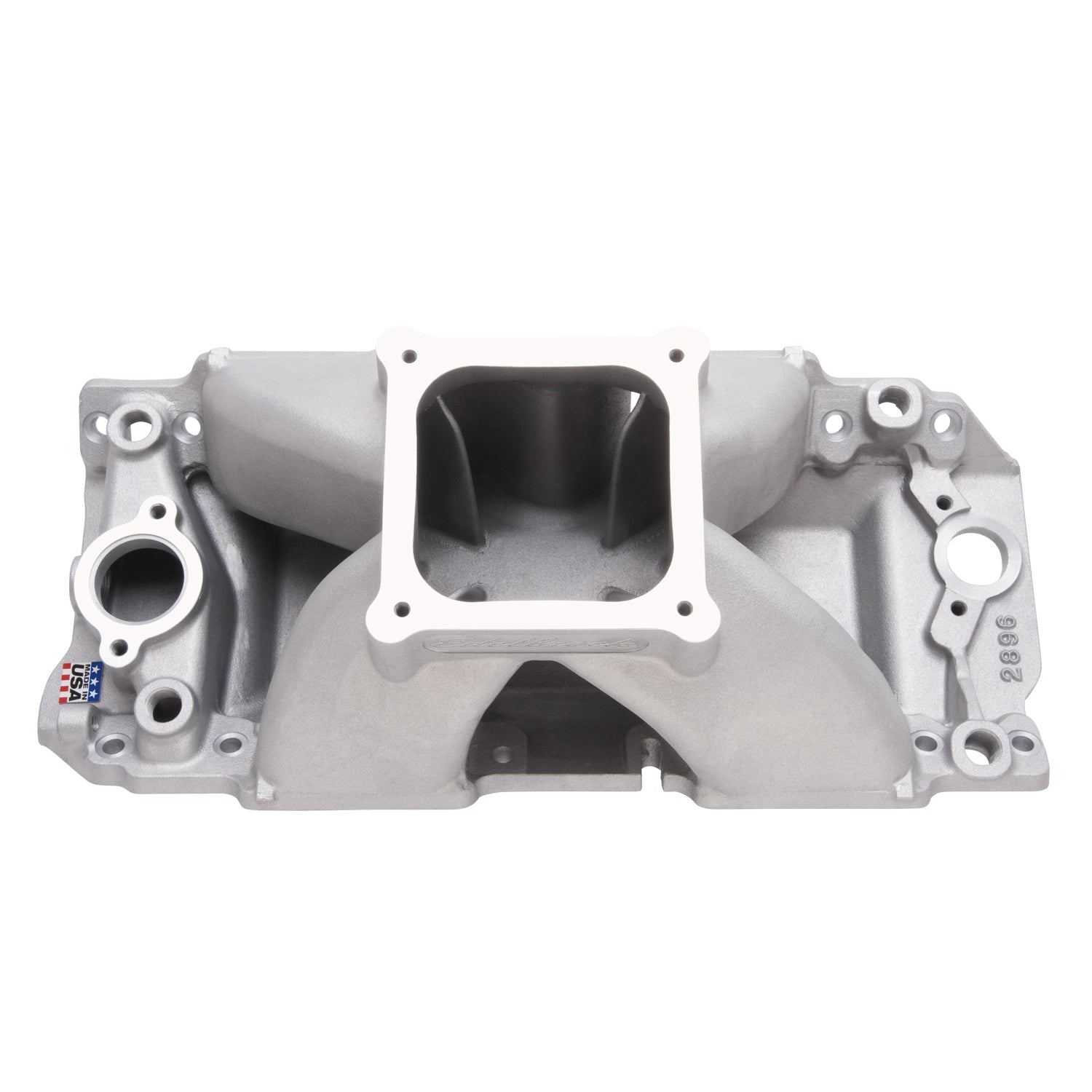

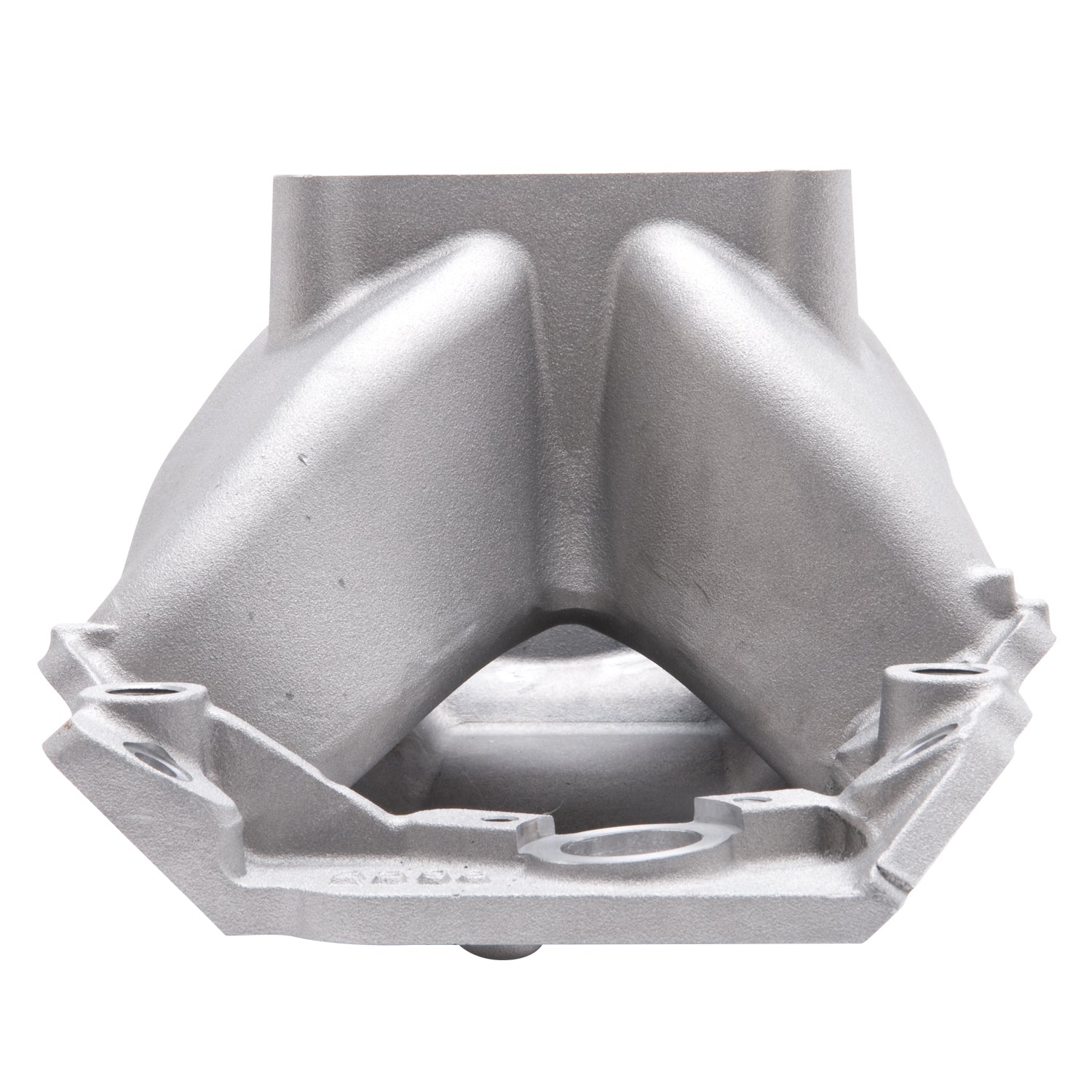

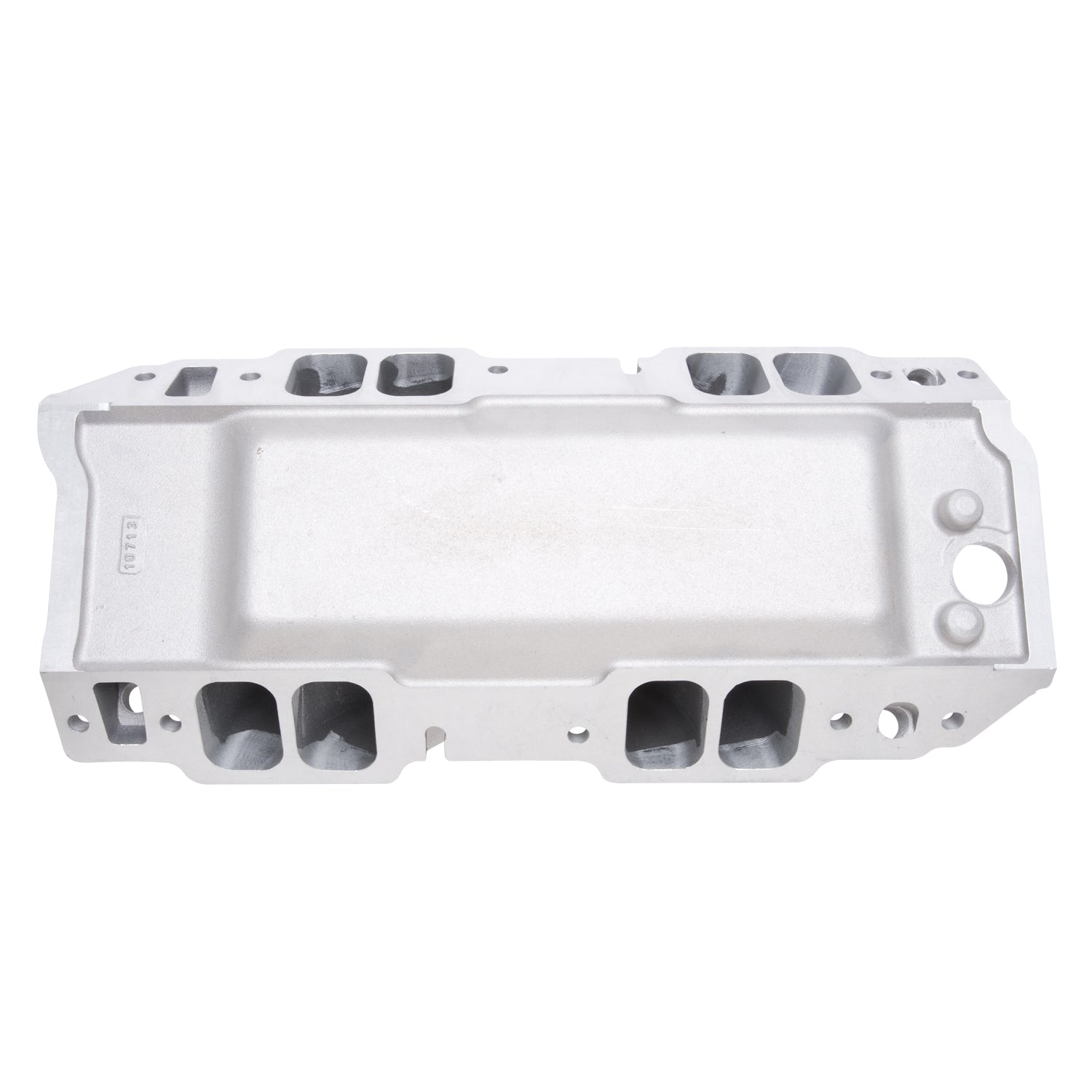

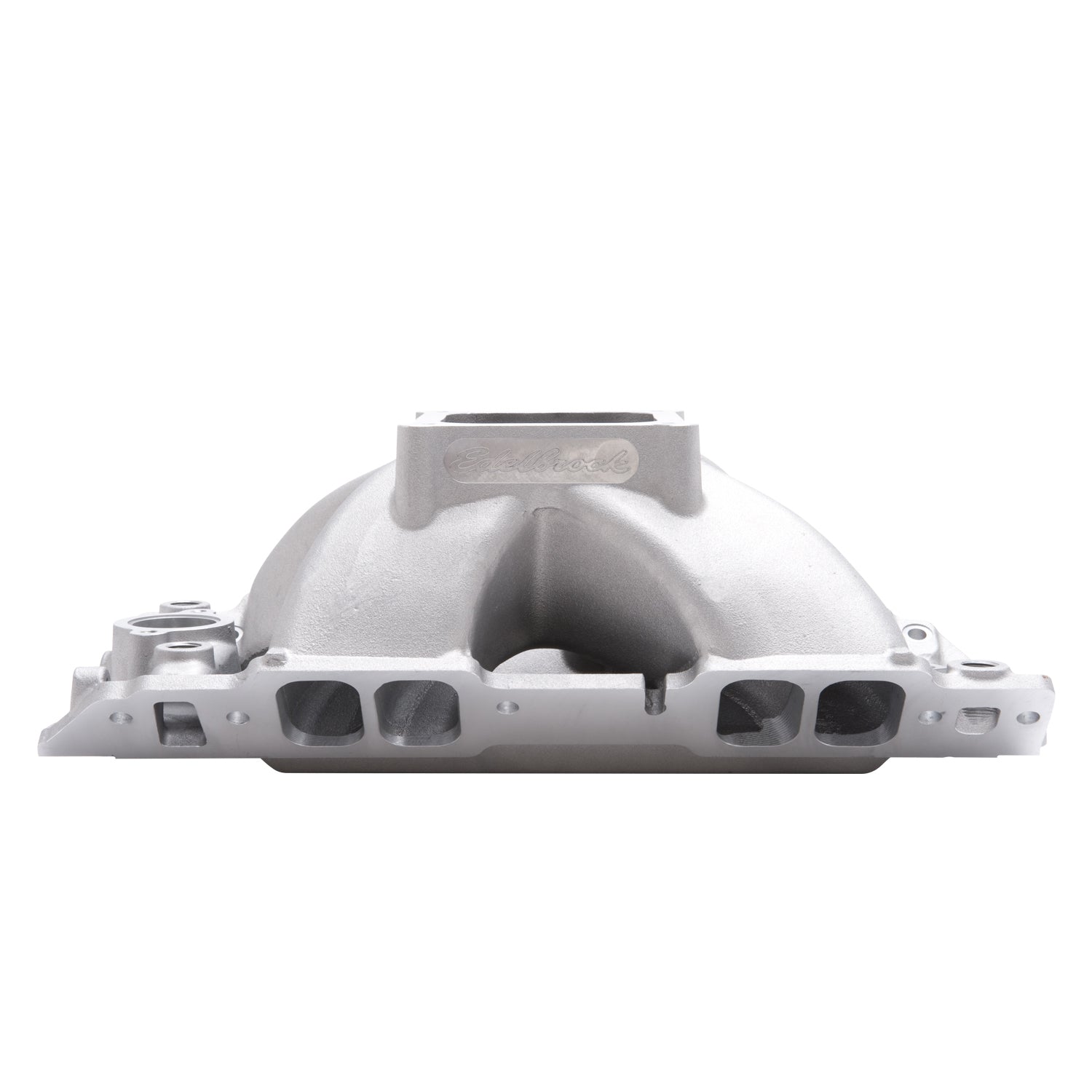

Edelbrock Engine Intake Manifold 28962
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included | No |
| Rear Maximum Height | 7.560 |
| Finish | Satin |
| Front Maximum Height | 7.560 |
| EGR Port | No |
| Series | Victor |
| Vehicle Model | Chevrolet |
| Material | Aluminum |
| Basic Operating RPM Range | 3500-8500 |
| Single Or Dual Plane Type | Single |
| Flange Type | 4500 |
| CNC Ported | Yes |
| Grade Type | Performance |
| Center Maximum Height | 7.560 |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor 2 BBC 9.8 Deck STD Deck CNC |
| Description_LAB | Super Victor II Intake Manifold for BBC 9.8" Deck CNC Port Matched |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_EXT | Edelbrock Super Victor II CNC Intake Manifold for Standard Deck Chevrolet Big-Block V8 |
| Description_MKT | Edelbrock part #28962 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifolds is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is CNC port matched for Edelbrock/Musi Victor 24 degree CNC 377cc cylinder heads #61409. Accepts standard height distributors. The manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops. |
| Description_TRA | Recommended intake gasket: Fel-Pro 1275 |
| Description_TRA | Designed for short deck block |
| Description_TRA | Bolt centerline to floor: 1.15" |
| Description_TRA | Bolt centerline to roof: 1.40" |
| Description_TRA | Port matched for #60409 Edelbrock heads |
| Description_DEF | Engine Intake Manifold |
