Edelbrock Engine Intake Manifold 2604
Regular Price
$465.95
Press & drag to view

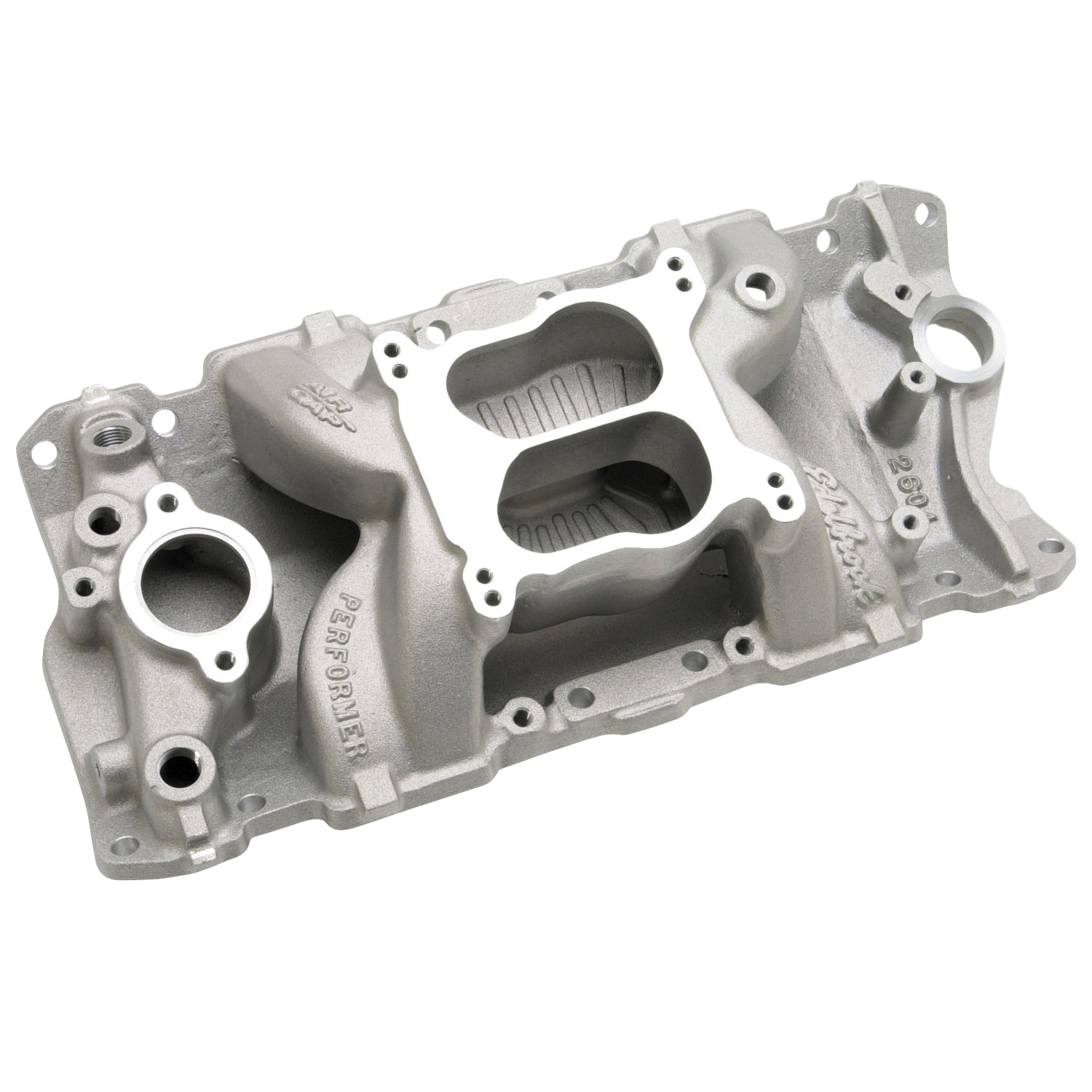

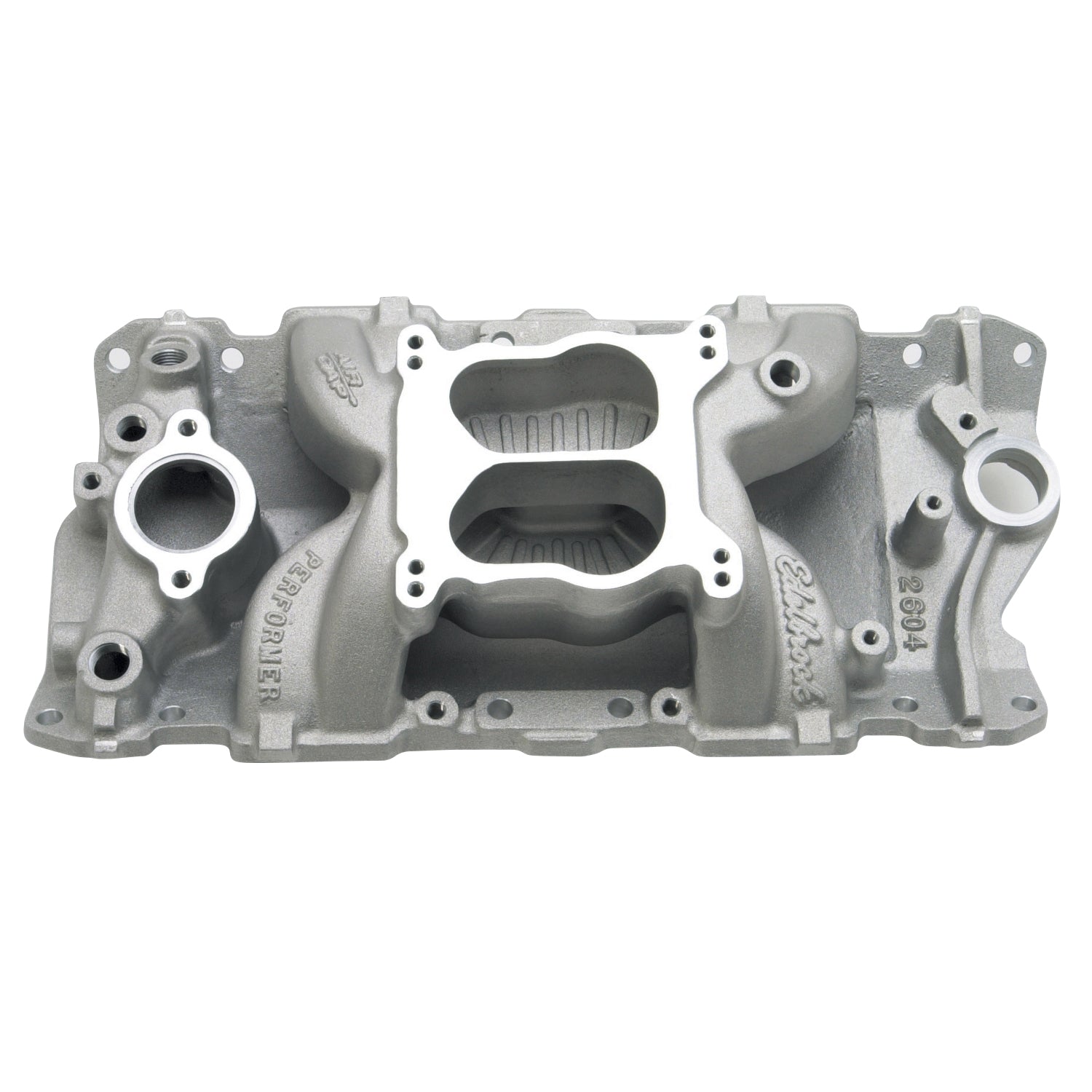

Edelbrock part #2604 Performer Air-Gap intake manifold is designed for 1987-95 cast iron heads with canted center bolt holes small-block Chevys. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood.
Edelbrock Engine Intake Manifold 2604
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type | Performance |
| Rear Maximum Height | 4.920 |
| Finish | Satin |
| Center Maximum Height | 4.320 |
| Gasket Or Seal Included | No |
| Vehicle Model | Chevrolet |
| EGR Port | No |
| Series | Performer Air-Gap |
| Material | Aluminum |
| Single Or Dual Plane Type | Dual |
| Flange Type | 4150 |
| CNC Ported | No |
| Basic Operating RPM Range | Idle-5500 |
| Front Maximum Height | 3.720 |
| Description_ABR | Intake Mnfld |
| Description_INV | Performer Air-Gap SBC 1987-95 Intake Man |
| Description_LAB | Performer Air-Gap Intake Manifold for 1987-95 Small-Block Chevy |
| Description_ASM | Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_EXT | Edelbrock Performer Air-Gap Intake Manifold for 1987-95 262-400 Small-Block Chevrolet V8's with OEM Cylinder Heads. Work with either a Q-Jet or a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_MKT | Edelbrock part #2604 Performer Air-Gap intake manifold is designed for 1987-95 cast iron heads with canted center bolt holes small-block Chevys. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood. |
| Description_TRA | Manifold ht: A-3.72", B-4.92" (.27" taller than #2101) |
| Description_TRA | Carb pad height: 4.32" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm. Use Bracket #8031 or #8036 for 1972-78. |
| Description_TRA | Port exit dimensions: 1.14" x 1.88" |
| Description_TRA | Recommended intake gasket: GM #10163409 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Will not fir under stock Corvette hood |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_DEF | Engine Intake Manifold |
