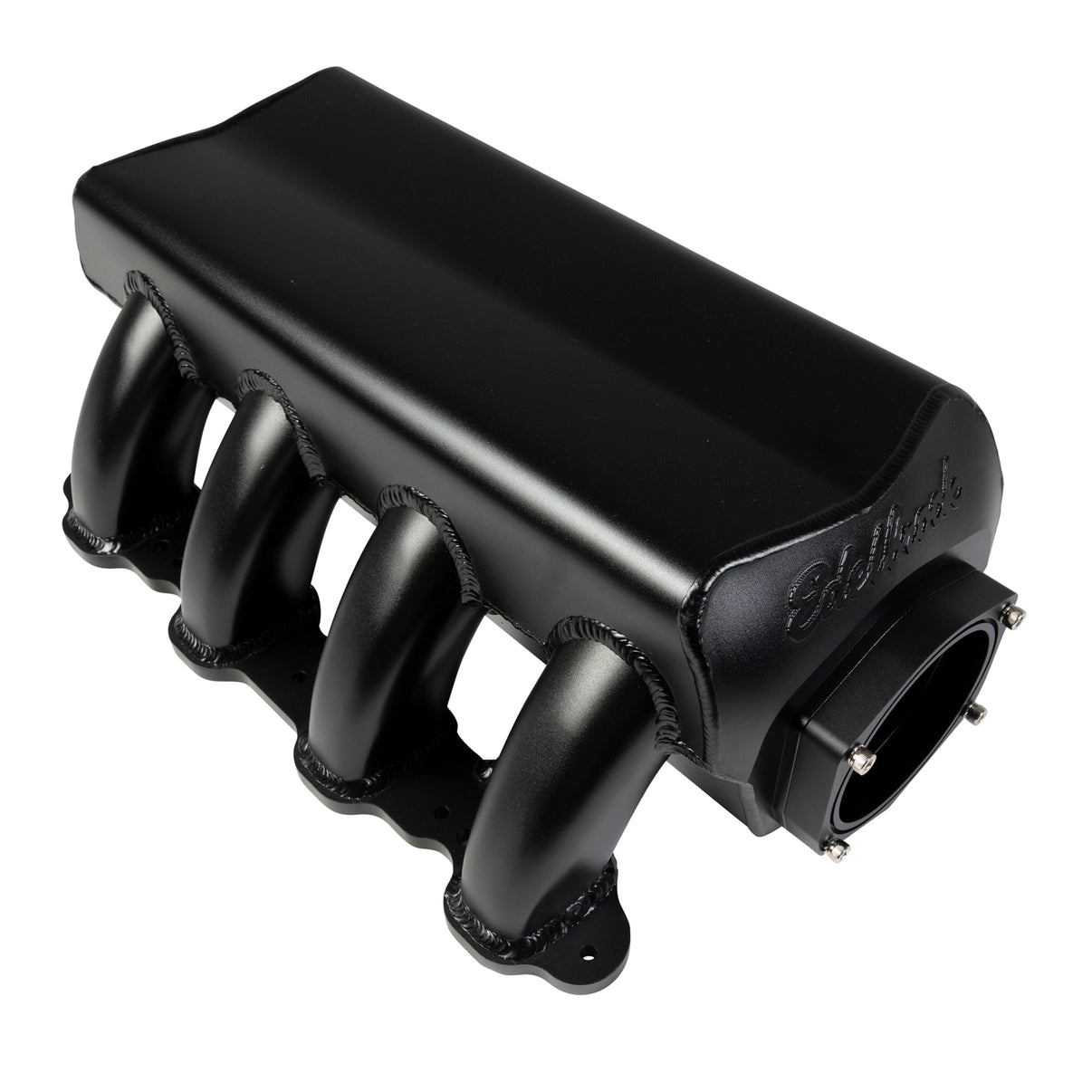

Edelbrock Edelbrock XTS Intake Manifold for Ford Godzilla 7.3L Engines 7483
Specifications:
| Cylinder Head Configuration | Stock |
| Basic Operating RPM Range | 2500-7000 |
| Injection Style | Direct |
| Injectors Included | No |
| Aftermarket Fuel Rail Required | No |
| Fuel Rail Included | No |
| Runners Removable | No |
| 10 | Aluminum |
| 17 | Black |
| Supplemental Boss Quantity | None |
| Supplemental Bosses Cast-In | No |
| Throttle Body Included | No |
| Throttle Body Bore Size | 102 |
| Vehicle Model | Ford |
| Description_ABR | Intk Mnfld |
| Description_SHO | Intake Manifold |
| Description_INV | Godzilla Intake Manifold |
| Description_LAB | Edelbrock XTS Intake Manifold for Ford Godzilla 7.3L Engines |
| Description_DES | Edelbrock XTS Intake Manifold for Ford Godzilla 7.3L Engines |
| Description_SHP | none |
| Description_ASM | Ford 7.3L pushrod V8 for engine swap and crate engine applications |
| Description_EXT | The XTS Manifold for Ford 7.3L Godzilla V8 is designed with shorter-than-stock tapered runners tuned for high-RPM gains in engine swap applications. Made of lightweight, durable, black powder-coated sheet metal. |
| Description_MKT | Edelbrock introduces the all-new XTS(TM) Manifold for the Ford 7.3-liter Godzilla Engine. This manifold features shorter-than-stock tapered runners tuned for high-RPM gains in engine swap applications. Finished in a highly attractive black powder-coat finish, the XTS is designed of lightweight, durable sheet metal. The flanges are of a billet construction for strength and consistent sealing with the heads. A horizontal throttle-body mount solves one of the most common swap fitment issues of intake air routing. All standard vacuum take-off ports are found on the rear of the manifold, and it comes complete with the mounting and vacuum take-off hardware. Team up the XTS manifold (P/N 7483) with a FAST 102mm throttle body (P/N 54106) and COMP Stage 3 camshaft (P/N 405-20-17) to create a 637 HP beast ready to swap into your favorite ride. |
| Description_FAB | Horizontal throttle body positioning makes inlet plumbing engine swap vehicles very easy. |
| Description_FAB | Short tapered runners provide significant high rpm gains, especially when matched with our Comp Cams Stage 3 Godzilla camshaft. |
| Description_FAB | Two 1/8 and two 1/4 NPT bosses for extra vacuum take-off points. |
| Description_DEF | Engine Intake Manifold |
