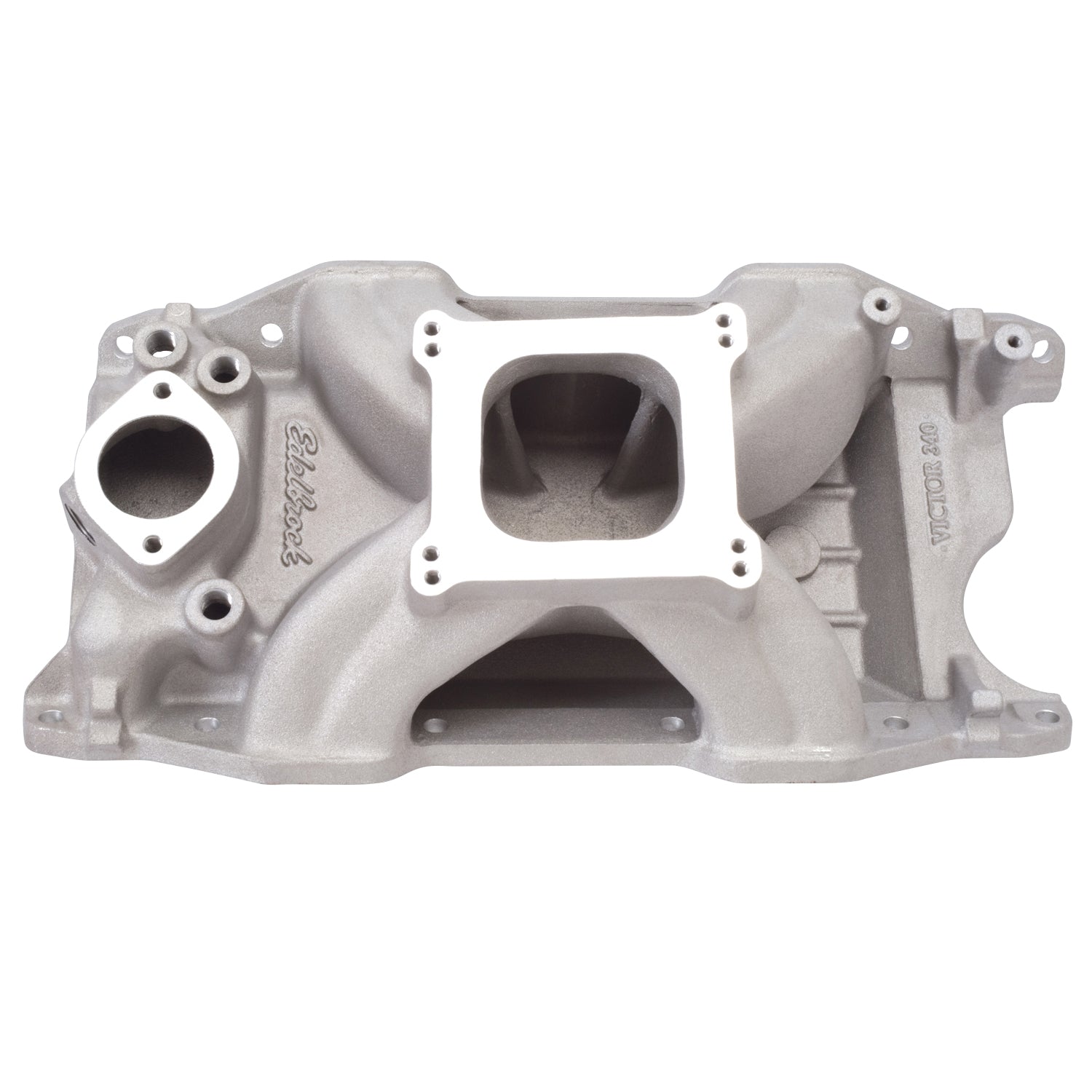

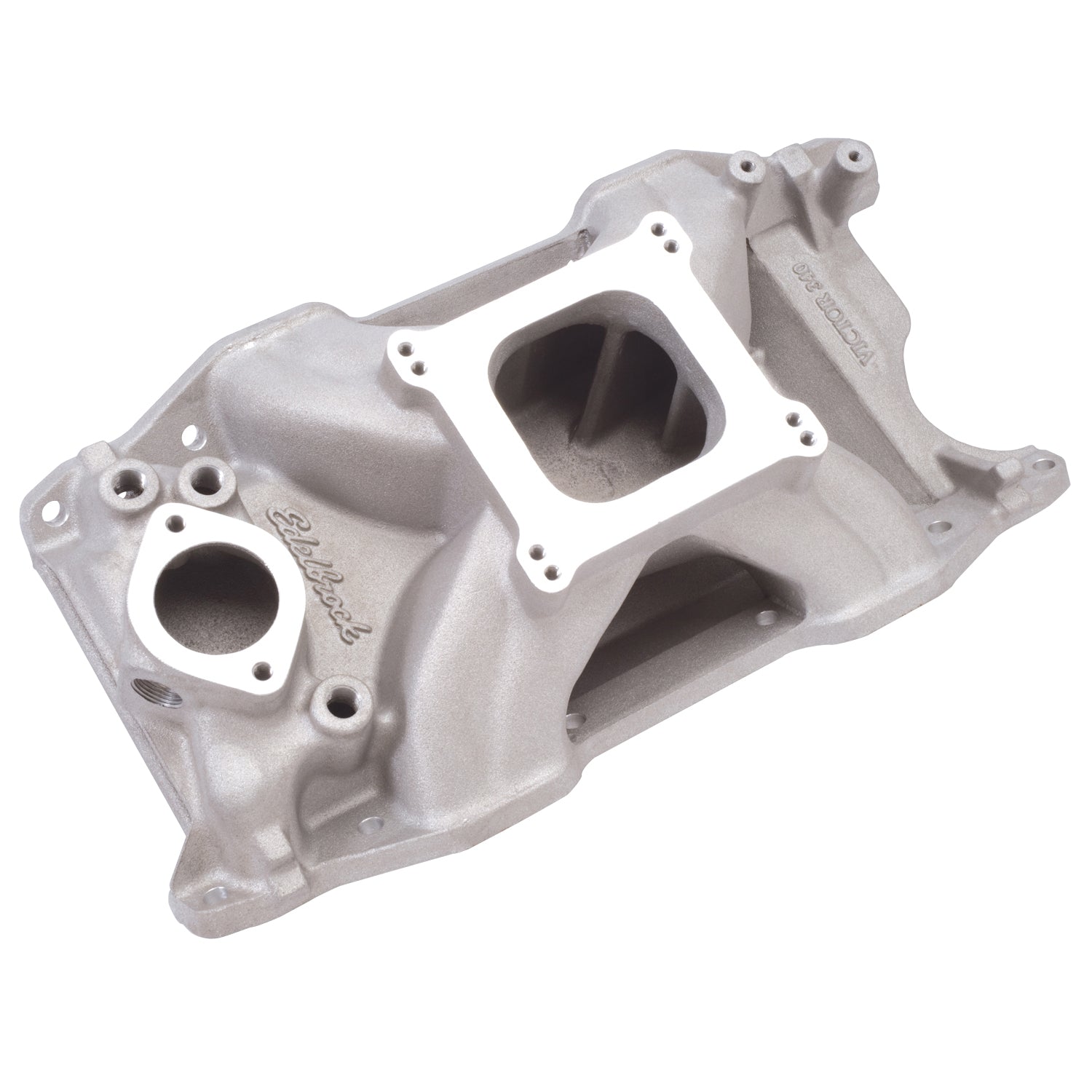

Edelbrock Edelbrock Victor Intake Manifold for 318-360 Chrysler Small Block LA engines 2915
Specifications:
| Rear Maximum Height | 4.920 |
| Gasket Or Seal Included | No |
| CNC Ported | No |
| Vehicle Model | Chrysler |
| Center Maximum Height | 4.920 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Front Maximum Height | 4.920 |
| EGR Port | No |
| Finish | Satin |
| Basic Operating RPM Range | 3500-8000 |
| Flange Type | 4150 |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Description_ABR | Intake Mnfld |
| Description_INV | Victor 340/360 Intake Manifold |
| Description_LAB | Victor Intake Manifold Small-Block Chrysler |
| Description_ASM | Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_EXT | Edelbrock Victor Intake Manifold for 318-360 Chrysler Small Block LA engines |
| Description_MKT | Edelbrock part #2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only. |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213 |
| Description_TRA | Manifold height.: A-4.15", B-5.70" |
| Description_TRA | Carb recommendations: Use appropriate racing carburetor |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
