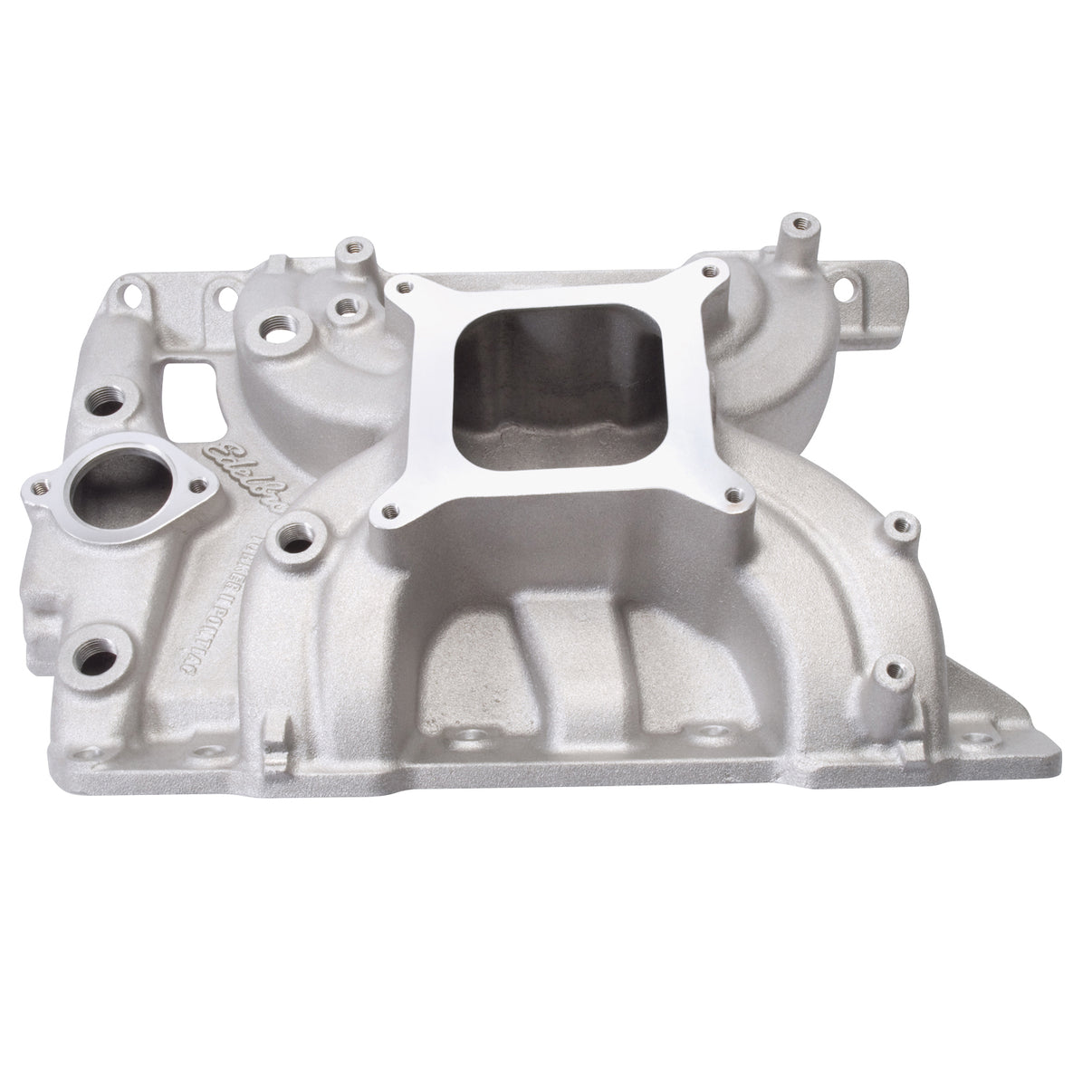

Edelbrock Edelbrock Torker II Pontiac Intake Manifold for Pontiac 326-455 V8 5056
Specifications:
| CNC Ported | No |
| Rear Maximum Height | 7.150 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model | Pontiac |
| Color | Satin |
| Front Maximum Height | 6.030 |
| Center Maximum Height | 6.590 |
| EGR Port | No |
| Gasket Or Seal Included | No |
| Series | Torker/Torker II |
| Grade Type | Performance |
| Material | Aluminum |
| Basic Operating RPM Range | 2500-6500 |
| Single Or Dual Plane Type | Single |
| Flange Type | 4150 |
| Description_ABR | Intake Mnfld |
| Description_INV | Torker 2 Pontiac Intake Manifold |
| Description_LAB | Torker II Pontiac 326-455 Intake Manifold |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_EXT | Edelbrock Torker II Pontiac Intake Manifold for Pontiac 326-455 V8 |
| Description_MKT | Edelbrock part #5056 Torker II Pontiac intake manifold is designed for 1965-79 street 389-455 c.i.d. Pontiac V8's. Can be used with Ram Air IV heads. Will not fit Ram Air V and 265/301 V8's or under Trans Am Shaker hood. |
| Description_TRA | Recommended intake gasket: Edelbrock #7280 |
| Description_TRA | No provisions for OEM choke |
| Description_TRA | OEM carb requires conversion to electric/manual choke |
| Description_TRA | For 1968-71 use Edelbrock #8015 throttle bracket |
| Description_TRA | Manifold height: .400" taller than stock, A-6.03", B-7.15 measured to engine block |
| Description_TRA | Carb pad height: 6.59" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm. |
| Description_TRA | Port exit dimensions: 1.10" x 2.06" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
