Edelbrock Edelbrock Torker II Intake Manifold for 318-360 Chrysler Small Block LA engines 5076
Specifications:
| Basic Operating RPM Range | 2500-6500 |
| Flange Type | 4150 |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Torker/Torker II |
| Vehicle Model | Chrysler |
| Gasket Or Seal Included | No |
| Rear Maximum Height | 5.720 |
| Front Maximum Height | 5.250 |
| EGR Port | No |
| Color | Satin |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Center Maximum Height | 5.720 |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_ABR | Intake Mnfld |
| Description_INV | Torker 2 Chrysler 360 Intake Manifold |
| Description_LAB | Torker II 340/360 Small Block Chrysler Intake Manifold |
| Description_ASM | Chrysler:Small-Block:318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_EXT | Edelbrock Torker II Intake Manifold for 318-360 Chrysler Small Block LA engines |

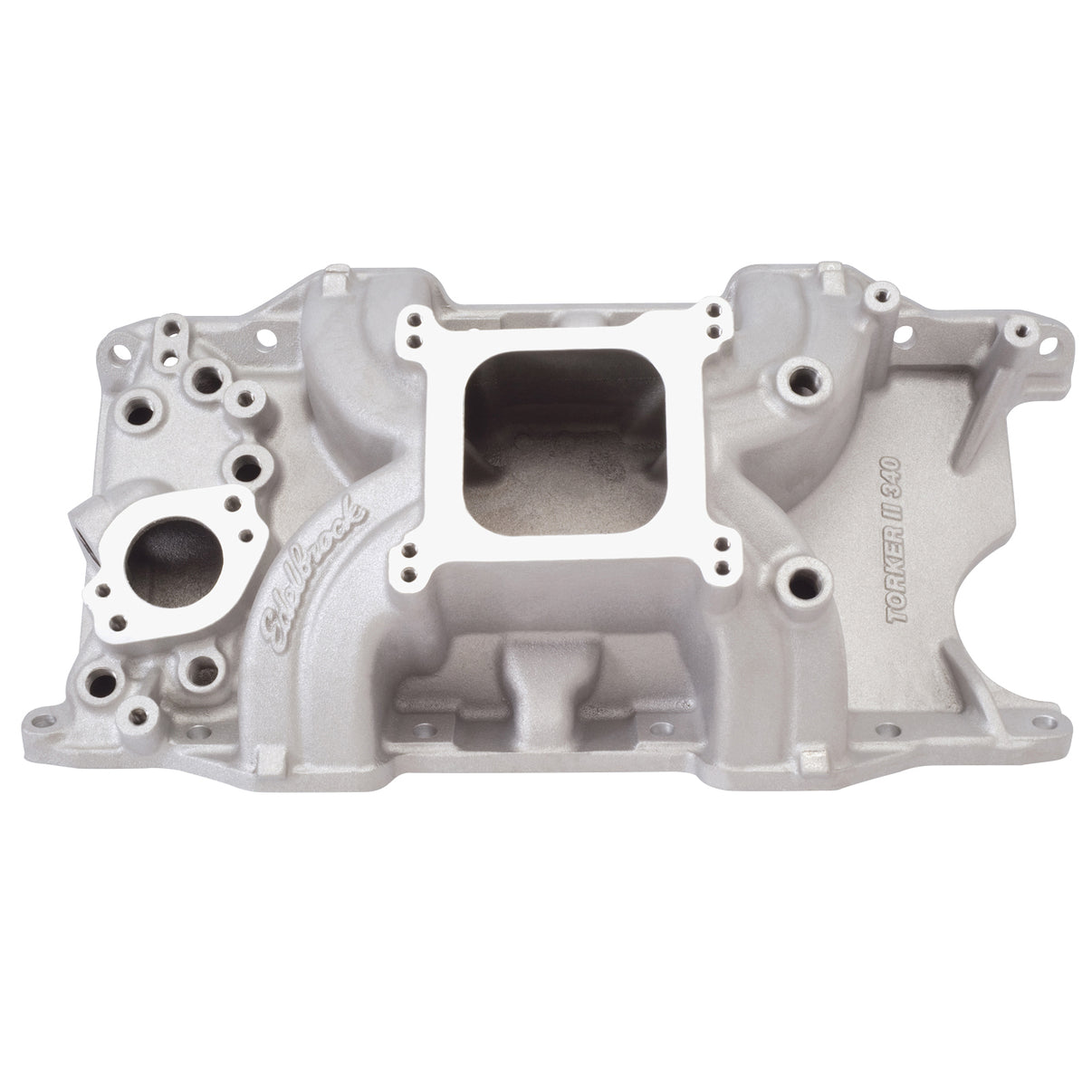

| Description_MKT | Edelbrock part #5076 Torker II intake manifold is designed for high Performance's street 340-360 c.i.d. Chrysler V8's. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.) |
| Description_MKT | use Performer #2176 intake manifold. |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) |
| Description_TRA | Manifold height: A-5.25", B-6.19" |
| Description_TRA | Carb pad height: 5.72" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Port exit dimensions: 1.00" x 2.17" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_DEF | Engine Intake Manifold |
