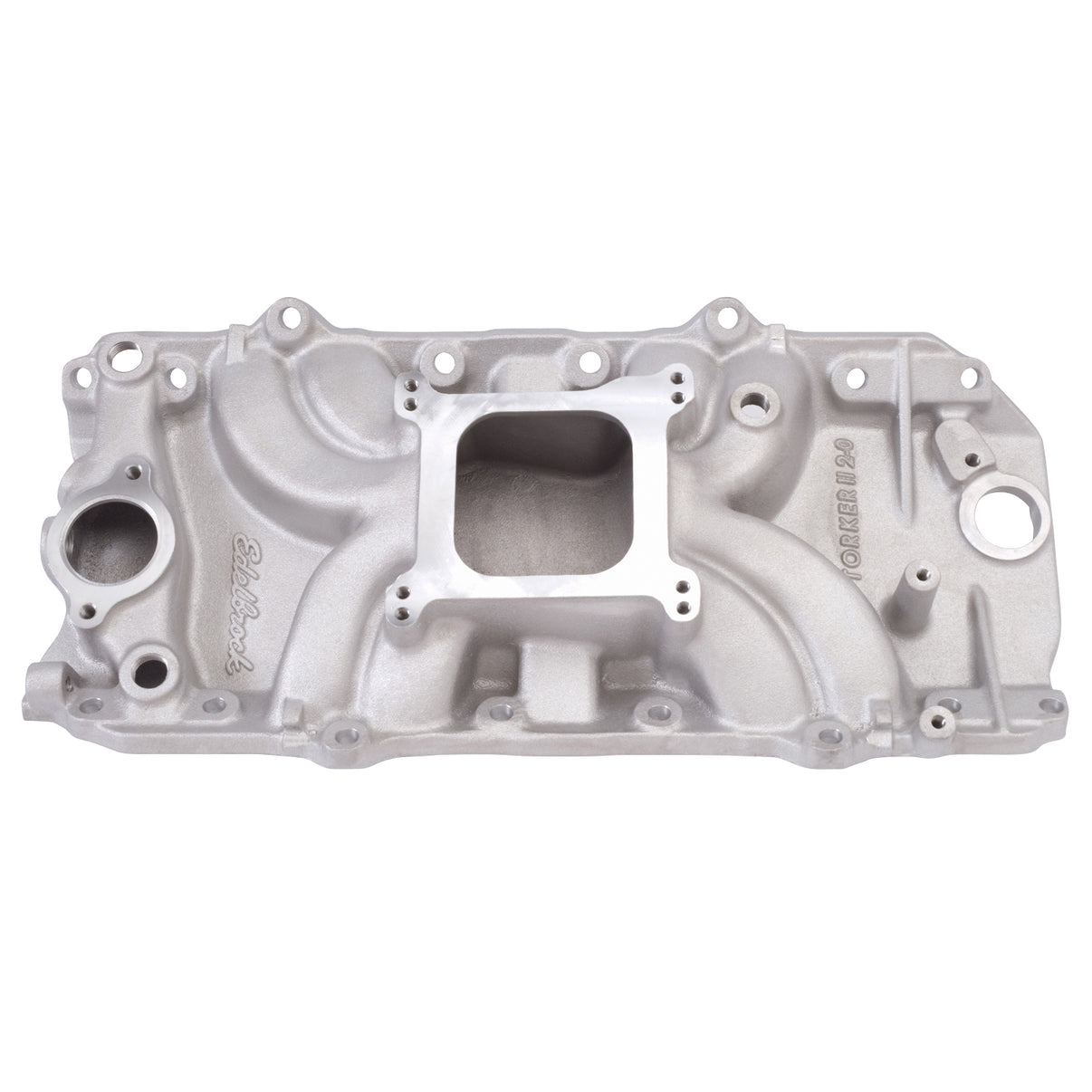

Edelbrock Edelbrock Torker II 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8 5061
Specifications:
| Basic Operating RPM Range | 2500-6500 |
| Single Or Dual Plane Type | Single |
| Center Maximum Height | 3.820 |
| EGR Port | No |
| Series | Torker/Torker II |
| Vehicle Model | Chevrolet |
| Material | Aluminum |
| Grade Type | Performance |
| Rear Maximum Height | 4.600 |
| Flange Type | 4150 |
| CNC Ported | No |
| Color | Satin |
| Front Maximum Height | 3.050 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included | No |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_ABR | Intake Mnfld |
| Description_INV | Torker 2 BBC Oval Port Intake Manifold |
| Description_LAB | Torker II 2-O Big Block Chevy Intake Manifold |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_EXT | Edelbrock Torker II 2-O Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_MKT | Edelbrock part #5061 Torker II 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier). Manifold not equipped with EGR. Will not fit "tall block" V8 engines. The Torker II 2-O intake manifold is a singe plane low rise intake that's great for high performance applications that have limited hood clearance. The manifold has an exhaust crossover for easy cold weather warm-ups, but no provisions for exhaust heated chokes or EGR. Customers will need either electric or manual choke carburetors. Not for heavy vehicles (trucks, vans etc.) |
| Description_MKT | use Performer 2-O #2161. |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Manifold height: A-3.050", B-4.600" (.25" taller than stock Corvette) |
| Description_TRA | Carb pad height: 3.82" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA | Port exit dimensions: 1.35" x 1.90"/1.60" x 1.90" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_DEF | Engine Intake Manifold |
