Edelbrock Edelbrock Super Victor 440 Intake Manifold for Chrysler 413-426-440 Big-Block V8 2891
Specifications:
| Material | Aluminum |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 6.400 |
| Grade Type | Performance |
| Rear Maximum Height | 6.400 |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Center Maximum Height | 6.400 |
| Vehicle Model | Chrysler |
| EGR Port | No |
| Gasket Or Seal Included | No |
| Flange Type | 4500 |
| Series | Victor |
| Basic Operating RPM Range | 3500-8000 |
| Description_ABR | Intake Mnfld |
| Description_INV | Super Victor Chrysler 440 Dominator |
| Description_LAB | Super Victor Chrysler 440 Intake Manifold |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_EXT | Edelbrock Super Victor 440 Intake Manifold for Chrysler 413-426-440 Big-Block V8 |

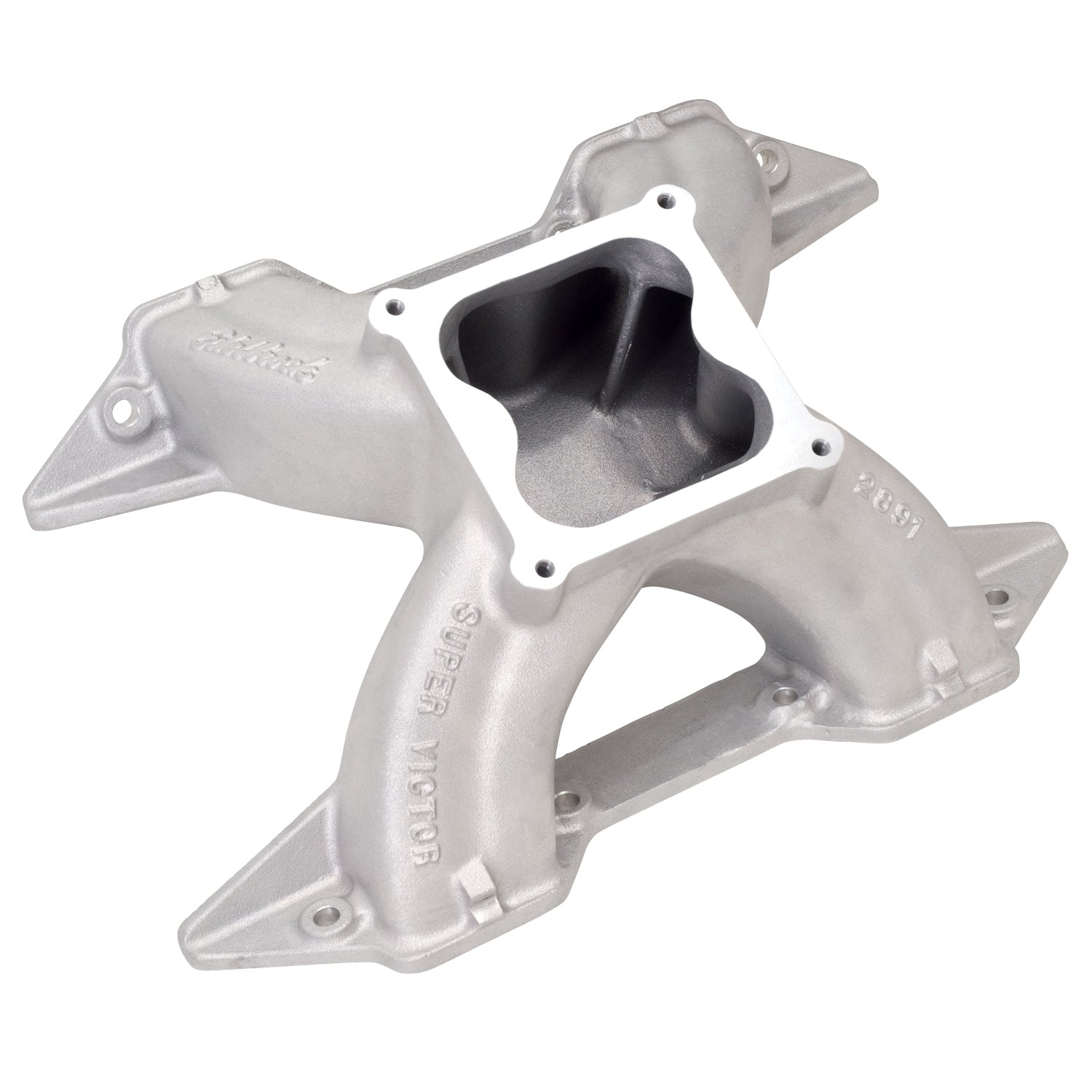

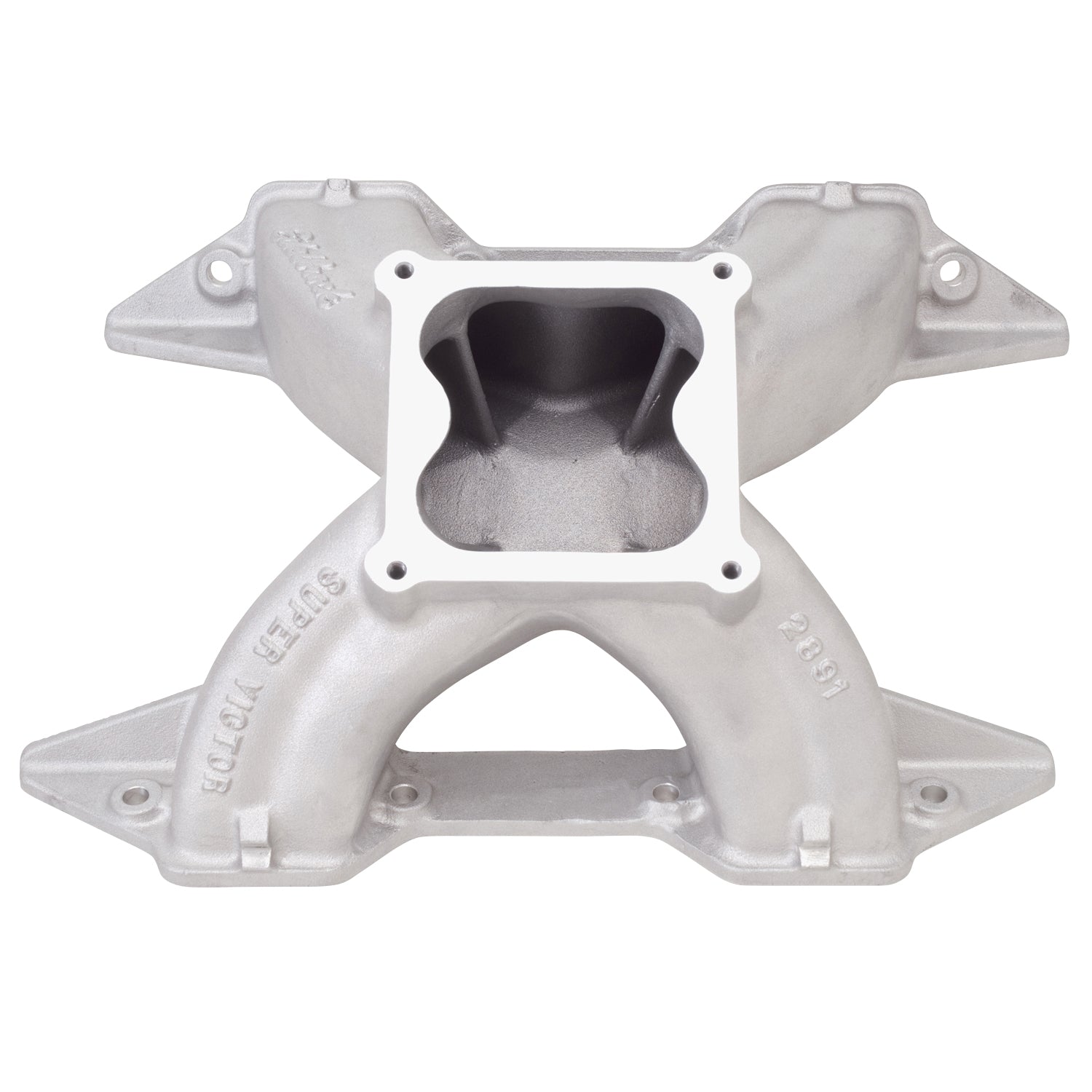

| Description_MKT | Edelbrock part #2891 Super Victor 440 intake manifold is designed for 413-440-500+ RB with standard or Max Wedge heads and 4500 Series carburetors. For competition and high-rpm Chrysler V8's, the Super Victor 440 has an all-new runner design that delivers maximum power from 3500 to 8000 rpm in drag race applications. This intake manifold features standard 440 port exit sizes 1.13" x 2.17" to match with Edelbrock Victor 440 aluminum cylinder heads #77919 or #77929. Edelbrock part #7798 valley cover is required when used with Edelbrock Victor Series cylinder heads |
| Description_TRA | Recommended intake gasket: Fel-Pro #1216 or equivalent 1.23" x 2.27", for an area of 2.76 sq. inches. Custom gasket trimming is needed if larger area is desired. |
| Description_TRA | Carb recommendations: Use appropriate 4500 Series racing carburetor |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
