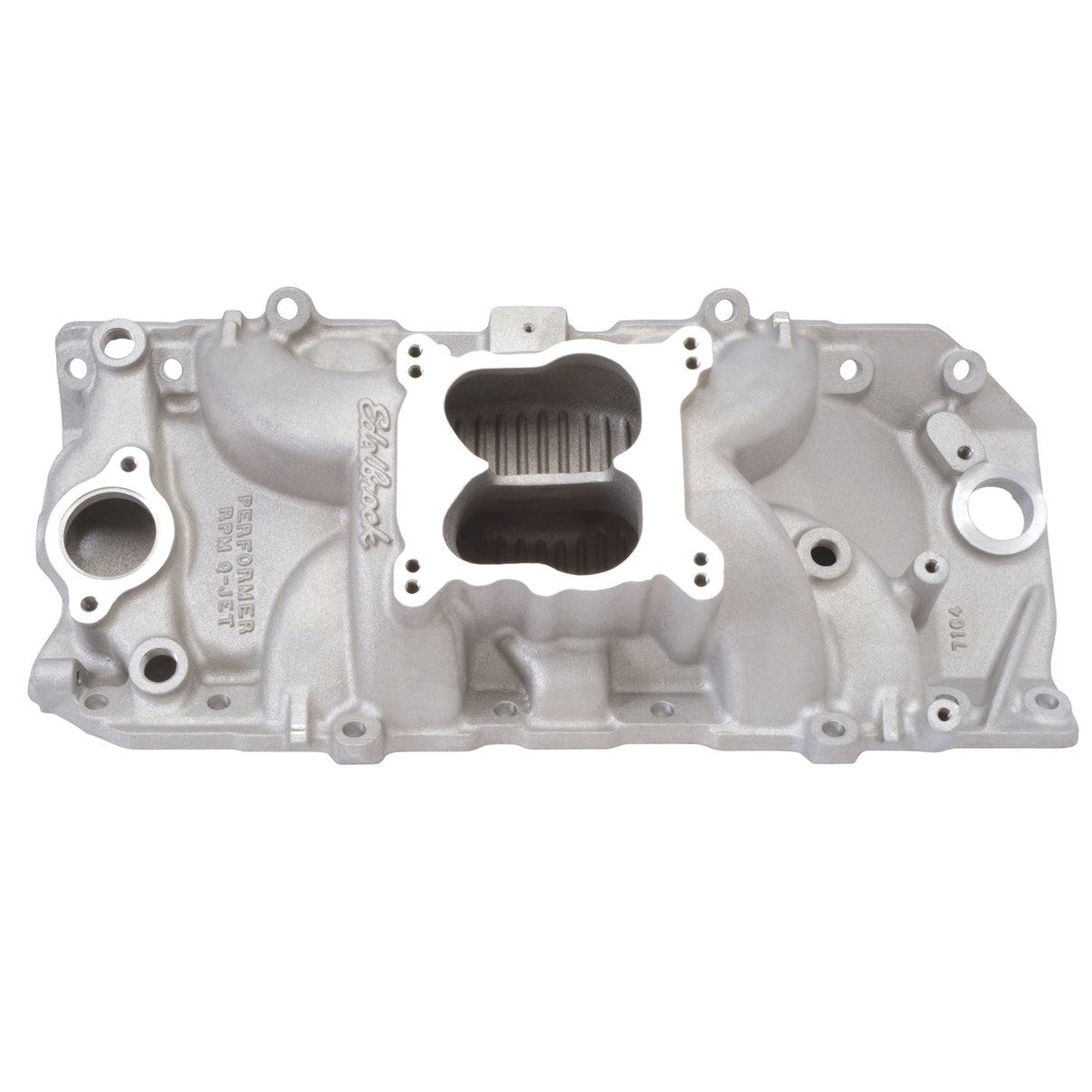

Edelbrock Edelbrock Performer RPM Q-Jet Intake Manifold for Chevrolet 396-502 Big-Block V8 7164
Specifications:
| Material | Aluminum |
| Finish | Satin |
| Flange Type | 4150 |
| Vehicle Model | Chevrolet |
| Basic Operating RPM Range | 1500-6500 |
| EGR Port | No - For Oval Port |
| CNC Ported | No |
| Gasket Or Seal Included | No |
| Center Maximum Height | 5.220 |
| Grade Type | Performance |
| Single Or Dual Plane Type | Dual |
| Front Maximum Height | 4.450 |
| Rear Maximum Height | 6.000 |
| Series | Performer RPM |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Description_ABR | Intake Mnfld |
| Description_INV | Performer RPM BBC Q-Jet Oval Port Intake |
| Description_LAB | Performer RPM Big Block Chevy Oval Port Q-Jet Intake Manifold |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_EXT | Edelbrock Performer RPM Q-Jet Intake Manifold for Chevrolet 396-502 Big-Block V8 |
| Description_MKT | Edelbrock part #7164 Performer RPM Q-Jet intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port (1975 and earlier) heads. This intake manifold is designed works with spread-bore carbs, but also works with Edelbrock square-bore carbs without adapter. No provisions for hot air style chokes. Accepts divorced choke, late-model waterneck, air-conditioning, alternator and HEI equipment. |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Manifold height: A-4.45", B-6.0" |
| Description_TRA | Carb pad height: 5.22" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 for 1972-78. |
| Description_TRA | Port exit dimensions: 1.60"w x 1.94"t. |
| Description_TRA | Will not fit under stock hood of Corvette, 1964-67 Chevelle, or 1967-81 Camaro. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
