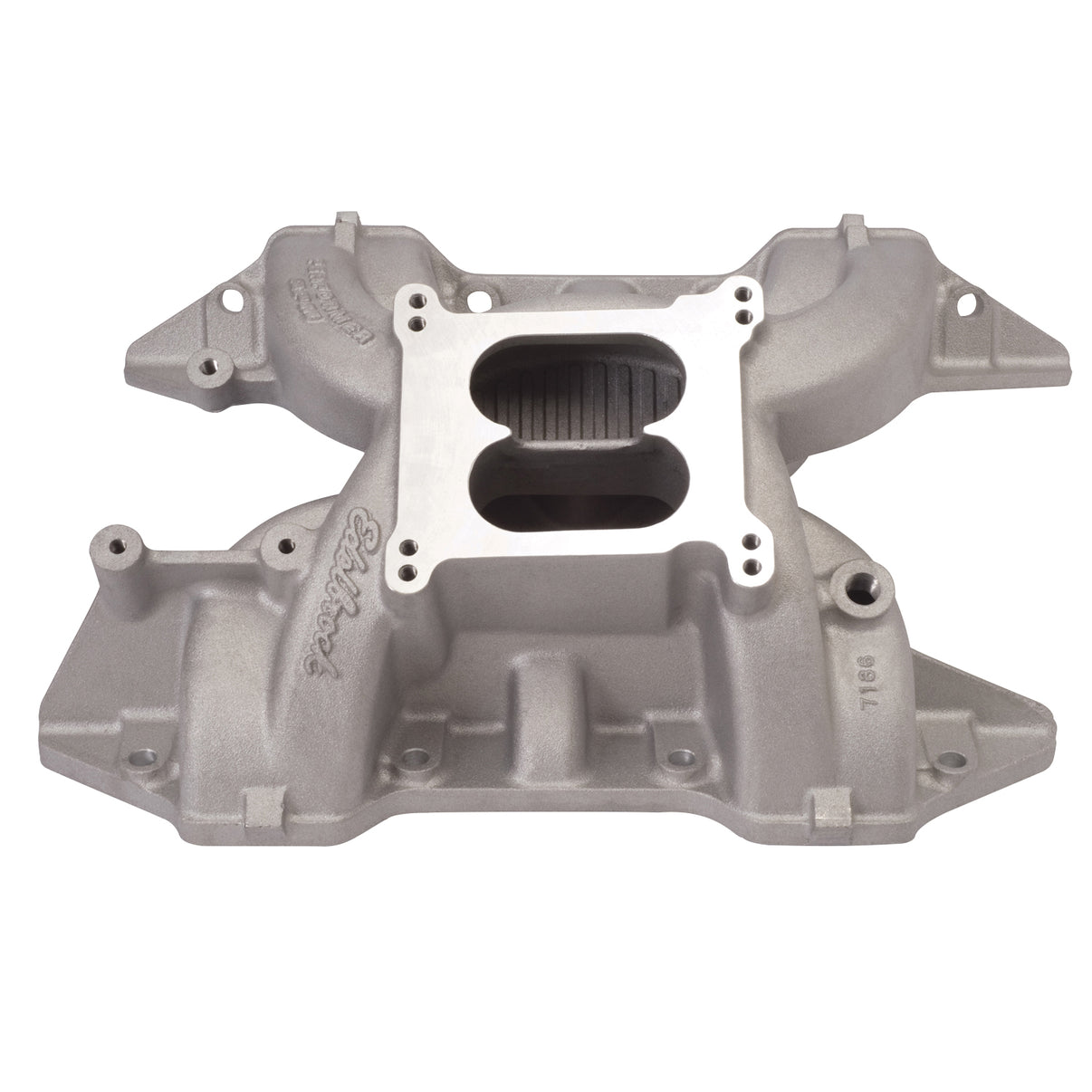

Edelbrock Edelbrock Performer RPM Intake Manifold for Chrysler 361-383-400 Big-Block V8 7186
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Gasket Or Seal Included | No |
| Front Maximum Height | 4.900 |
| Basic Operating RPM Range | 1500-6500 |
| Grade Type | Performance |
| Center Maximum Height | 5.350 |
| Rear Maximum Height | 5.800 |
| CNC Ported | No |
| Material | Aluminum |
| Flange Type | 4150 |
| Vehicle Model | Chrysler |
| Finish | Satin |
| EGR Port | No |
| Description_ABR | Intake Mnfld |
| Description_INV | Performer RPM 383 Chrysler Intake |
| Description_LAB | Performer RPM Big Block Chrysler B Intake Manifold |
| Description_EXT | Edelbrock Performer RPM Intake Manifold for Chrysler 361-383-400 Big-Block V8 |
| Description_MKT | Edelbrock part #7186 Performer RPM 383 intake manifold is designed for 361-383-400 c.i.d. Chryslers. The dual-plane design results in excellent low-end torque and high rpm power. High flow runner design will handle the popular stroker combinations. For high-performance street/strip applications. Will not fit 1962-64 Max Wedge heads. |
| Description_TRA | Recommended intake gasket: Edelbrock #7225 |
| Description_TRA | Manifold height.: A-4.90", B-5.80" |
| Description_TRA | Carb pad height: 5.35" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Port exit dimensions: 1.13" x 2.13" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
