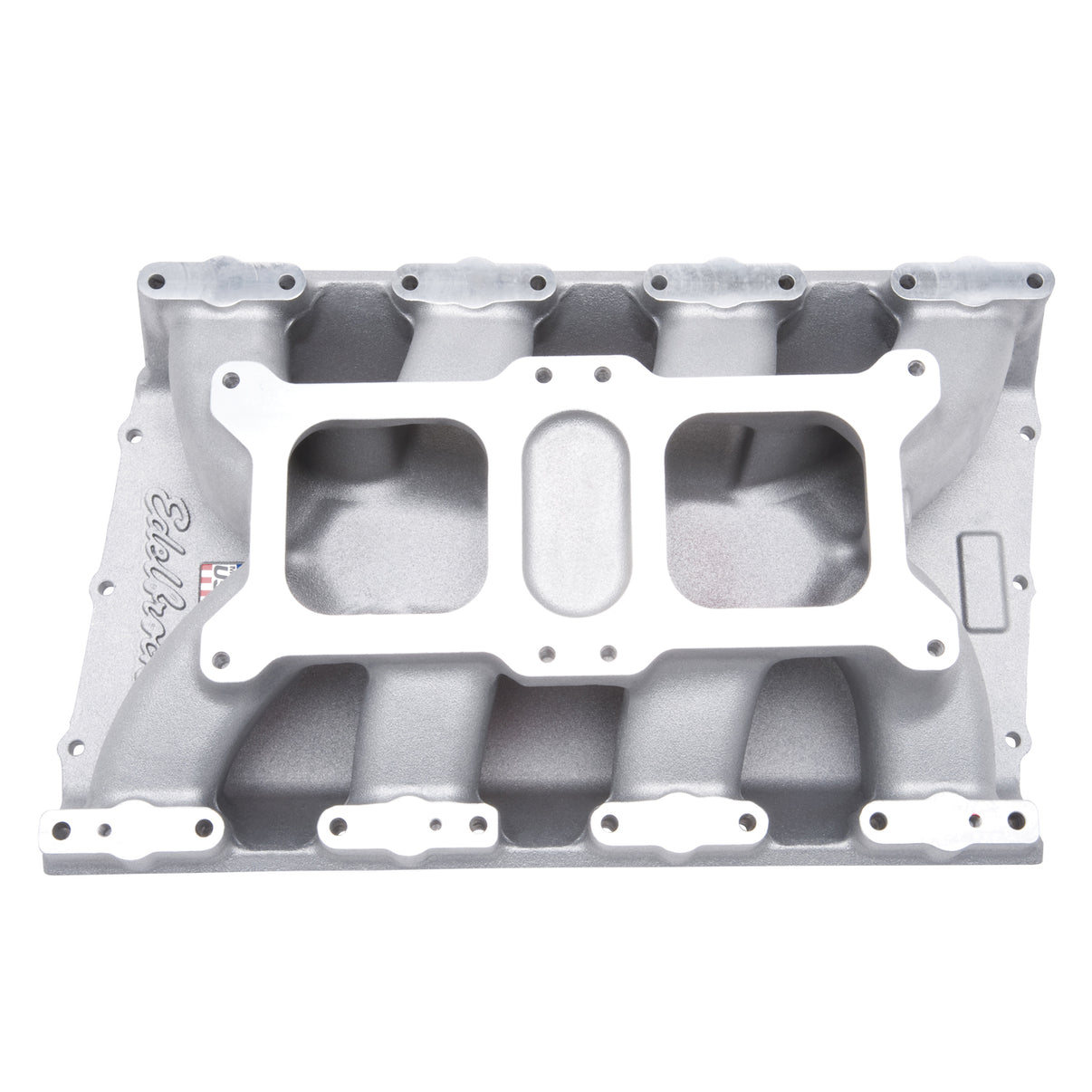

Edelbrock Edelbrock Dual-Quad Chrysler Gen II 426-572 HEMI Carbureted Intake Manifold 7524
Specifications:
| Gasket Or Seal Included | No |
| Flange Type | 4150 Dual-Quad |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height | 5.100 |
| Vehicle Model | Chrysler |
| Finish | Satin |
| Front Maximum Height | 4.680 |
| EGR Port | No |
| Series | Dual-Quad/Multi Carb |
| Grade Type | Performance |
| Rear Maximum Height | 5.510 |
| CNC Ported | No |
| Material | Aluminum |
| Basic Operating RPM Range | 2500-6500 |
| Single Or Dual Plane Type | Single |
| Description_ABR | Intake Mnfld |
| Description_INV | RPM Dual Quad Air-Gap Gen 3 Hemi Intake |
| Description_LAB | Dual-Quad Chrysler Hemi Gen II Carbureted Intake Manifold |
| Description_ASM | Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L) |
| Description_EXT | Edelbrock Dual-Quad Chrysler Gen II 426-572 HEMI Carbureted Intake Manifold |
| Description_MKT | Edelbrock part #7524 Dual-Quad HEMI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style carburetor pad. Carburetor spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. They also retain the same carburetor linkage location from the factory. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils. |
| Description_TRA | Recommended intake gasket: Edelbrock #7278 |
| Description_TRA | Manifold height: A-4.68", B-5.51" |
| Description_TRA | Carb pad height: 5.10" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 with progressive linkage #7094 |
| Description_TRA | Port exit dimensions: 1.80" x 1.98" |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
