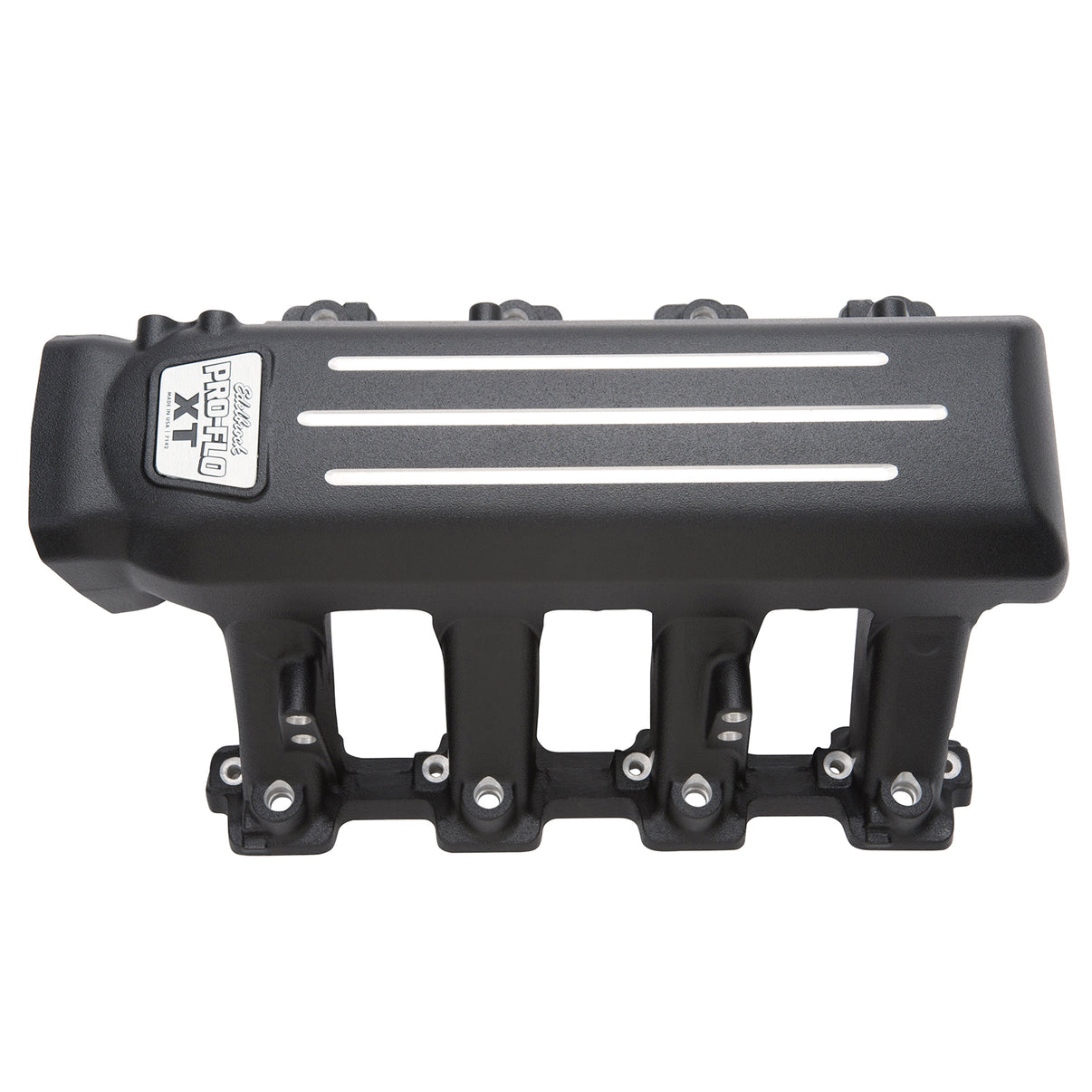

Edelbrock Edelbrock Black Pro Flo LS3 Intake Manifold GM LS Engines 7142
Specifications:
| Series | Pro-Flo XT |
| Material | Aluminum |
| Front Maximum Height | 9.280 |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Rear Maximum Height | 9.680 |
| EGR Port | No |
| Flange Type | Throttle Body XT |
| Gasket Or Seal Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Vehicle Model | Chevrolet |
| Center Maximum Height | 9.680 |
| CNC Ported | No |
| Basic Operating RPM Range | 1500-7000 |
| Description_ABR | Intake Mnfld |
| Description_INV | Black Pro Flo XT LS3 Intake Manifold |
| Description_LAB | Black Pro Flo Small Block Chevy LS3 Intake Manifold |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L77:364 (6.0L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_EXT | Edelbrock Black Pro Flo LS3 Intake Manifold GM LS Engines |
| Description_MKT | Edelbrock part #7142 Pro Flo XT LS3 intake manifold is designed for use on GM LS3 engines. This manifold will accept late model LS Drive-By-Wire throttle bodies or Edelbrock 90mm mechanical throttle body and is offered in a black powder coat finish. This manifold is not intended to be a direct replacement for late model vehicle applications due to hood/cowl clearance and emissions incompatibility. |
| Description_TRA | Uses LS3/ L92/L76 style individual port o-ring seals GM #19256623 or Edelbrock #7395. |
| Description_TRA | Throttle body recommendations: Edelbrock #3869, #38693 or OEM drive-by-wire style. |
| Description_TRA | Manifold Dimensions: A-9.28", B-9.68", C-17.40", D-3.02", E-15 Deg . |
| Description_TRA | Port exit dimensions: 1.23" x 2.52". |
| Description_TRA | Recommended Fuel Rail Kit Edelbrock #3648 Designed for use with standard injectors measure 2.50" from the o-ring center to o-ring enter. Compact injectors measure 1.50" from the o-ring center to o-ring enter. Ends are tapped for use with -8 AN fittings. |
| Description_DEF | Engine Intake Manifold |
