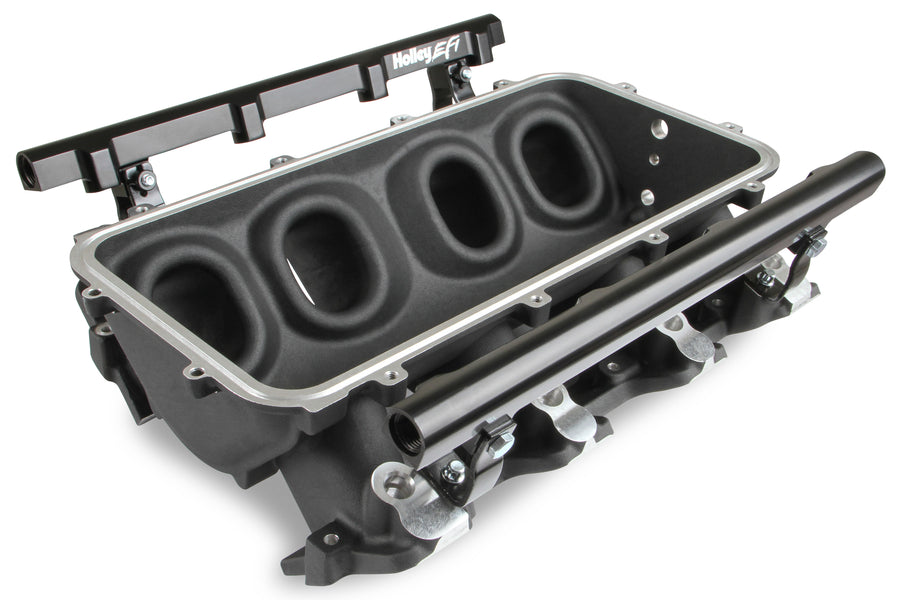

Holley EFI Black Finish with Single Injector manifold and fuel rails 300-600BK
Specifications:
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Intake Manifolds |
| 9063 | No |
| 17 | Black |
| 158 | Cast |
| 5337 | Cathedral |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Flange Style | N/A |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Quantity | Single |
| Inlet Location | Top |
| 10651 | No |
| Manifold Type | Lo-Ram |
| 10 | Aluminum |
| 10648 | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold Base |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Throttle Body Bore Diameter | N/A |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Intake Manifolds |
| 9063 | No |
| 17 | Black |
| 158 | Cast |
| 5337 | Cathedral |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Flange Style | N/A |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | Yes |
| 3390 | Performance |
| Injector Quantity | Single |
| Inlet Location | Top |
| 10651 | No |
| Manifold Type | Lo-Ram |
| 10 | Aluminum |
| 10648 | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold Base |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Throttle Body Bore Diameter | N/A |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | BASE IM FUEL |
| Description_SHO | BASE MANIFOLD AND |
| Description_INV | BASE IM & FUEL RAILS, LS1 LO-RAM, BLACK |
| Description_DES | Base Manifold and Rail Kit for Lo-Ram - LS1/LS2/LS6 |
| Description_EXT | Black Finish with Single Injector manifold and fuel rails |
| Description_MKT | The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. |
| Description_MKT | The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. |
| Description_MKT | The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. |
| Description_MKT | The 300-600BK is the lower manifold in the 300-620BK complete kit. Offering this separately allows you to select your components individually as you build your system. |
| Description_FAB | High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN) |
| Description_FAB | Low height to aid the use of a plenum mounted air-to-water intercooler in a top-feed configuration |
| Description_FAB | Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application |
| Description_FAB | Base manifold and rail kit for Low-Ram 300-620BK allows you to select your components individually as you build your intake system |
| Description_FAB | Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads |
