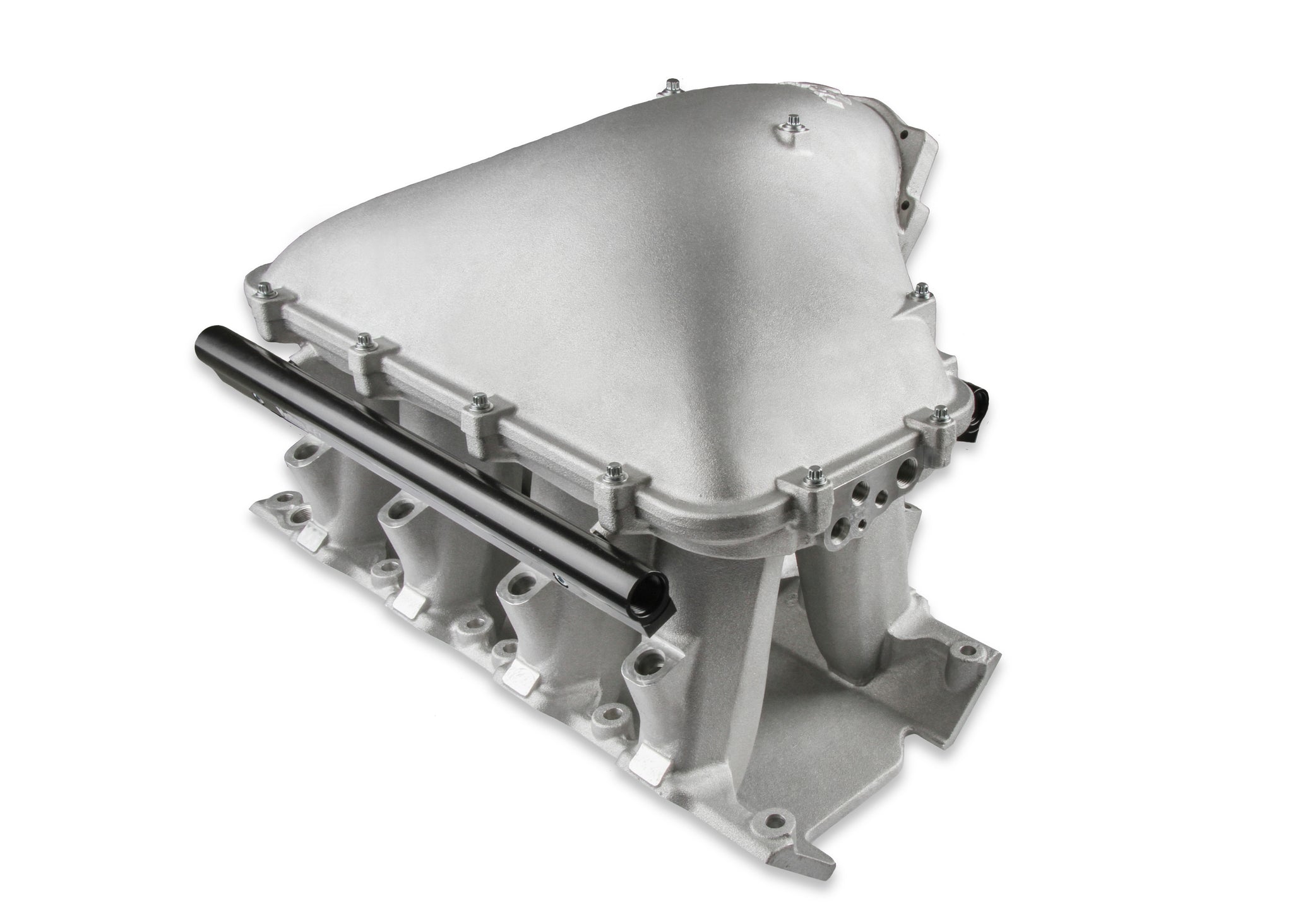

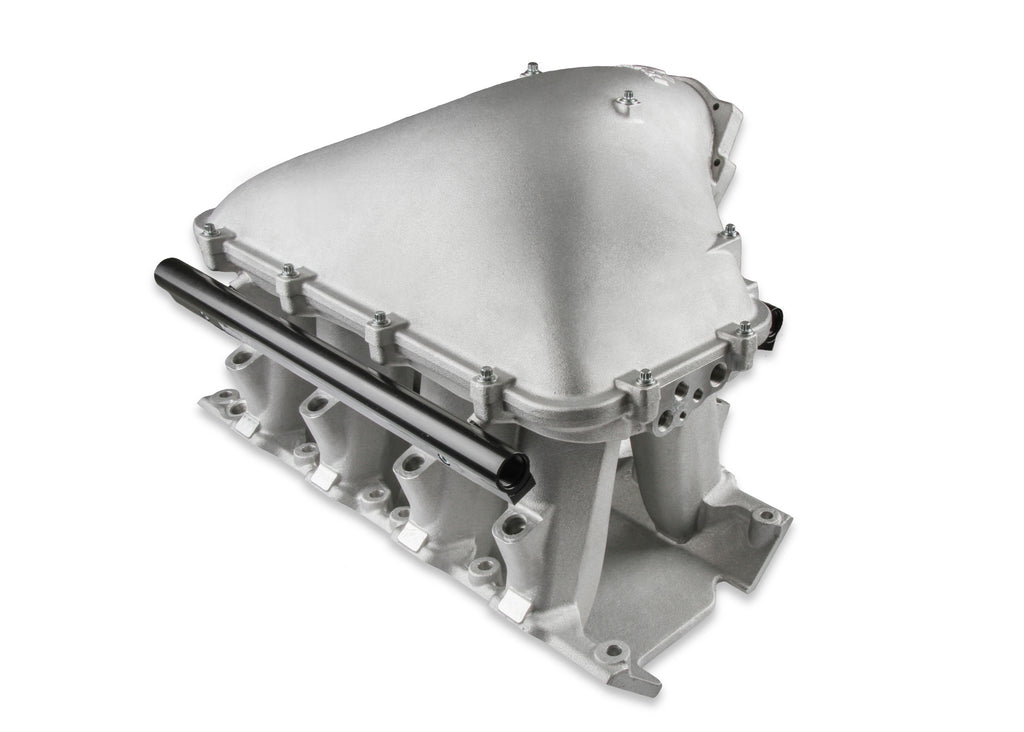

Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-308
Specifications:
| Basic Operating RPM Range | 1500-7000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Engine |
| 9063 | No |
| Color | Natural |
| 158 | Cast |
| 5337 | Rectangle |
| 6621 | 8.2 |
| 8095 | No |
| Emission Code | 3 |
| Engine | Ford Small Block |
| Flange Style | EFI |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | No |
| 3390 | Performance |
| 10651 | No |
| Manifold Type | Hi-Ram |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 105 MM |

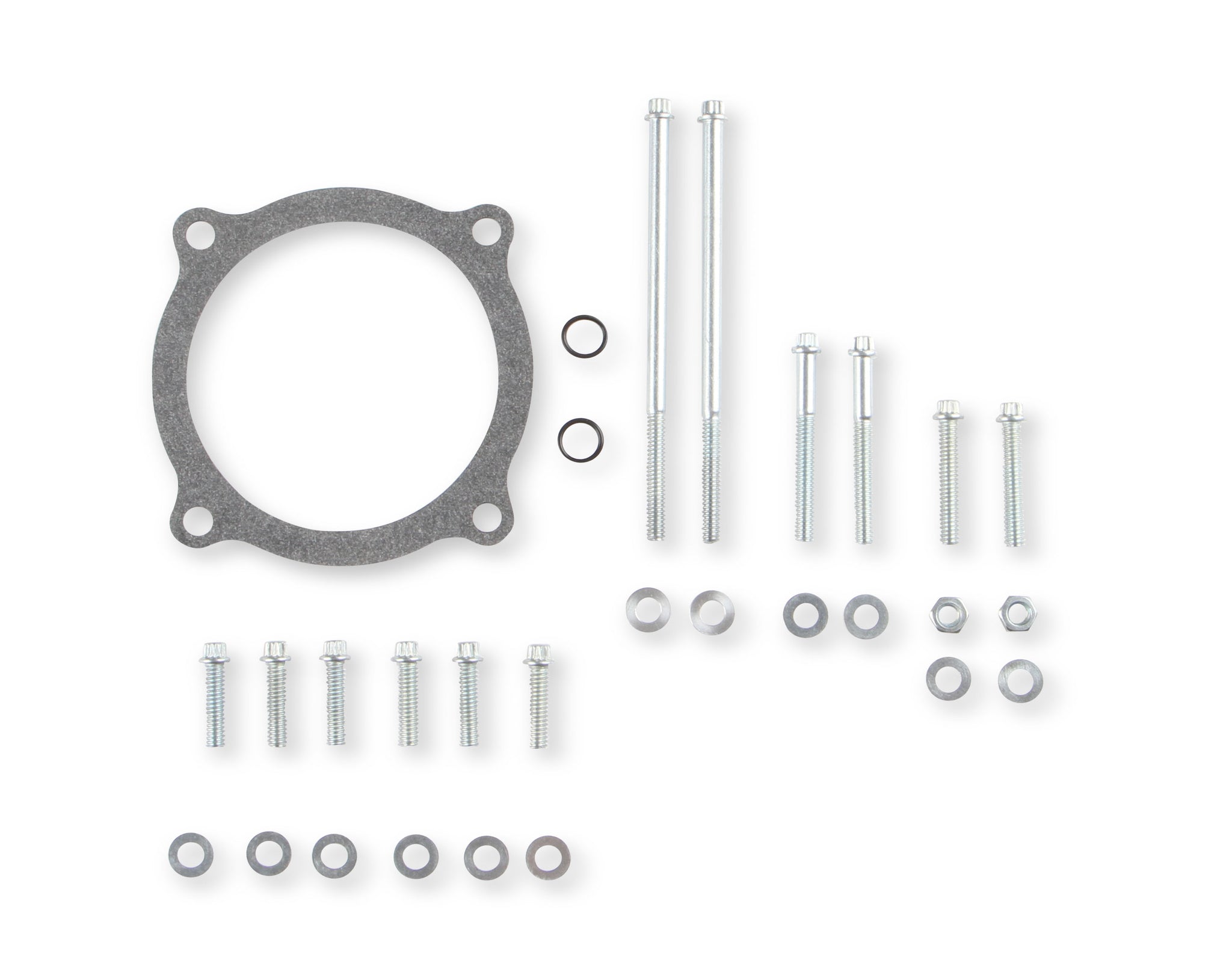

| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 105mm |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range | 1500-7000 |
| Brand | Holley EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Carburetor Studs Included | N/A |
| Category | Engine |
| 9063 | No |
| Color | Natural |
| 158 | Cast |
| 5337 | Rectangle |
| 6621 | 8.2 |
| 8095 | No |
| Emission Code | 3 |
| Engine | Ford Small Block |
| Flange Style | EFI |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | No |
| 3390 | Performance |
| 10651 | No |
| Manifold Type | Hi-Ram |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 105mm |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | MFLD KIT FOR |
| Description_SHO | 8.2" SBF FORD HI-RAM |
| Description_INV | MFLD KIT, FORD 302W HI-RAM 105MM SIDE |

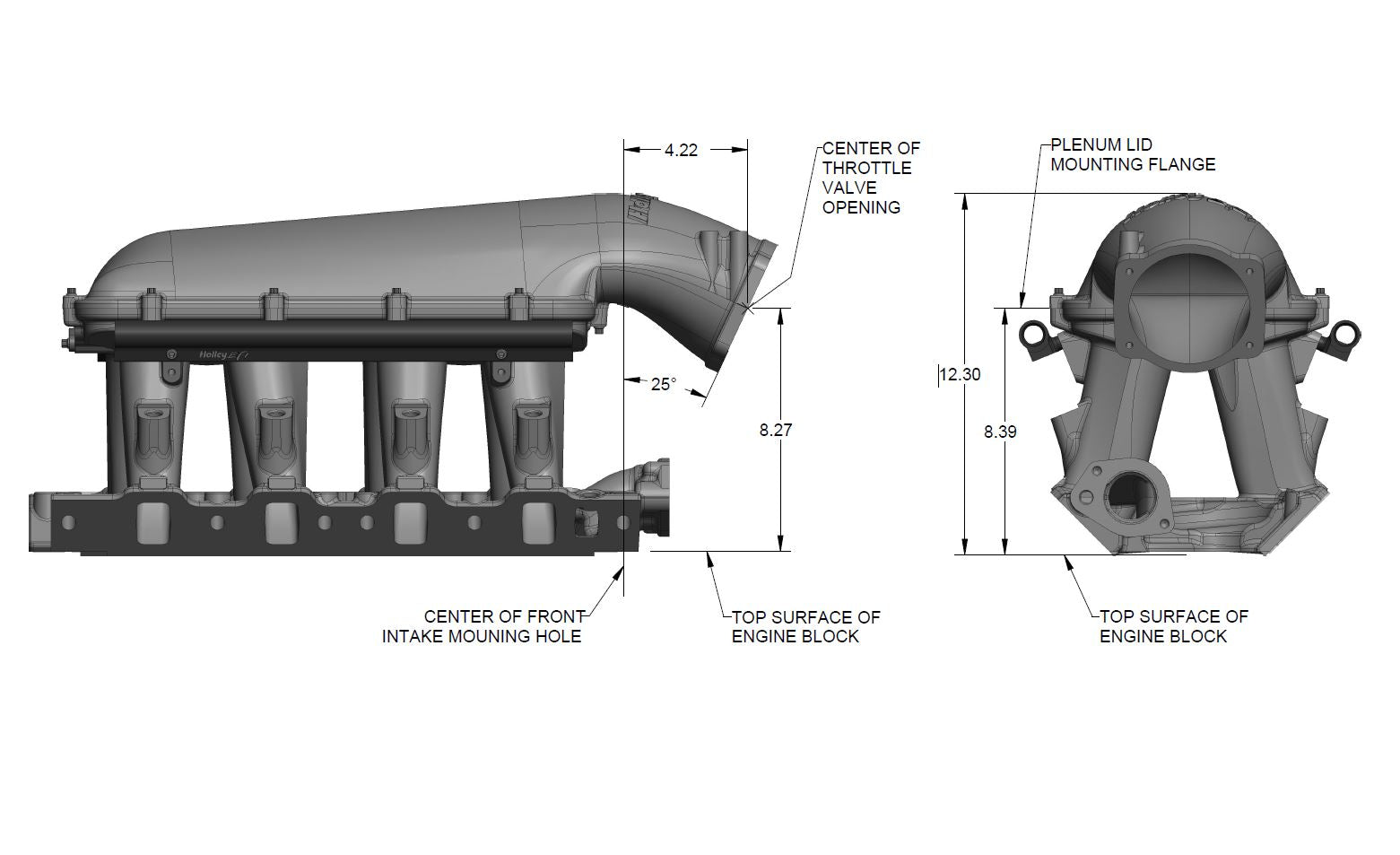

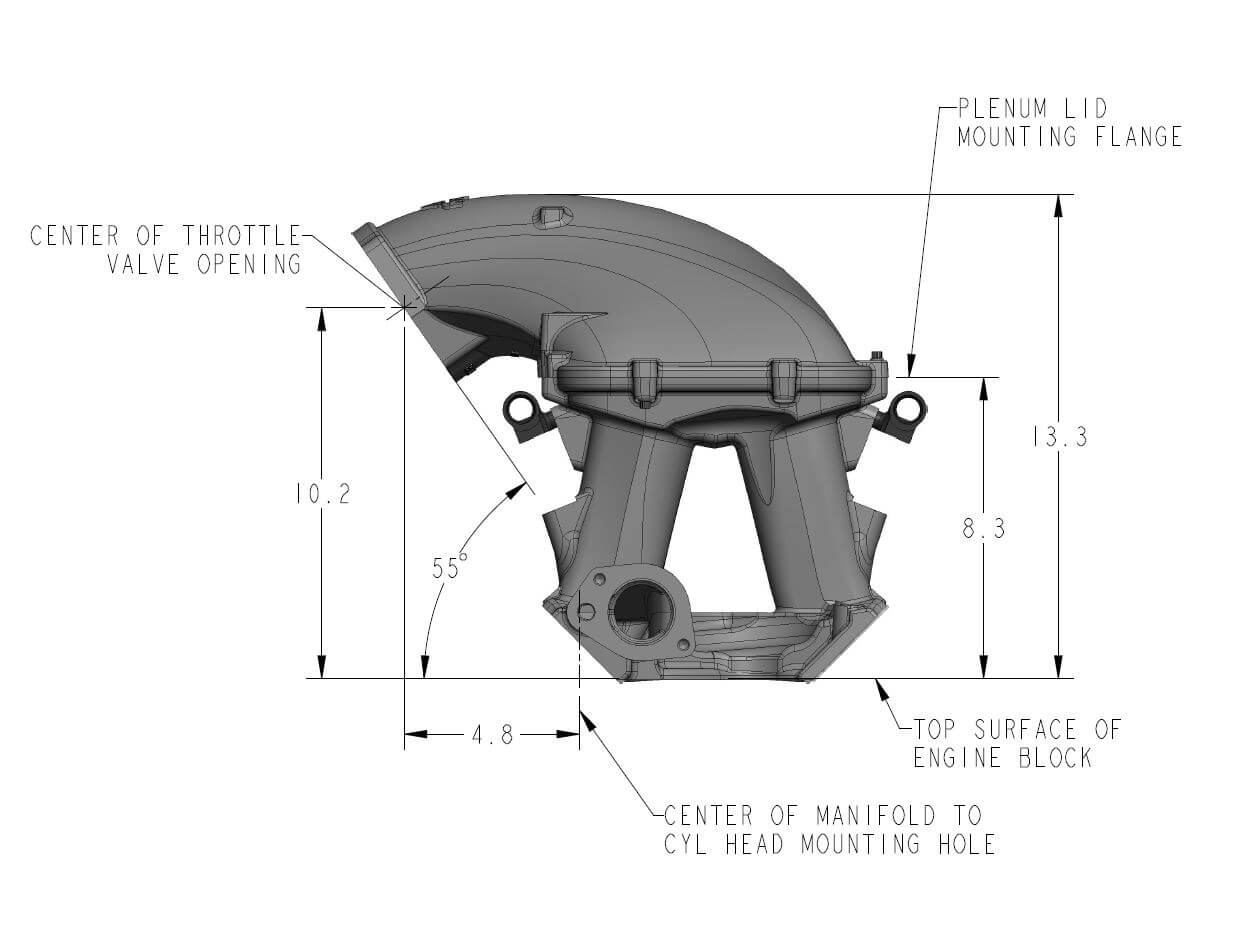

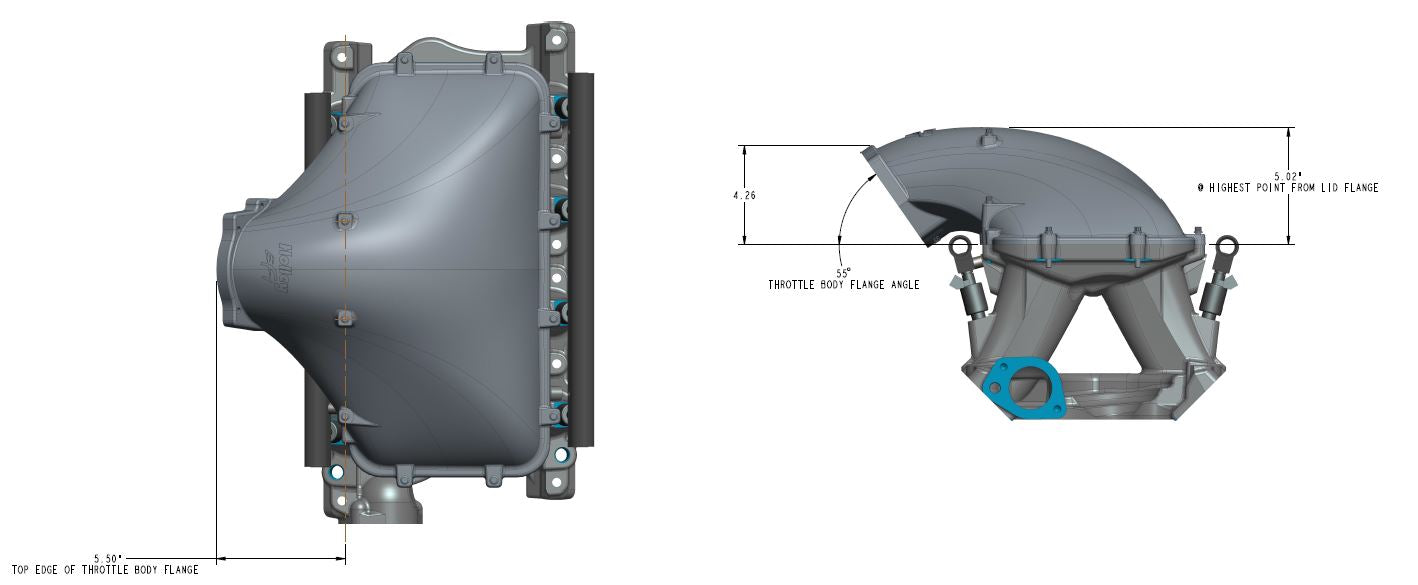

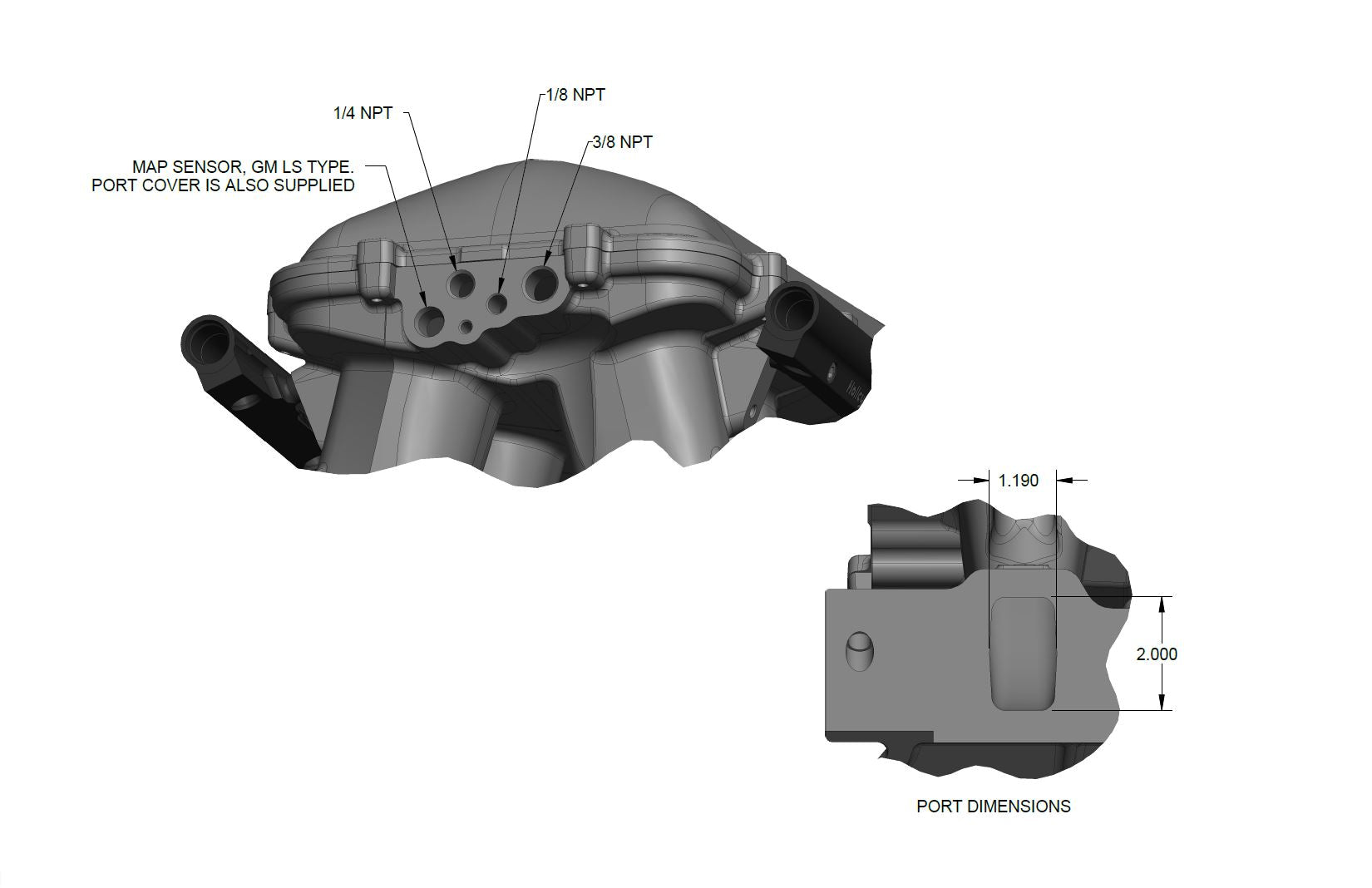

| Description_ASC | *** Please see the diagrams in the product images for other dimensions.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.Warning:Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core. |
| Description_DES | 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top |

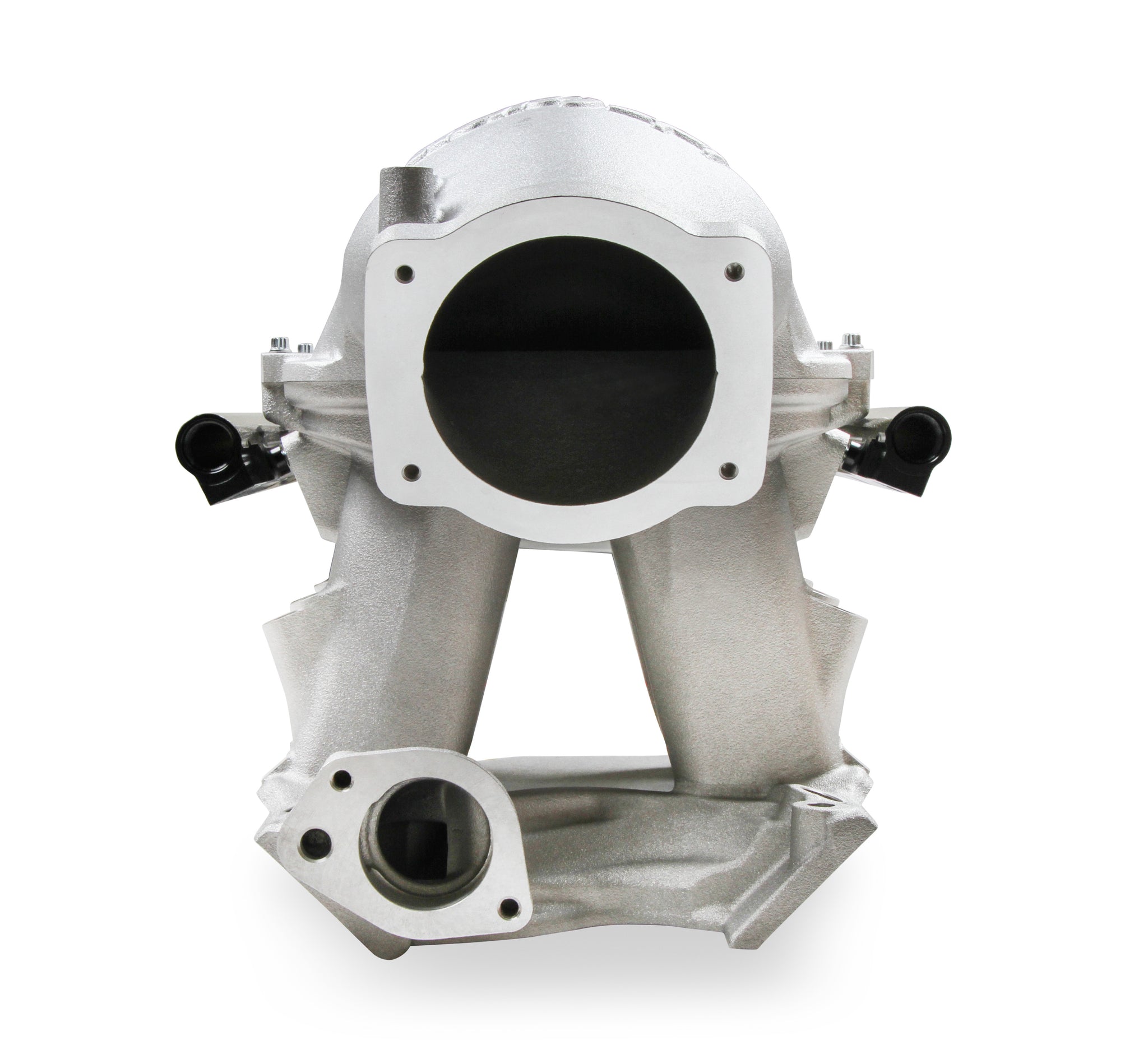

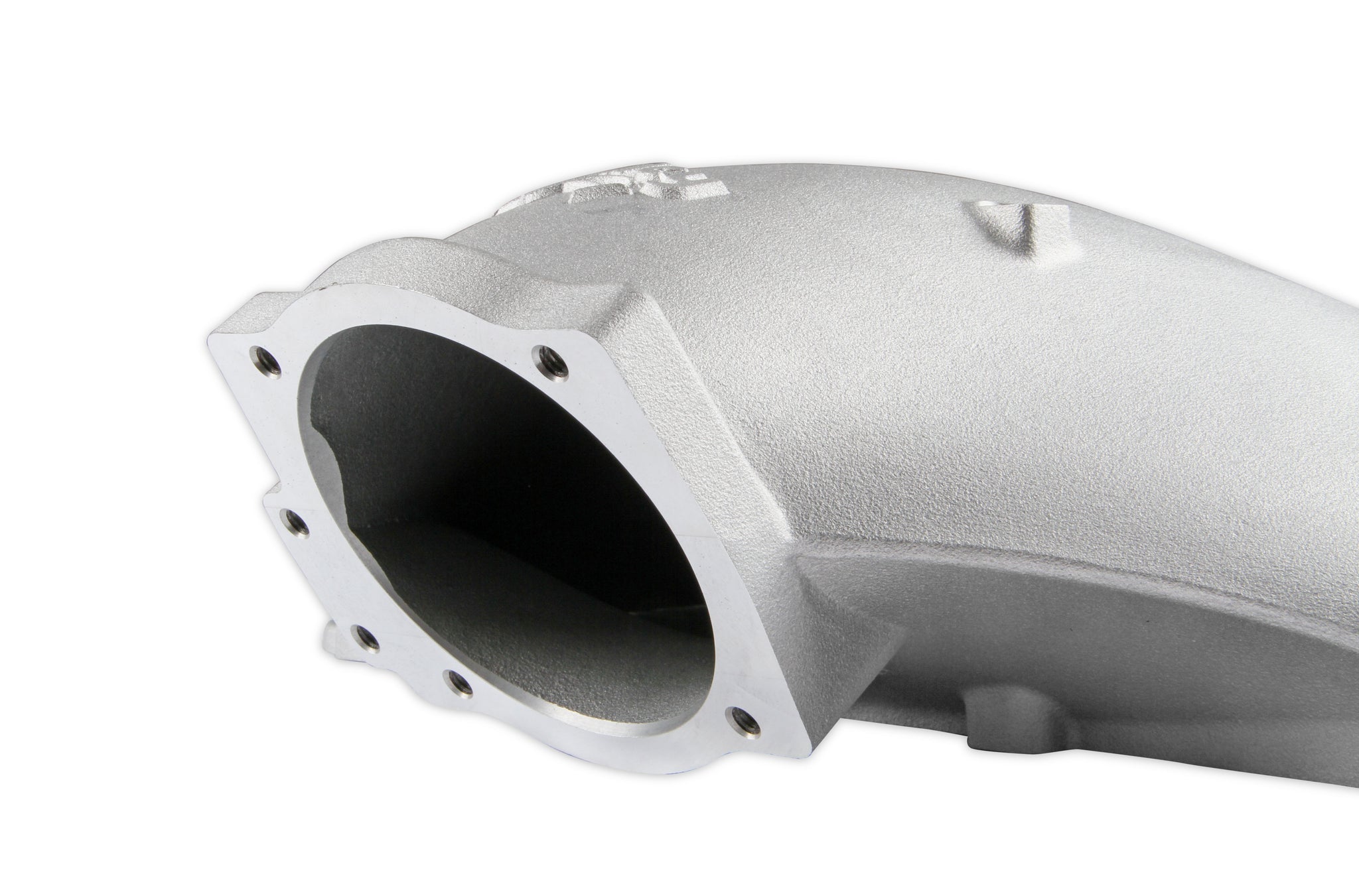

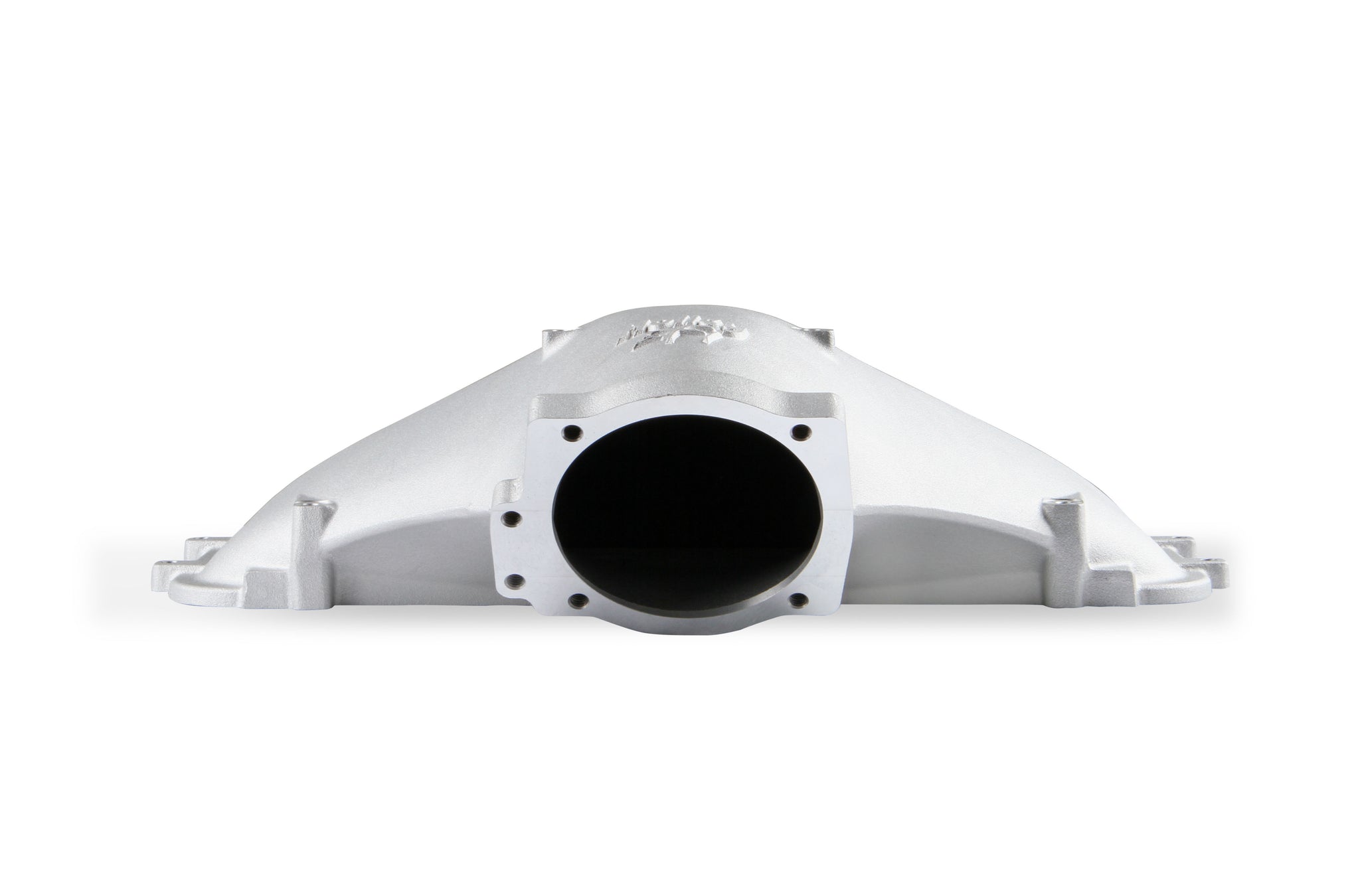

| Description_EXT | 8.2" SBF Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top. |
| Description_MKT | • Cast aluminum construction. |
| Description_MKT | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_MKT | *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. |

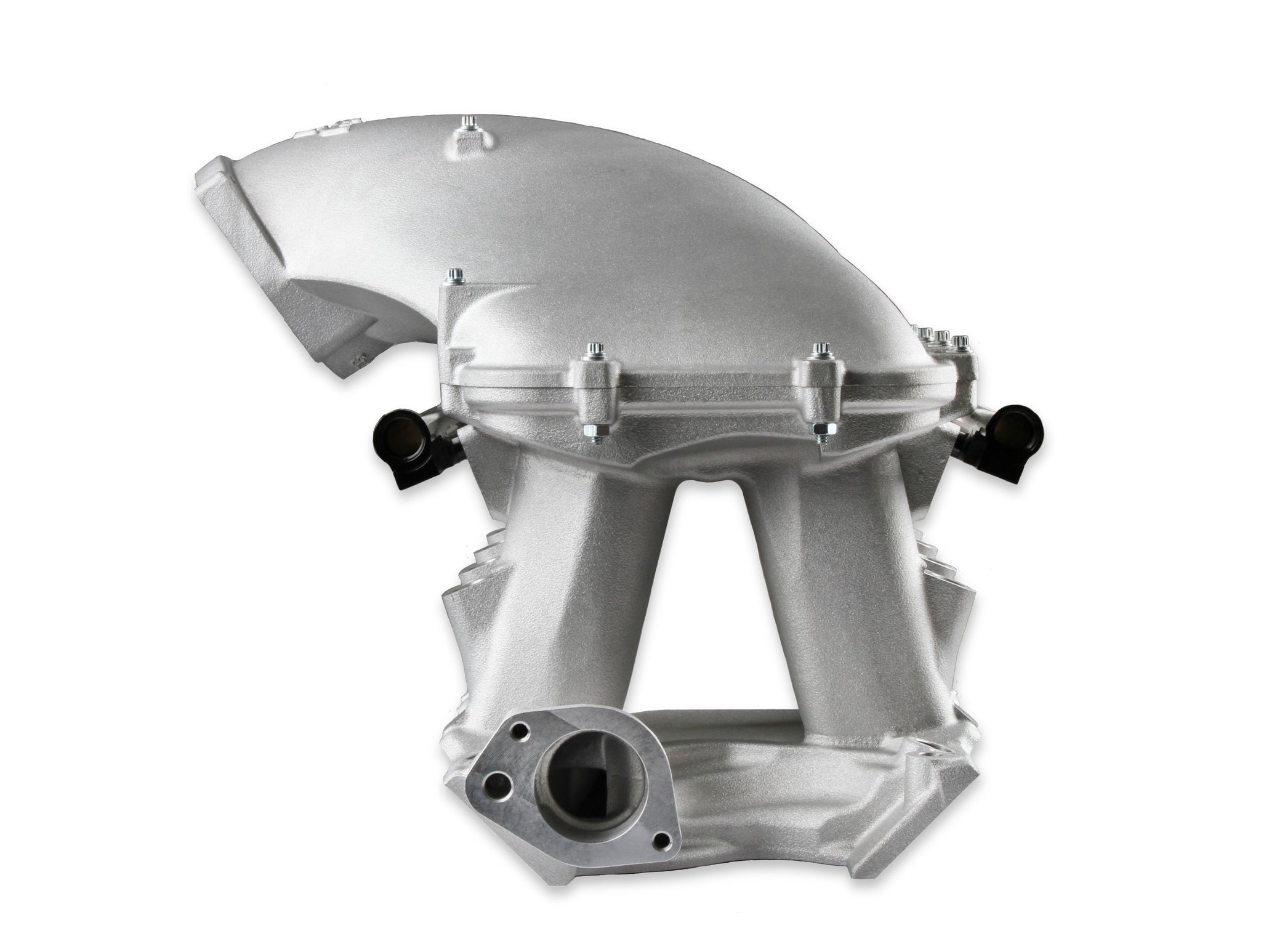

| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_MKT | Manifold is designed for a 8.2" deck height. |
| Description_MKT | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_FAB | Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB | The 8.2 SBF manifold is available to work with 105MM throttle bodies |
| Description_FAB | Designed for side mounted throttle bodies |
| Description_FAB | Ford 5.0 throttle body fitment |
| Description_FAB | Allows room for designing boosted applications |
| Description_FAB | Manifold is designed for a 8.2" SBF deck height. |
| Description_FAB | Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations. |
| Description_FAB | EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_ABR | MFLD KIT FOR |
| Description_SHO | 8.2" SBF FORD HI-RAM |
| Description_INV | MFLD KIT, FORD 302W HI-RAM 105MM SIDE |
| Description_ASC | *** Please see the diagrams in the product images for other dimensions.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.Warning:Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core. |
| Description_DES | 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top |
| Description_EXT | 8.2" SBF Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top. |
| Description_MKT | • Cast aluminum construction. |
| Description_MKT | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_MKT | *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_MKT | Manifold is designed for a 8.2" deck height. |
| Description_MKT | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_FAB | Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB | The 8.2 SBF manifold is available to work with 105MM throttle bodies |
| Description_FAB | Designed for side mounted throttle bodies |
| Description_FAB | Ford 5.0 throttle body fitment |
| Description_FAB | Allows room for designing boosted applications |
| Description_FAB | Manifold is designed for a 8.2" SBF deck height. |
| Description_FAB | Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations. |
| Description_FAB | EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
