Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. The stock-design collector of these headers allows them to bolt directly to your Chevy LS's exhaust system to bolt up, and they have provisions for EGR and NON-EGR engines. This model was tested, then issued an E.O. (Executive Order) Number by the California Air Resources Board (C.A.R.B.), making them 50 state legal for use on the vehicles listed on E.O.#D167-31.
These uncoated, EO Replacement headers are Hedman's best selling late model Chevy truck headers. They fit a wide range of early to 1999-2006 2WD and 4WD Chevy/GMC Trucks and SUVs, powered by a 4.8L, 5.3L or 6.0L Chevy LS engine. Included in this header's long list of applications is 1999-2006 Chevy/GMC 1/2 to 1 Ton 2WD and 4WD Silverado, Sierra, Yukon, Tahoe, Escalade, Suburban and Hummer H2 (check the application listings for exact fitment). The smooth 1-5/8 in. tubular design provides ample exhaust flow to let your truck's LS motor breathe easy, and produce significatnly more horsepower and torque, while maintaining street legal status.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
ach set includes a pair of header gaskets, collector gaskets, header flange bolts and collector bolts.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

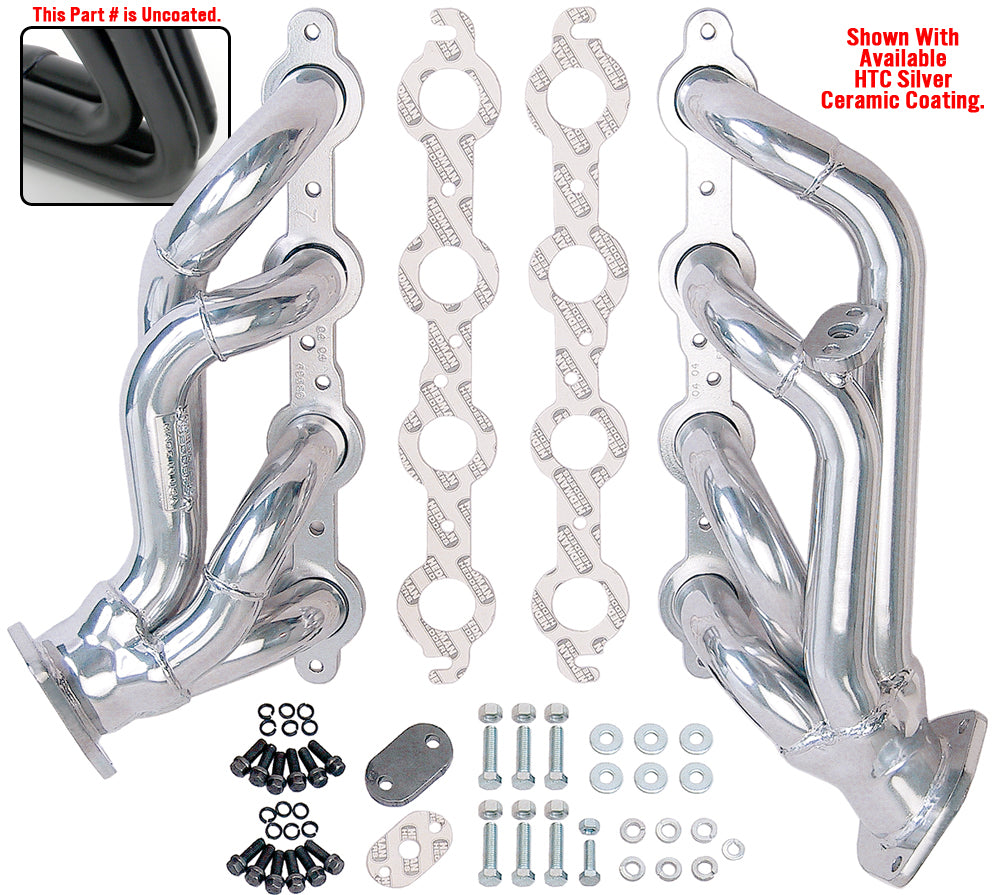

Hedman Hedders Short E.O. Headers for '99-07 GM 2WD-4WD Truck/SUV with LS Engine 69690
Specifications:
| Description_DEF | [B@81e1098 |
| Description_DES | [B@42cd10d |
| Description_EXT | [B@1efedd8e |
| Description_FAB | [B@42d66fd4 |
| Description_FAB | [B@3a343dc6 |
| Description_FAB | [B@58f23734 |
| Description_FAB | [B@30889309 |
| Description_FAB | [B@4151e203 |
| Description_FAB | [B@5a902de2 |
| Description_INV | [B@1392ea13 |
| Description_MKT | [B@677633b3 |
| Description_SHO | [B@297984a4 |
| Package Contents | Set of Headers, mounting hardware and gaskets |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Diameter | 1-5/8 in. |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | No |
| Tube Size | 1-5/8 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 14g |
| Primary Tube Diameter (in) | 1.625 in. |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Round |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27470 |
| Replacement Head Flange Gasket | 27470 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Variations | 69696 |
| Tube Material Thickness | 14g |
| Tube Style | Shorty |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Length | Short Tubes |
| Flange Thickness | 0.375 in. |
| Footnotes | 223. Right & Left flat 3-bolt flange connector to stock Y-pipe. |
| Notes | 99-07 GM 1/2, 3/4, 1 Ton Truck/SUV 4.8-6.0L LS Series Engine |
| Emissions Notes | EO# D167-31 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Exhaust System Dia | Factory hookup |
| Reducer Outlet Size | Factory hookup |
| Contents | headers, gaskets (when applicable), mounting bolts |
| IMPORTANT! | Models without E.G.R. must use block-off plate. |
| Key Feature | Optional EGR incl. |
| Header Port Shape | Round |
| Port Shape | Round |
| Header Style | Short Tube |
| Flange Style | Standard |
| Collector Attachment | Stock |
| Collector Diameter | Stock |
| Collector Size | Stock |
| Collector Style | There are 2 factory Collector designs. INSPECT STOCK CONNECTION BEFORE ORDERING! |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| E.O. # | Yes |
| Power Steering | Yes |
