Edelbrock Carburetor 1308
Regular Price
$862.16
Press & drag to view

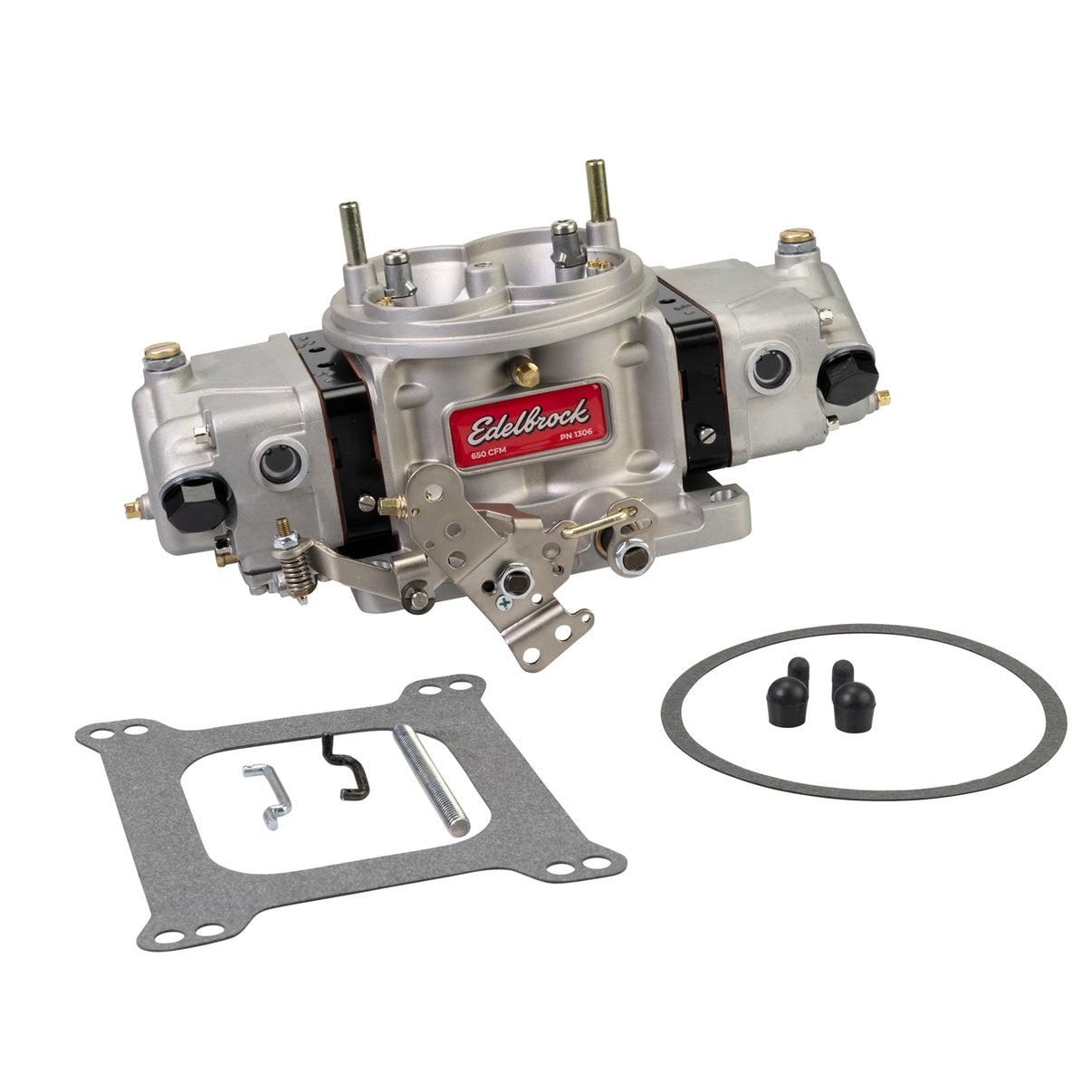

Edelbrock VRS-4150 Race & Performance Carburetor #1308 850 CFM is street friendly but race ready. The one-piece, cast aluminum body fits all 4150 and 4500 carb flange manifolds without requiring an adapter plate. A street throttle arm, Moly-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to this carburetor that are ideal for any user. Multiple vacuum hook-ups keep this carburetor usable on the street but still ready for the track with larger capacity fuel bowls and four circuit billet metering blocks with screw-in emulsion bleeds. All of these features make for easy tuning and great versatility in many applications. The 20% larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles. The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration. VRS carburetors allow users to externally adjust idle bypass air as the adjustment screws are accessible without removing the air cleaner/scoop. The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts. Normally found only in high end racing carbs, the VRS includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response. Finally, for greater control at high RPM, the high speed/main fuel circuit is split into two bleed circuits – one each for the lower and upper sections. As an additional feature, the power valves are located on both primaries and secondaries that support optimized jetting. The power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfires.
Edelbrock Carburetor 1308
Specifications:
| Secondary Power Valve | Yes |
| Gasket Or Seal Included | Yes |
| Maximum Flow Rating | 850 |
| EGR Port | N/A |
| Secondaries | Mechanical |
| Bore Diameter | 1.750 |
| Accel Pump Well Size | 50 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Booster Type | annular |
| Flange Shape | 4150 and 4500 |
| Condition | New |
| Intermediate Circuit | Yes |
| Metering Block | Billet- Four Circuit |
| Ported Timed Vacuum | Yes (3/16) |
| Series | VRS-4150 |
| Finish | Bead Blast |
| Primary Power Valve | Yes |
| Choke Type | N/A |
| Jet Extenders | Yes- Secondary Side |
| Main Venturi Diameter | 1.39 |
| Standard Vacuum | 2 - 3/8" dia. and 2- 3/16" dia |
| Material | Aluminum |
| Body Height | 3.75 |
| Barrel Quantity | 4 Barrel |
| Description_INV | VRS-4150 Carb 850 CFM #1308 |
| Description_LAB | VRS-4150 Carburetor 850 CFM #1308 |
| Description_EXT | Edelbrock VRS-4150 Race & Performance Carburetor #1308 is race ready with four circuit billet metering blocks for full tuning capability and street friendly with a universal fit throttle arm, vacuum fittings and provisions for a TPS sensor. |
| Description_MKT | Edelbrock VRS-4150 Race & Performance Carburetor #1308 850 CFM is street friendly but race ready. The one-piece, cast aluminum body fits all 4150 and 4500 carb flange manifolds without requiring an adapter plate. A street throttle arm, Moly-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to this carburetor that are ideal for any user. Multiple vacuum hook-ups keep this carburetor usable on the street but still ready for the track with larger capacity fuel bowls and four circuit billet metering blocks with screw-in emulsion bleeds. All of these features make for easy tuning and great versatility in many applications. The 20% larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles. The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration. VRS carburetors allow users to externally adjust idle bypass air as the adjustment screws are accessible without removing the air cleaner/scoop. The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts. Normally found only in high end racing carbs, the VRS includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response. Finally, for greater control at high RPM, the high speed/main fuel circuit is split into two bleed circuits – one each for the lower and upper sections. As an additional feature, the power valves are located on both primaries and secondaries that support optimized jetting. The power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfires. |
| Description_ABR | CARBATR |
| Description_DEF | Carburetor |
